Replacing the front bezel
To replace the front bezel:
1. Locate the hooks on the bottom of the front bezel and align these hooks with
the slots on the frame (B in Figure 23).
Note: Before proceeding, pivot the drive bay door D-loop handle completely to
the right, flush against the front of the drive bay door, to ensure that it
does not interfere with closing the front bezel.
2. Push inward on the side tabs (C in Figure 23) and insert one end and then the
other. Push gently on the bezel to close it, ensuring that the center tab (A)
locks into place.
B
A
C

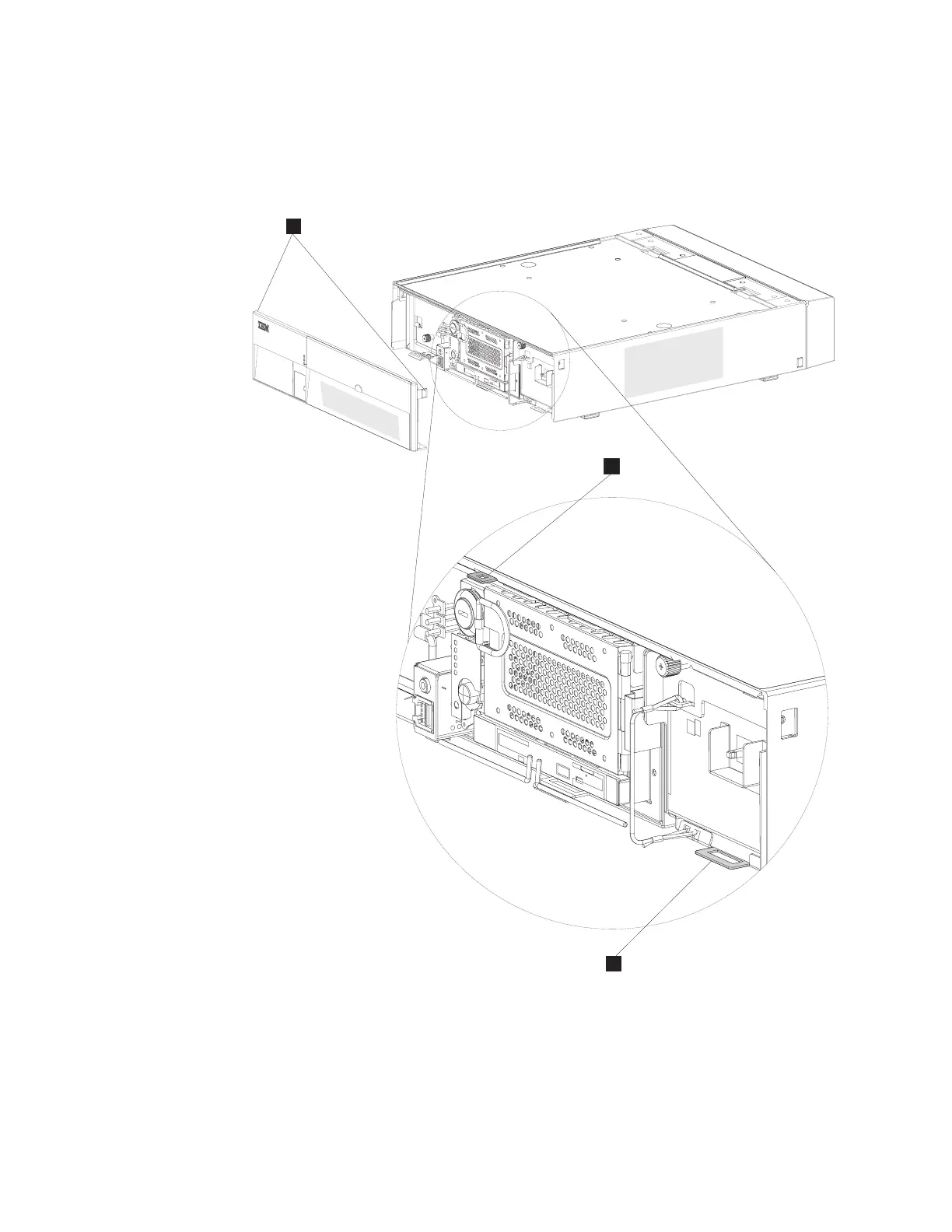

Figure 23. Placement of bezel
36 SurePOS 700-723/743/783/784 Hardware Service Guide
