Removing the pullout tray
Attention: Establish personal grounding before touching the unit. For more
information, see “Federal Communications Commission statement” on page 95.
To remove the pullout tray from the unit frame:
1. Follow the steps in “Removing the front bezel” on page 31 to remove the front
bezel.
2. Remove all cable attachments which will restrict removal of the pullout tray.
3. If necessary, unlock the keylock.
4. While holding the unit frame in place, grab the pullout tray handle (A), use
your thumb to lift the pullout tray lock tab (B), and pull firmly. The pullout tray
will slide out of the unit frame completely.
Note: Be sure to support the pullout tray, if you remove it completely.
To replace the pullout tray, insert the rear of the pullout tray into the front of the unit
frame and gently slide back until the pullout tray lock tab (B) locks into place.
Opening the drive bay door
Attention: Establish personal grounding before touching the unit. For more
information, see “Federal Communications Commission statement” on page 95.
To open the drive bay door:
1. Open the front bezel door.
2. If necessary, unlock the drive bay door (refer to "Operating the front lock or lock
plug" in the SurePOS 700 Series SurePOS 700-723/743/783/784 Systems,
Installation, and Operations Guide, GA27-4998.)
3. Pull on the blue drive bay door handle, to open the drive bay door.

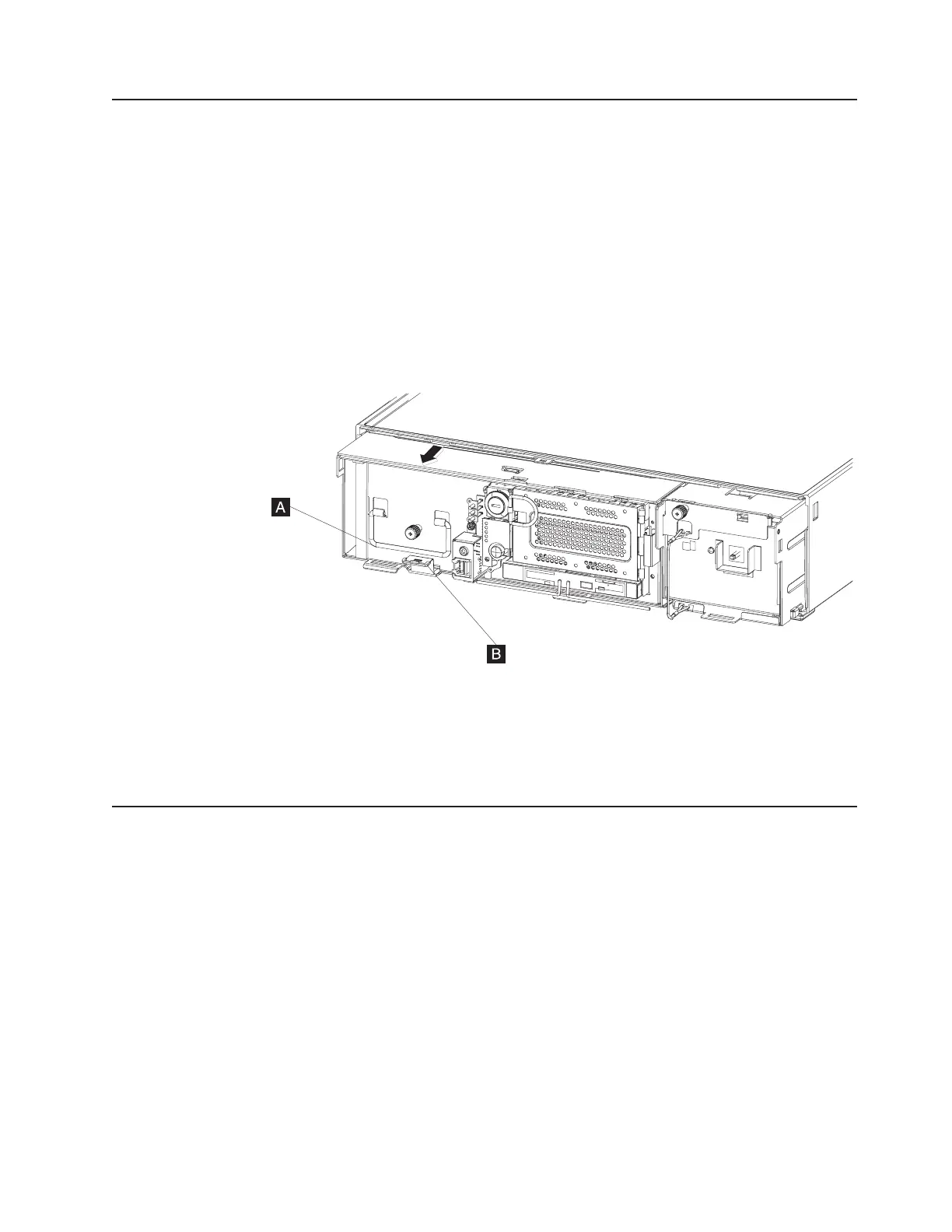

Figure 24. Removing the unit pullout tray from the unit frame
Chapter 2. Removal and replacement procedures 37
