9. Remove the PCI slot filler, if installed. Keep the filler in a safe place for
potential future use.

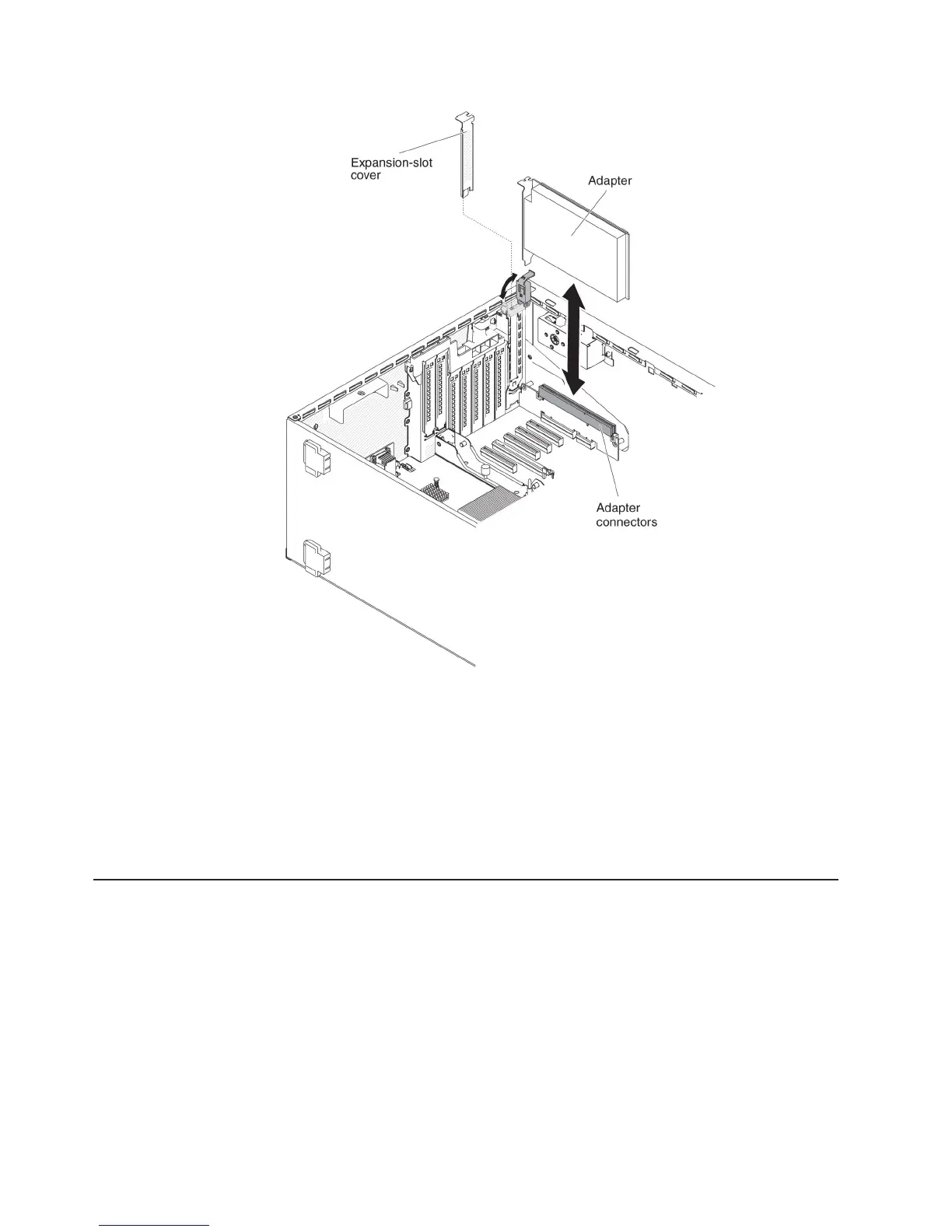

10. Press the adapter firmly into the expansion slot.
Attention: Incomplete insertion might cause damage to the system board or
the adapter.
11. Perform any configuration tasks that are required for the adapter.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 109.
Installing an optional ServeRAID adapter memory module
To install an optional ServeRAID adapter memory module, complete the following
steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 37.
2. Turn off the server and peripheral devices and disconnect the power cords.
3. Remove the cover (see “Removing the left-side cover” on page 60).
4. Locate the ServeRAID adapter which you will install the memory module.
Remove the ServeRAID adapter if necessary.
5. Touch the static-protective package that contains the memory card to any
unpainted metal surface on the server; then, remove the memory card from the
package.
90 IBM System x3500 M4 Type 7383: Installation and User’s Guide
