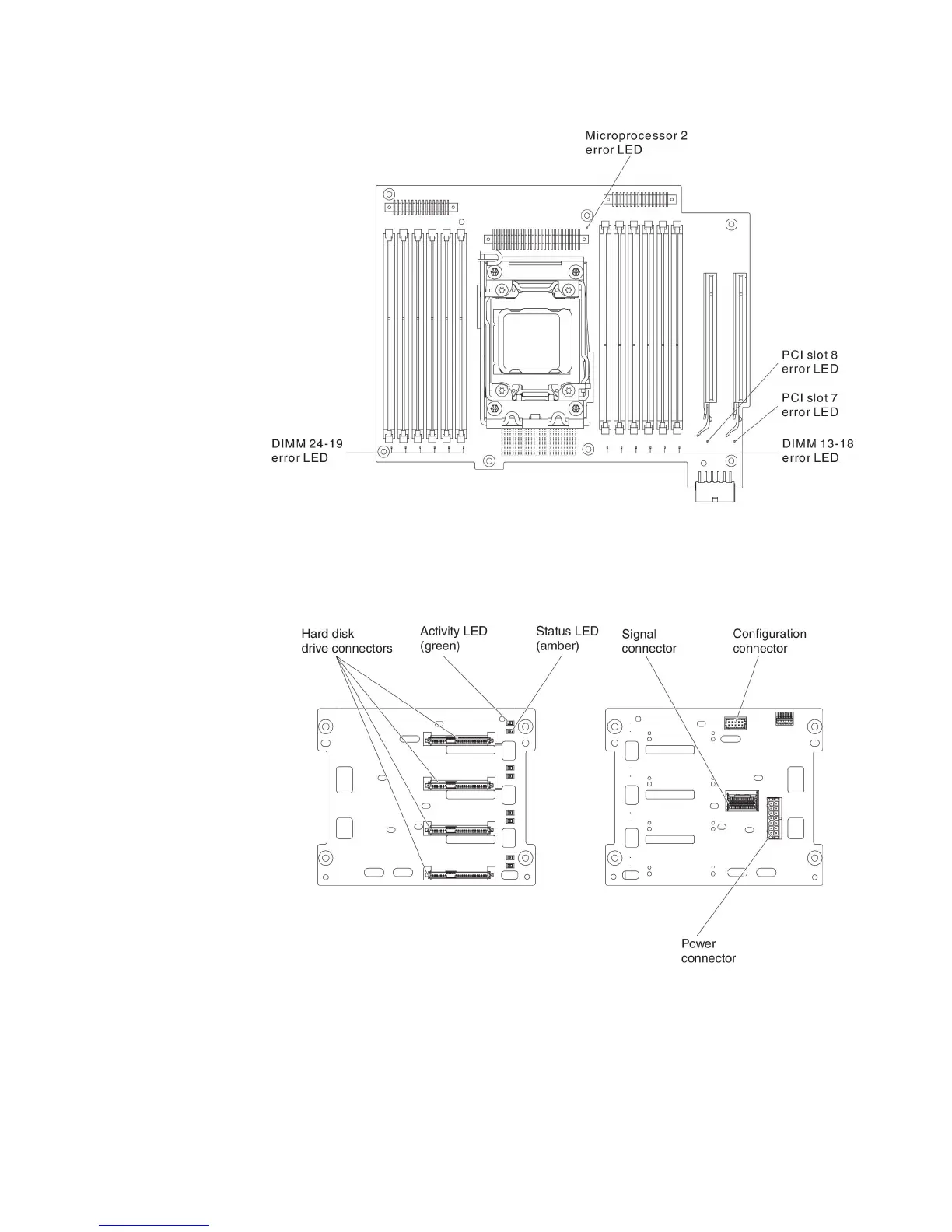

The following illustration shows the LEDs on the microprocessor 2 expansion board.
Hard disk drive backplane connectors
The following illustrations show the connectors on the 2.5-inch and 3.5-inch hard
disk drive backplanes and the backplate assembly.
Figure 1. Connectors on the 3.5-inch hard disk drive backplane
Chapter 2. Installing optional devices 35
