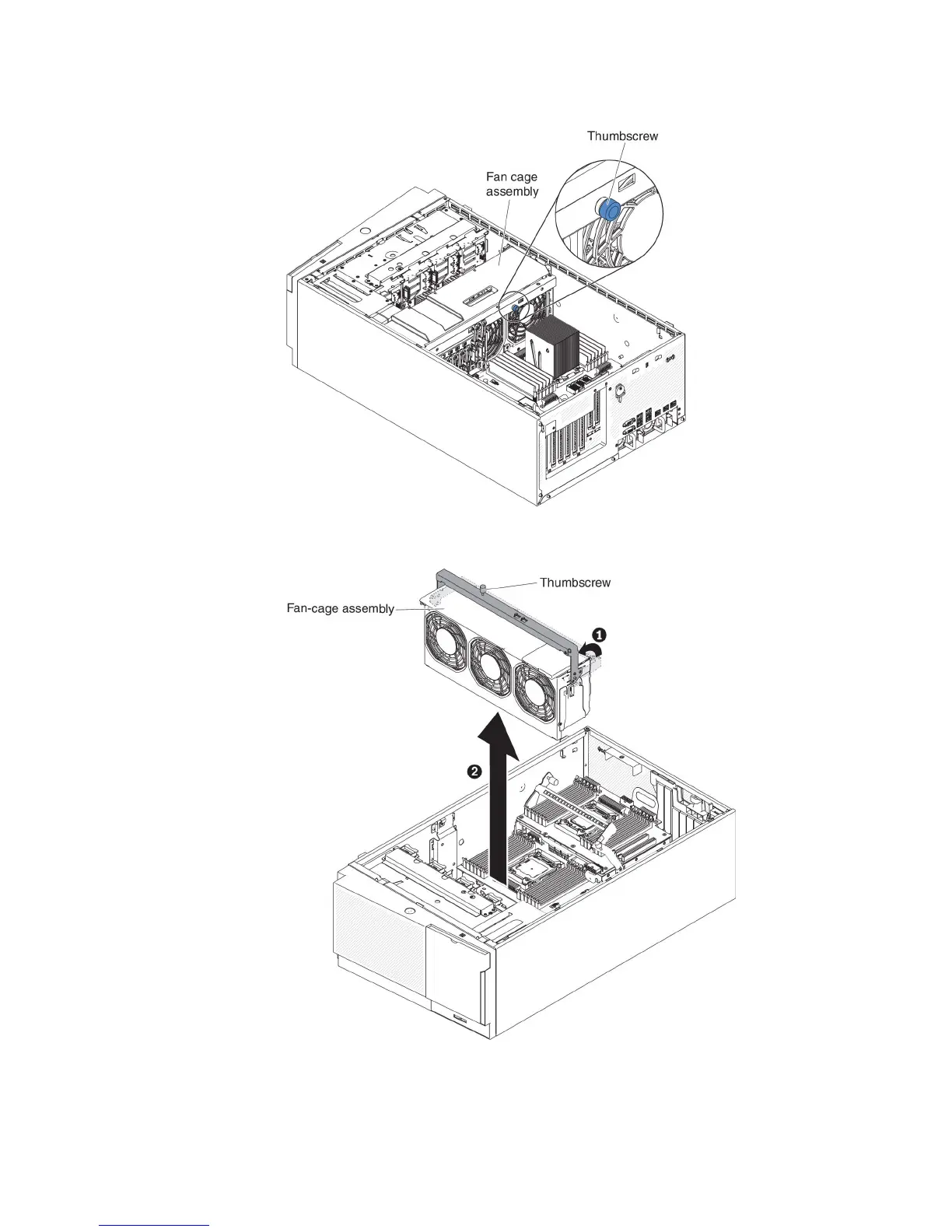

8. Loosen the thumb screw on the fan cage release latch.
9. Rotate the fan cage release latch to the open position. The fan cage will lift up
slightly when the release latch is fully open.
10. Grasp the fan cage assembly and lift it out of the server.
