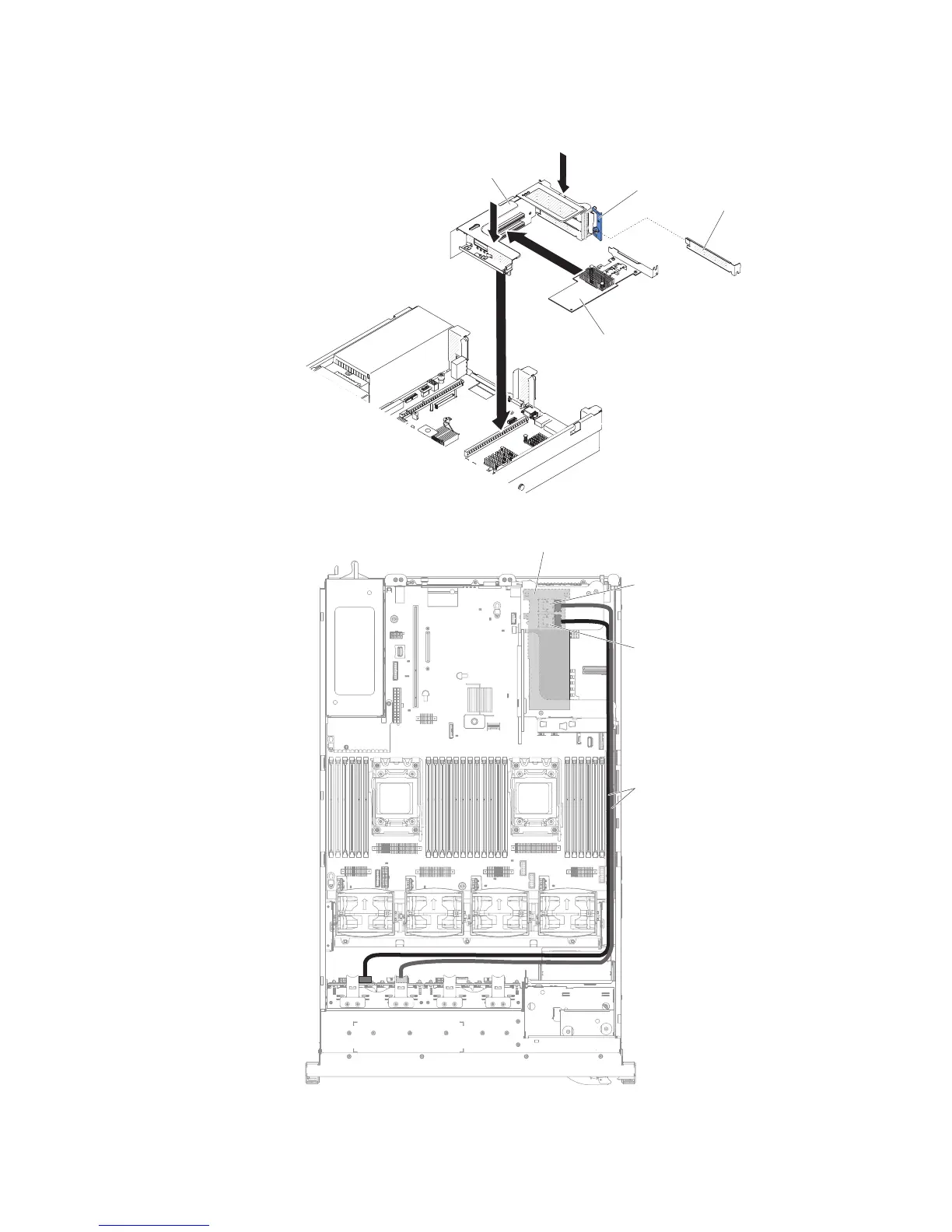

12. Align and install the PCI riser-card assembly in the server (see “Installing a
PCI riser-card assembly” on page 56).
Adapter
Expansion-slot
cover
Bracket
PCI riser-card
assembly
13. Route the cables underneath the cable retention.
Port 4-7
Port 0-3
Adapter
SAS signal
cables
14. Refer from step 6 on page 74 for installing the second backplane, arranging
the cable routing, installing the fans, and installing the hard disk drives. The
Chapter 2. Installing optional devices 83

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
