IBM System x3650 M4 Type 7915 User Manual

Installing a DIMM
To install a DIMM, complete the following steps.
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 40.
2. Turn off the server and peripheral devices, and disconnect the power cord and
all external cables (see “Turning off the server” on page 28).
3. Remove the server cover (see “Removing the cover” on page 54).

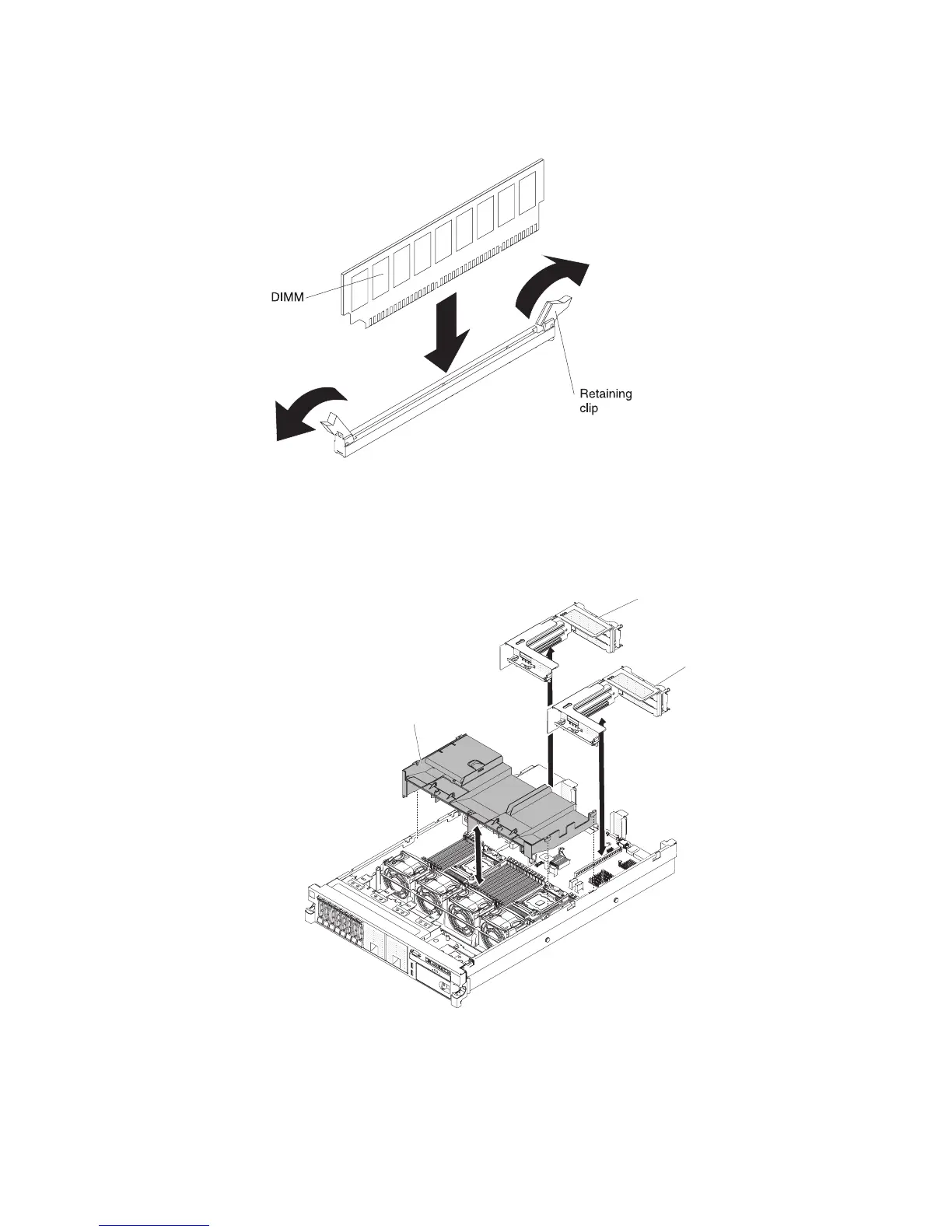

PCI riser-card
assembly 2
PCI riser-card
assembly 1
Air baffle
4. If PCI riser-card assembly 1 contains one or more adapters, remove riser-card
assembly 1 (see “Removing a PCI riser-card assembly” on page 55).
5. Remove the DIMM air baffle (see “Removing the air baffle” on page 57).
Attention: To avoid breaking the retaining clips or damaging the DIMM
connectors, open and close the clips gently.
6. Open the retaining clip on each end of the DIMM connector.
Chapter 2. Installing optional devices 113

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
