IBM System x3650 M4 Type 7915 User Manual

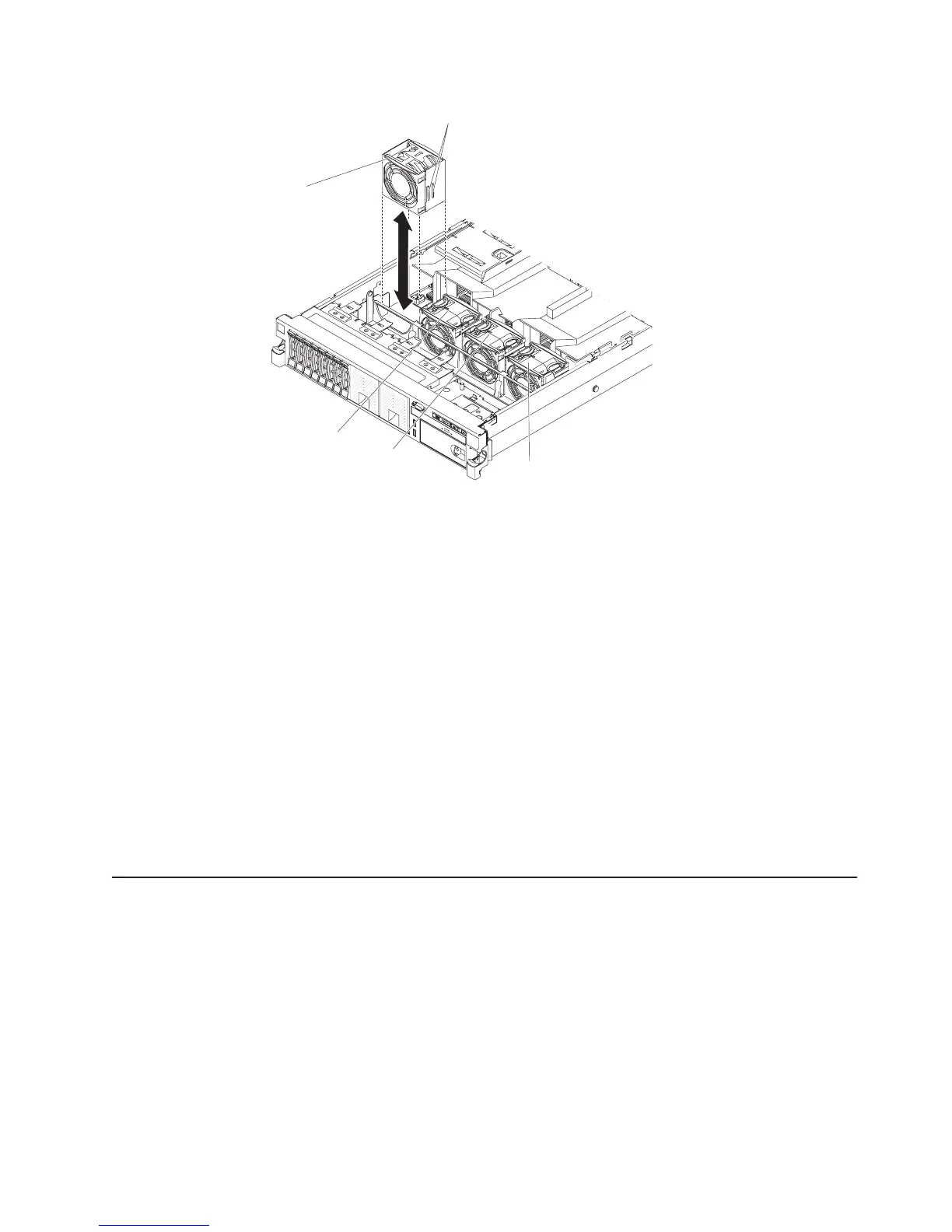

Fan 1
Fan 2
Fan 3
Fan 4
Vertical tabs
To install any of the four replaceable fans, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 40.
2. If you have not done so already, slide the server out of the rack and remove the
cover (see “Removing the cover” on page 54).
Attention: To ensure proper system cooling, do not remove the top cover for
more than 30 minutes during this procedure.
3. Rotate the air baffle up.
4. Orient the new fan over its position in the fan bracket so that the connector on
the bottom aligns with the fan connector on the system board.
5. Align the vertical tabs on the fan with the slots on the fan cage bracket.
6. Push the new fan into the fan connector on the system board. Press down on
the top surface of the fan to seat the fan fully. Make sure that the yellow LED
next to the fan connector on the system board is off.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 135.
Installing an optional ServeRAID upgrade adapter
To install an optional ServeRAID adapter upgrade adapter, complete the following
steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 40.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables (see “Turning off the server” on page 28).
3. Remove the cover (see “Removing the cover” on page 54).
4. Connect the supercap cable to the ServeRAID upgrade adapter.
Chapter 2. Installing optional devices 125

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
