PCI riser-card adapter connectors

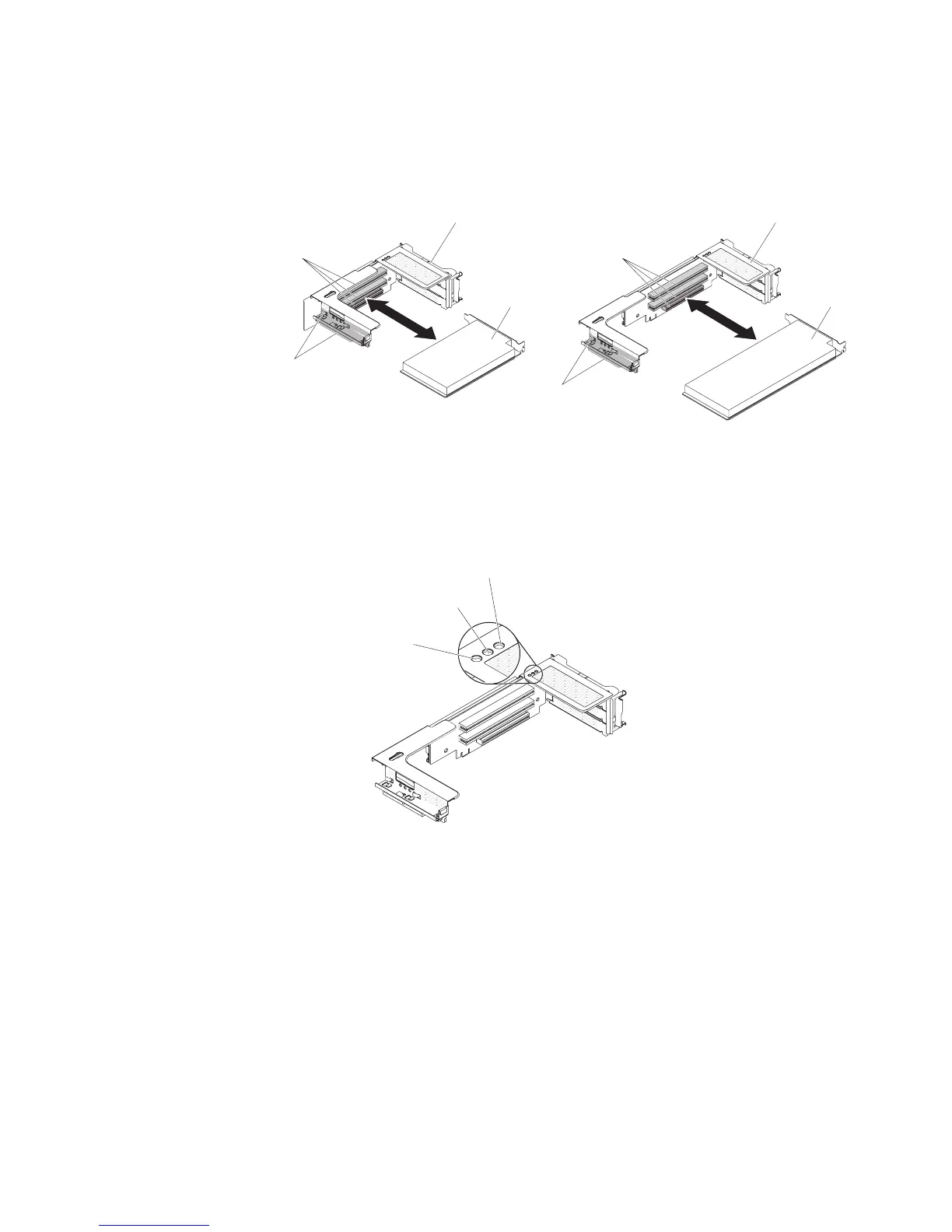

The following illustration shows the connectors on the PCI riser card for
user-installable PCI adapters.
PCI
riser-card
assembly
(in long position)
Adapter
Adapter
connectors
PCI
riser-card
assembly
(in short position)
Adapter
Adapter
connectors
Full-length
adapter
bracket
Full-length
adapter
bracket
PCI riser-card assembly LEDs
The following illustration shows the light-emitting diodes (LEDs) on the PCI
riser-card assembly.
Note: Error LEDs remain lit only while the server is connected to power.
UpperPCI slot error LED
Center PCI slot error LED
Lower PCI slot error LED
Chapter 2. Installing optional devices 39
