IBM System x3650 M4 Type 7915 User Manual

Server components

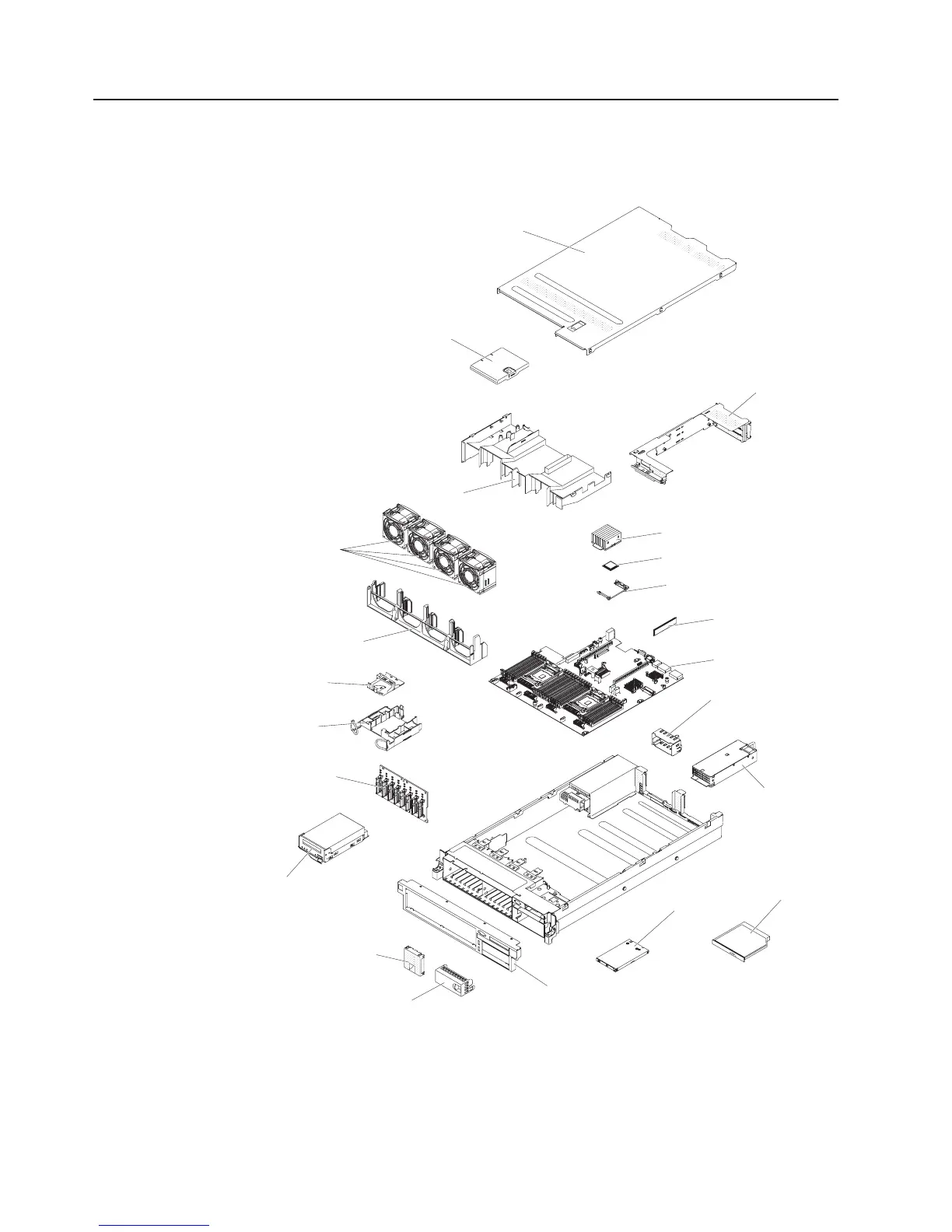

The following illustrations show the major components in the server.
Note: The illustrations in this document might differ slightly from your hardware.
SAS hard disk
drive backplane
Battery holder
Fan bracket
Fans
Air baffle
cover
PCI riser-card
assembly
Heat sink
Microprocessor
Heat sink
retention module
DIMM
System board
DVD drive optional()
Operator information
panel
Front bezel
4-drive
filler panel
Tape drive
filler panel
Tape drive
Power supply
filler panel
Power supply
Remote battery
Battery tray
32 System x3650 M4 Type 7915: Installation and User’s Guide
