IBM System x3650 M4 Type 7915 User Manual

Removing the air baffle
When you work with some optional devices, you must first remove the air baffle to

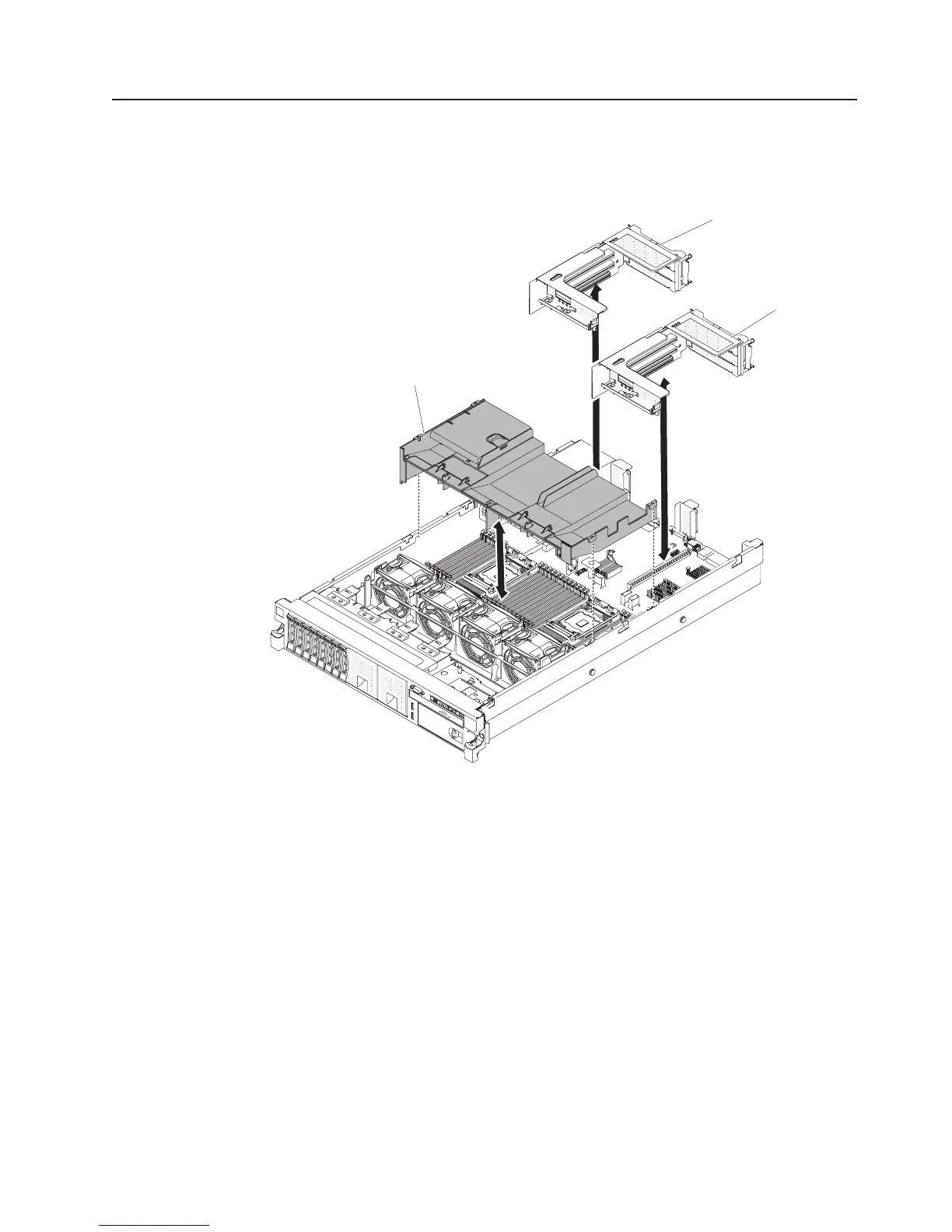

access certain components or connectors on the system board. The following
illustration shows how to remove the air baffle.
PCI riser-card
assembly 2
PCI riser-card
assembly 1
Air baffle
To remove the air baffle, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 40.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables (see “Turning off the server” on page 28).
3. Remove the cover (see “Removing the cover” on page 54).
4. Remove PCI riser-card assembly 1, if needed (see “Removing a PCI riser-card
assembly” on page 55).
5. Place your fingers under the front and back of the top of the air baffle; then, lift
the air baffle out of the server.
Attention: For proper cooling and airflow, replace all air baffles before you
turn on the server. Operating the server with any air baffle removed might
damage server components.
Chapter 2. Installing optional devices 57

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
