IBM System x3650 M4 Type 7915 User Manual

2. Turn off the server and peripheral devices and disconnect all power cords and
external cables (see “Turning off the server” on page 28).
3. Remove the cover (see “Removing the cover” on page 54).
4. Remove PCI riser-card assembly (see “Removing a PCI riser-card assembly” on
page 55).

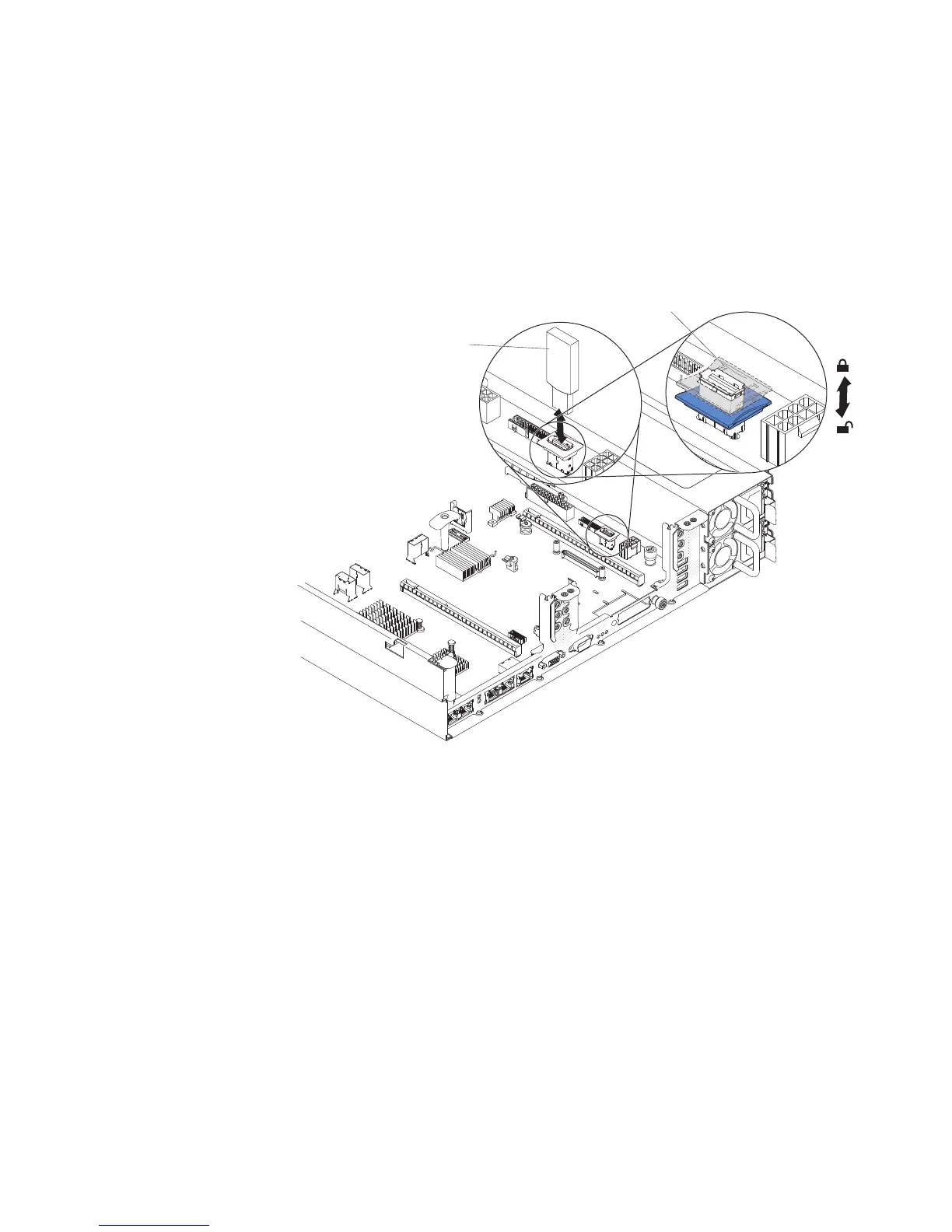

5. Align the flash device with the connector on the system board and push it into
the USB connector until it is firmly seated.
6. Press down on the retention latch to lock the flash device into the USB
connector.
USB embedded
hypervisor
flash device
Lockbar
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 135.
Note: You must configure the server to boot from the hypervisor USB drive. See
Chapter 3, “Configuring the server,” on page 141 for information about enabling the
embedded hypervisor.
Chapter 2. Installing optional devices 129

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
