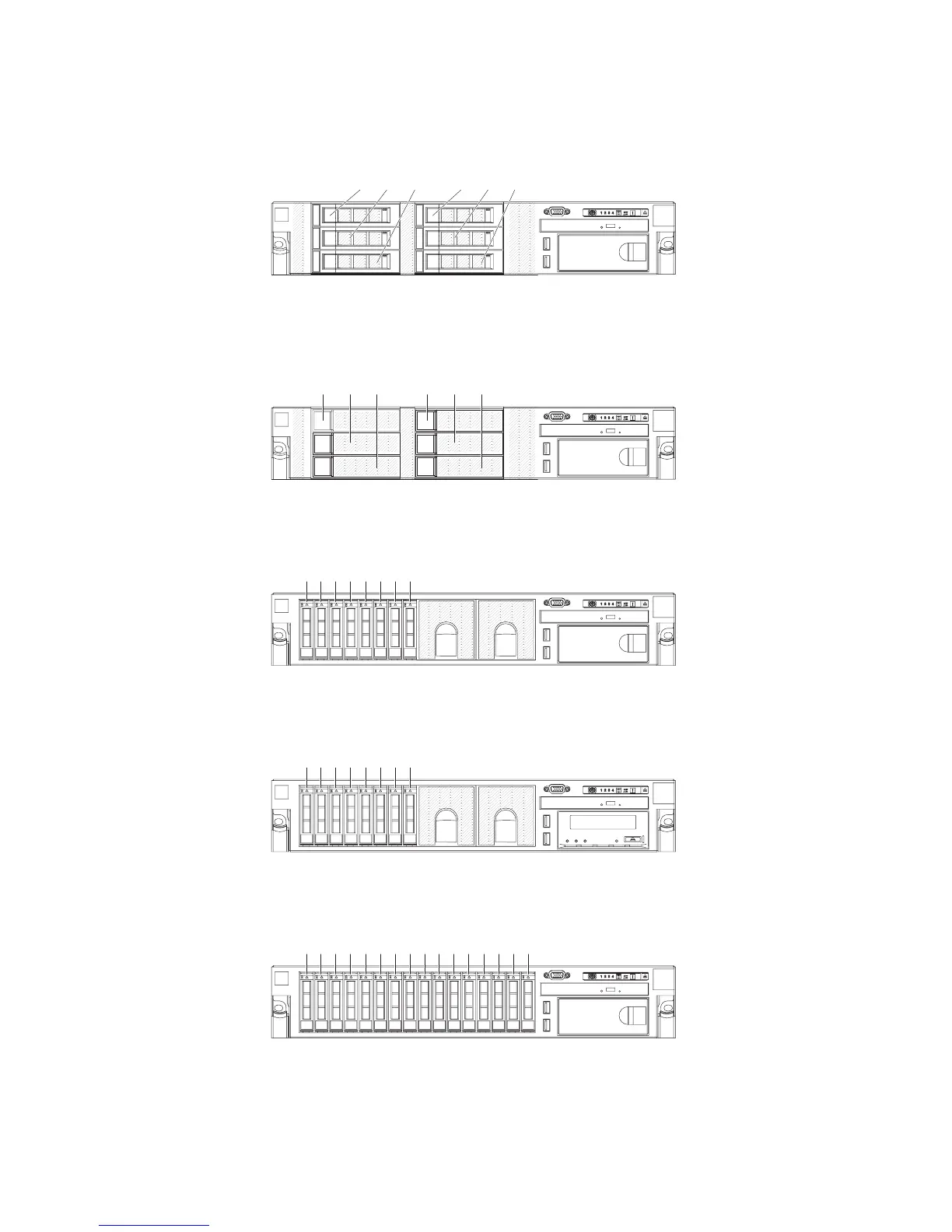

The following illustration shows a server with 3.5-inch SAS/SATA hot-swap hard disk
drive bays.
SAS hard disk
drive bays
012 345
The following illustration shows a server with six 3.5-inch SATA simple-swap hard
disk drive bays.
SATA hard disk
drive bays
012 345
The following illustration shows a server with eight 2.5-inch SAS hard disk drive
bays.
SAS hard disk
drive bays
01234567
You can purchase an optional kit to install the tape drive.
SAS hard disk
drive bays
01234567
You can purchase an optional kit to install the eight additional 2.5-inch SAS hard
disk drive bays.
SAS hard disk
drive bays
01234567
8 9 10 11121314 15
The SAS ID for each bay is printed on the server front, above each bay.
If firmware and documentation updates are available, you can download them from
the IBM website. The server might have features that are not described in the
Chapter 1. The System x3650 M4 server 3
