IBM System x3650 M4 Type 7915 User Manual

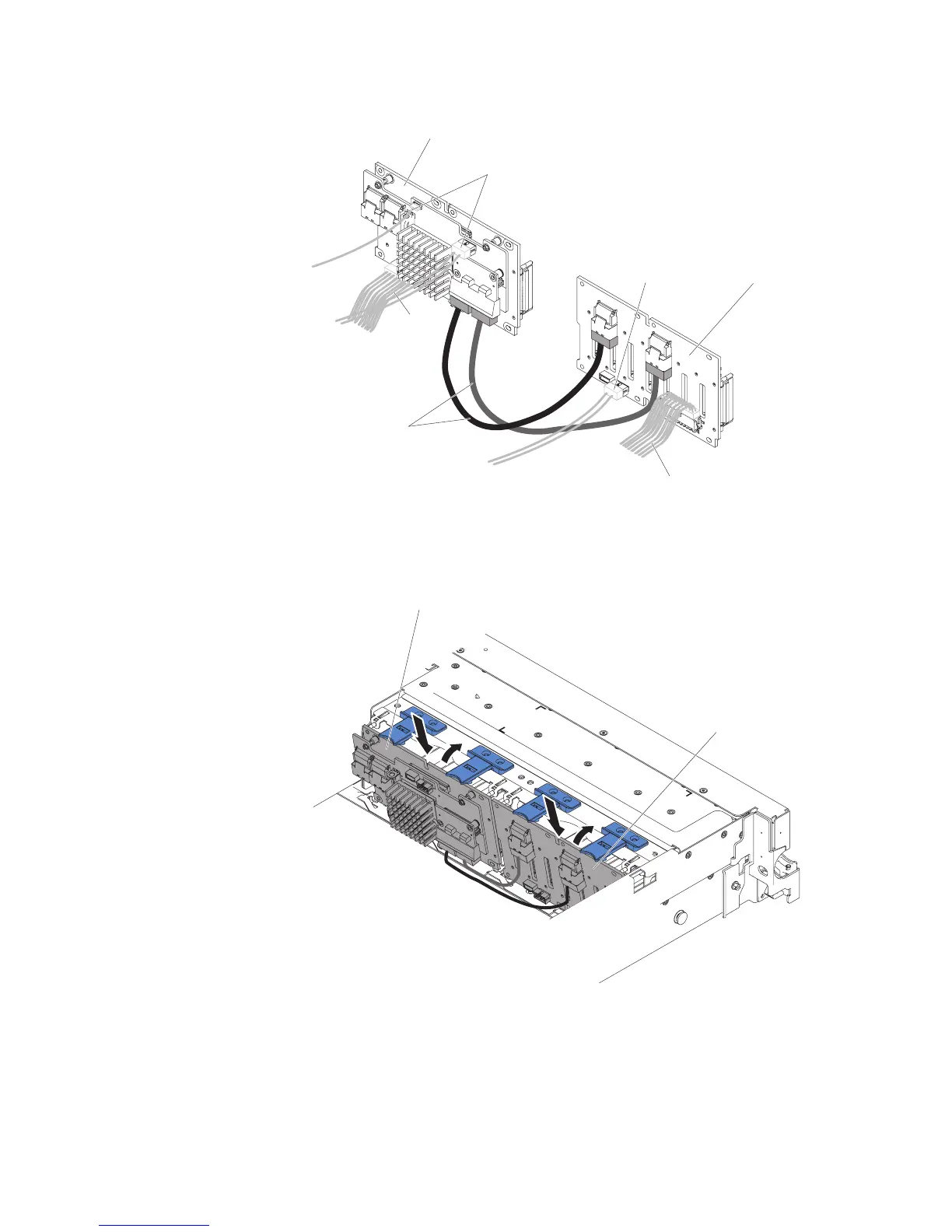

SAS
signal
cable
Power
cable
Configuration
cable
Hard disk drive
backplane
Power
cable
Configuration
cables
SAS Expander
adapter
d. Connect the configuration cable and the power cable back to backplane 1.
e. Angle the new backplane and place the bottom edge into the slots for
backplane 2 on the chassis next to the optical drive.
Hard disk drive
backplane
SAS Expander
adapter
f. Angle the backplane and place the bottom edge into the slots for backplane
1 on the chassis.
g. Rotate the backplane upright so that the bracket goes underneath the latch
and tabs on the chassis and is engaged into the slots on the backplane
bracket.
10. Connect the loose end of the SAS signal cables to the system board. Route
the cable underneath the cable retention features on the baffle. See the
70 System x3650 M4 Type 7915: Installation and User’s Guide

IBM System x3650 M4 Type 7915 Specifications

General

Form Factor	2U Rack
Chipset	Intel C600 series chipset
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Processor	Up to two Intel Xeon E5-2600 series processors
Memory	Up to 768GB DDR3 (24 DIMM slots)
Storage	Up to 16 x 2.5" or 6 x 3.5" SAS/SATA HDDs or SSDs
RAID Support	RAID 0, 1, 10
Network	Four integrated Gigabit Ethernet ports
Power Supply	Up to two redundant hot-swap 550 W, 750 W, or 900 W power supplies
Expansion Slots	Up to 7 PCIe 3.0 slots
Storage Controller	ServeRAID M5110e
Management	Integrated Management Module (IMM) v2
