Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see “Handling static-sensitive devices” on page 27.

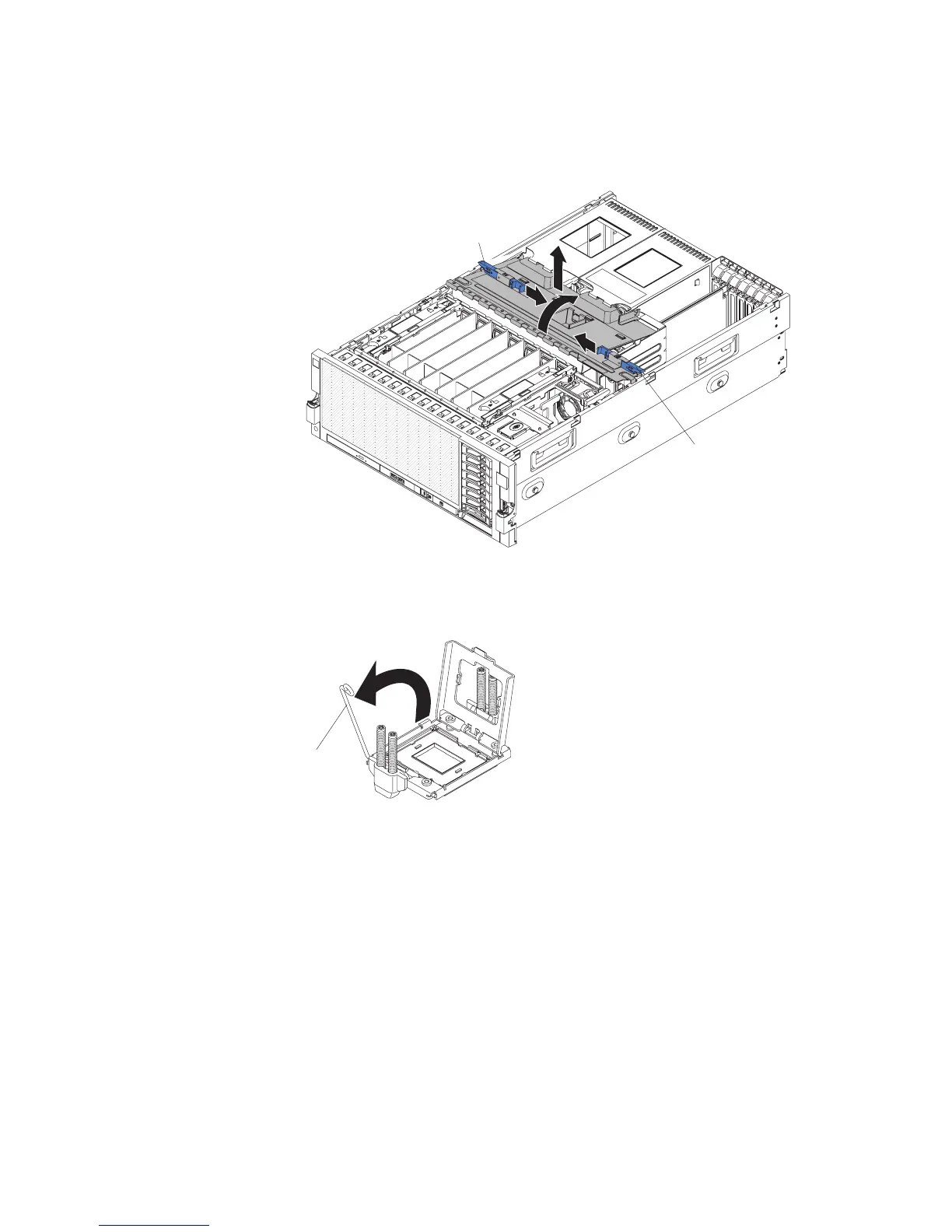

4. Slide the blue latches on the top cover bracket toward the center of the server.
Latch
Latch
5. Lift the top cover bracket out of the server.
6. Remove the heat-sink blank and store it for future use.
7. Open the release socket lever and rotate the load plate.
Release
socket
lever
8. Remove the microprocessor socket dust cover from the surface of the
microprocessor socket, if one is present. Store the dust cover in a safe place.
9. Install the microprocessor in the microprocessor installation tool.
a. Touch the static-protective package that contains the new microprocessor
to any unpainted metal surface on the outside of the server.
b. Twist the handle of the installation tool counterclockwise so that it is in the
open position.
c. Using the triangle on the microprocessor to align it with the installation tool,
place the microprocessor on the underside of the tool.
d. Twist the handle of the installation tool clockwise to secure the
microprocessor in the tool.
Note: You can pick up or release the microprocessor by twisting the
microprocessor installation tool handle.
Chapter 2. Installing optional devices 57
