Ice Torus 126 - Main Parts

Torus 126, 380 and 500 Operator Manual
1-2 Main Parts
Rev AB
Main Parts

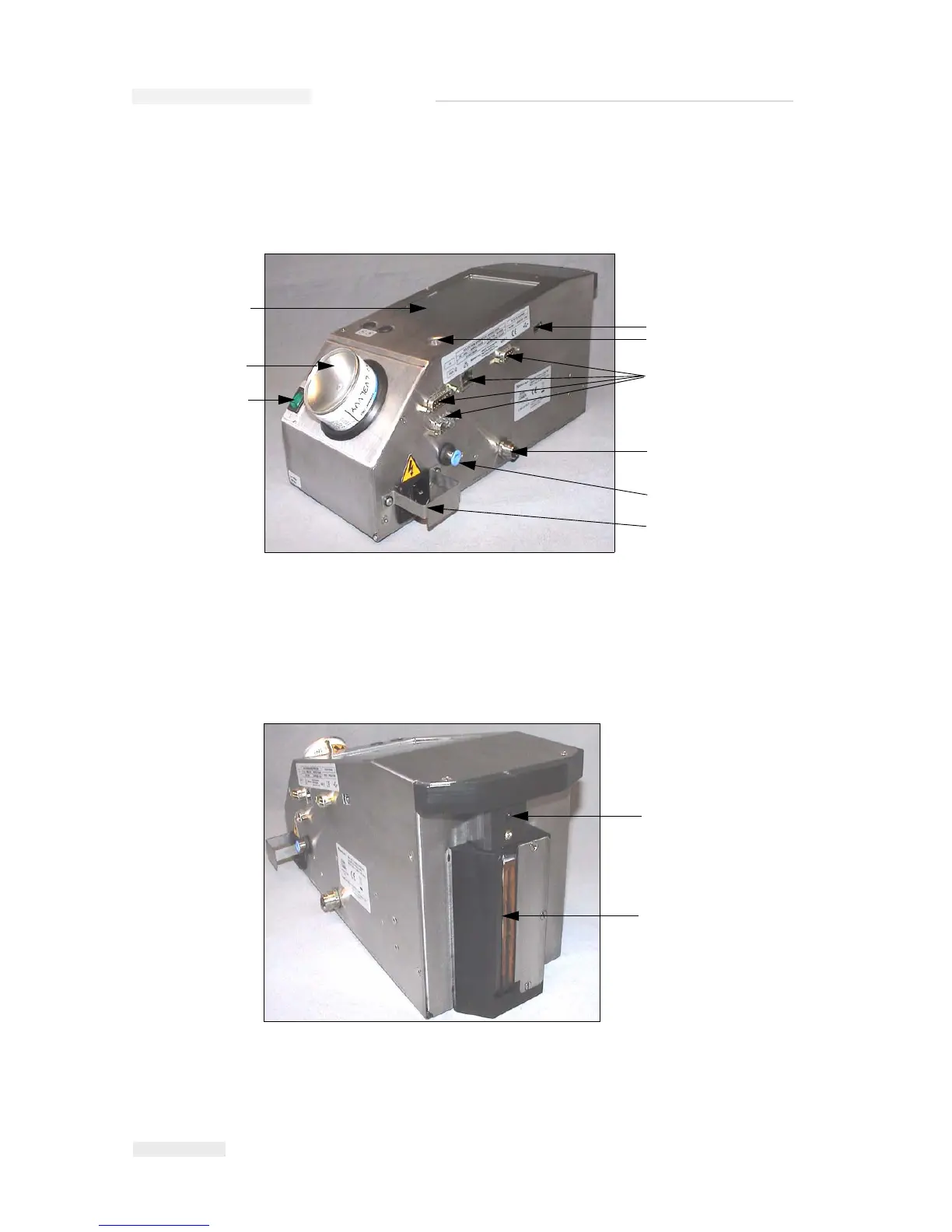

Figure 1-1 and Figure 1-2 show the printer with the main components and
connections highlighted.
Figure 1-1: Printer Parts
1. USB Port
2. Printer Status LED
3. I/O, Ethernet and Communications
Connectors
4. Remote Product Sensor Connector
5. Air Pipe Connector
6. Main Power Inlet
7. Power Switch
8. Ink Canister
9. CLARiTY Operator Interface
1
3
4
5
6
7
8
9
2
1
Figure 1-2: Printhead
1. Internal Product Sensor
2. Printhead
2
