BATTERY CHARGING
ï Rapid charging with the BC-119N+AD-106
The optional BC-119N provides rapid charging of battery
packs. The following items are additionally required.
AD-106 charger adapter
An AC adapter (may be supplied with BC-119N depending on ver-
sion) or the DC power cable (OPC-515L/CP-17L).
Charging period: Approx. 3 hours (with BP-232N)
ï Rapid charging with the BC-121N+AD-106
The optional BC-121N allows up to 6 battery packs to be
charged simultaneously. The following items are additionally
required.
Six AD-106 charger adapters
An AC adapter (BC-157) or the DC power cable (OPC-656)
Charging period: Approx. 3 hours (with BP-232N)

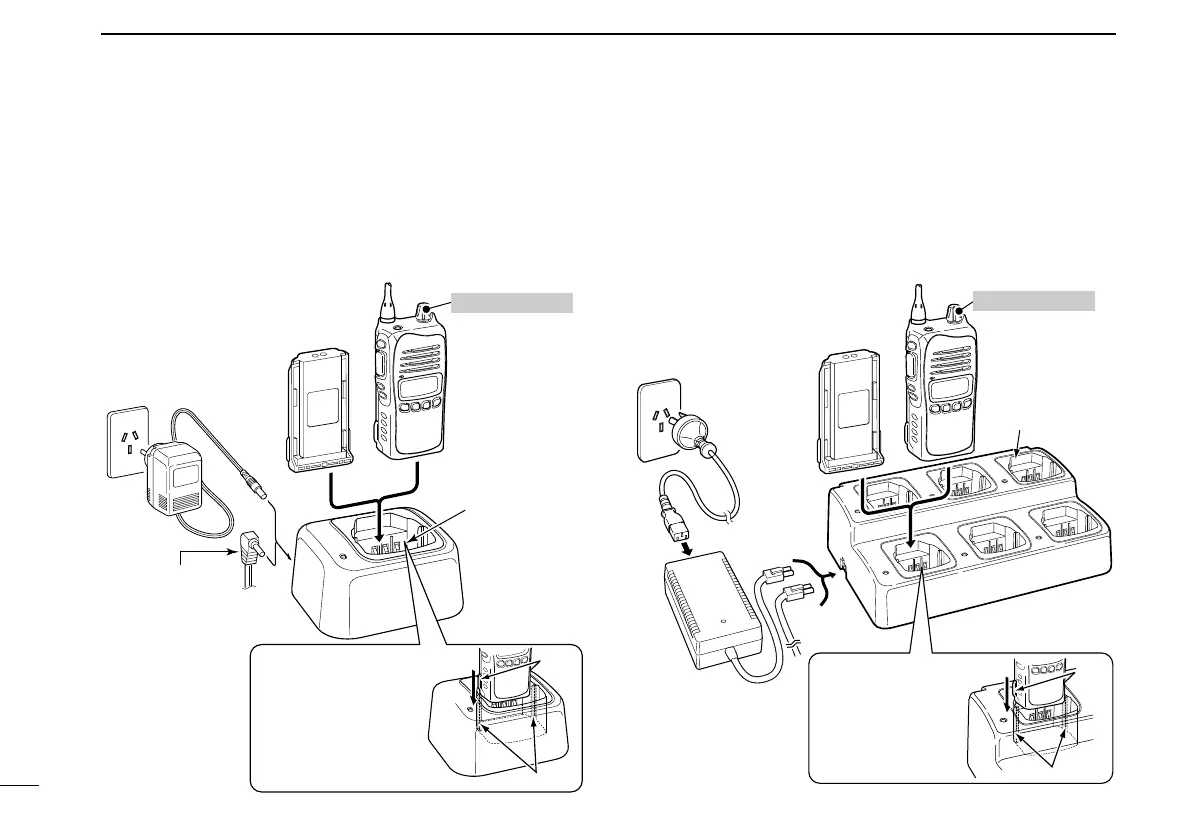

Battery pack
Transceiver
Turn power OFF
DC power cable
(OPC-656)
AC adapter
(Purchased
separately)
IMPORTANT!:
Ensure the guide lobs
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Guide rails
Lobs
(Connect with the
DC power supply;
13.8 V/at least 7 A)
AD-106 charger
adapters are in-
stalled in each slot.
AD-106 charger
adapter is installed
in BC-119N.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
Battery pack
Transceiver
Turn power OFF
IMPORTANT!:
Ensure the guide lobs
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Lobs
Guide rails
