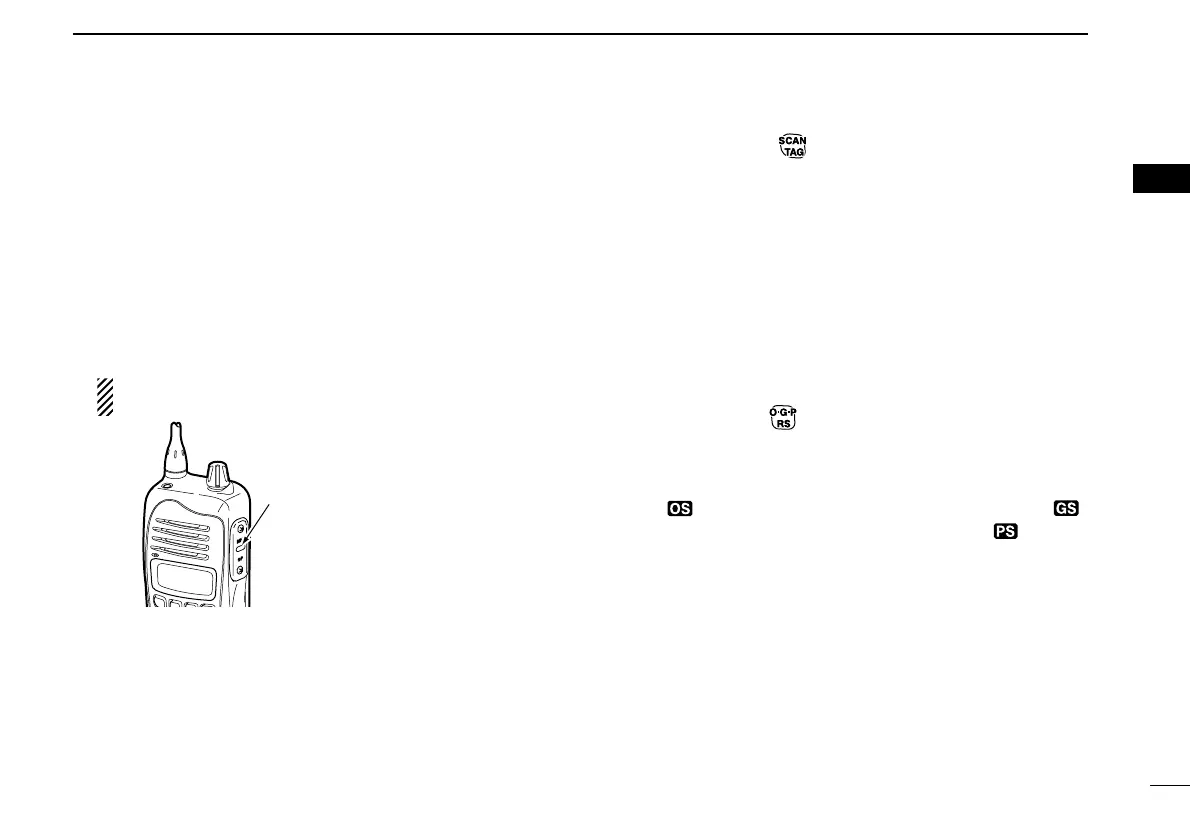

PANEL DESCRIPTION
2
r PTT SWITCH [PTT] (p. 12)
Push and hold to transmit; release to receive.
t CH UP/CH DOWN KEYS [CH UP]/[CH DOWN]
Push to select an operating channel, set mode setting, etc.
(pgs. 11, 34)
y VOLUME CONTROL [VOL] (pgs. 10, 11)
Rotate to turn the power ON/OFF and adjusts the audio
level.
u EXTERNAL MICROPHONE/SPEAKER JACK
Connect an optional speaker-microphone or headset.
NOTE: Connect or disconnect the optional equipment
after the transceiver is turned OFF.
i FUNCTION DISPLAY (p. 6)
Displays a variety of information such as an operating
channel number/name, SelCall code, selected function, etc.
o SCAN/TAG KEY*
NN
NN
(Scan/Scan Tag)
➥ Push to start or stop the scan. (pgs. 19, 20)
➥ Push and hold for 2 sec. to set or clear the displayed
channel as a TAG (scanned) channel. (p. 18)
• “S” appears when the selected channel is tagged.
FF
FF
(TX Code CH/Call)
➥ Push to enter the SelCall TX code channel selection
mode, then push [CH Up] or [CH Down] to select. (CB
channel operation only) (p. 25)
➥ Push and hold for 2 sec. to transmit to the SelCall TX
code channel. (CB channel operation only) (p. 27)
!0 O•G•P/RS KEY*
NN
NN
(Scan Mode/Rpt Scan)
➥ Push to select the scan type from open scan, group
scan and priority scan in order. (p. 18)
• “”appears when the open scan is selected, “”
appears when the group scan is selected, and “”appears
when the priority scan is selected.
➥ Push and hold for 2 sec. to start the repeater scan. (p. 21)
• Repeater output channel ‘CB-R1’ to ‘CB-R8’ operation only
FF
FF
(Quiet/ID-MR)
➥ Push to toggle the quiet function ON or OFF. (CB chan-
nel ‘CB-XX’ operation only) (p. 29)
• “Q” appears when the quiet function is turned ON.
➥ Push and hold for 2 sec. to enter the received ID code
history indication mode. (p. 28)
• “NO ID” is displayed when no ID code is memorized.
