Icom IC-821H - Page 19

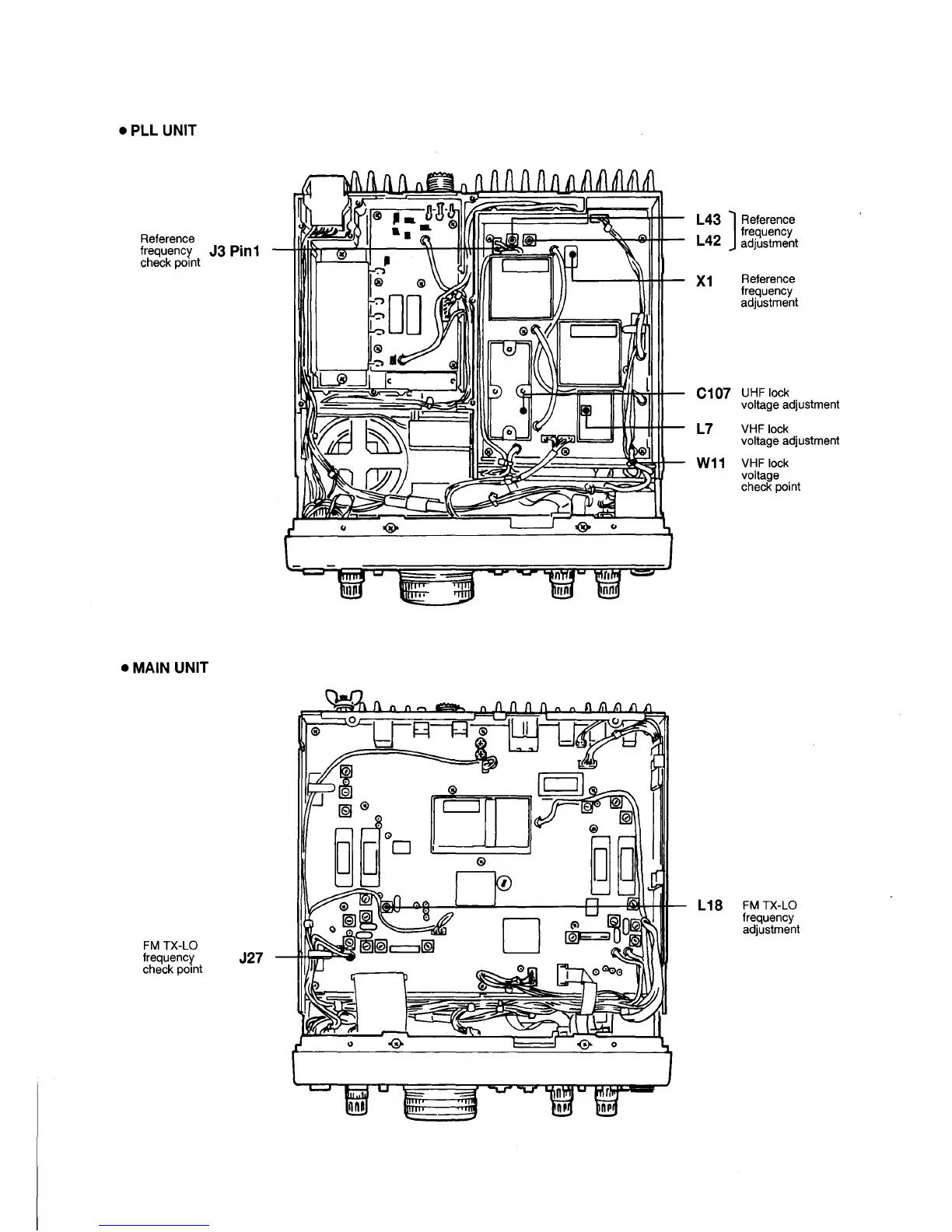

-PLL UNIT
Reference
frequency
J3 Pin1
check point
-MAIN UNIT
FM TX-LO
frequency
check point
J27
L43 ] Reference
frequency
L42 adjustment
X1 Reference
frequency
adjustment
C107 UHF lock
voltage
adjustment
L7 VHF lock
voltage
adjustment
W11 VHF lock
voltage
check point
L 18 FM TX-LO
frequency
adjustment
