Icom IC-821H - Page 52

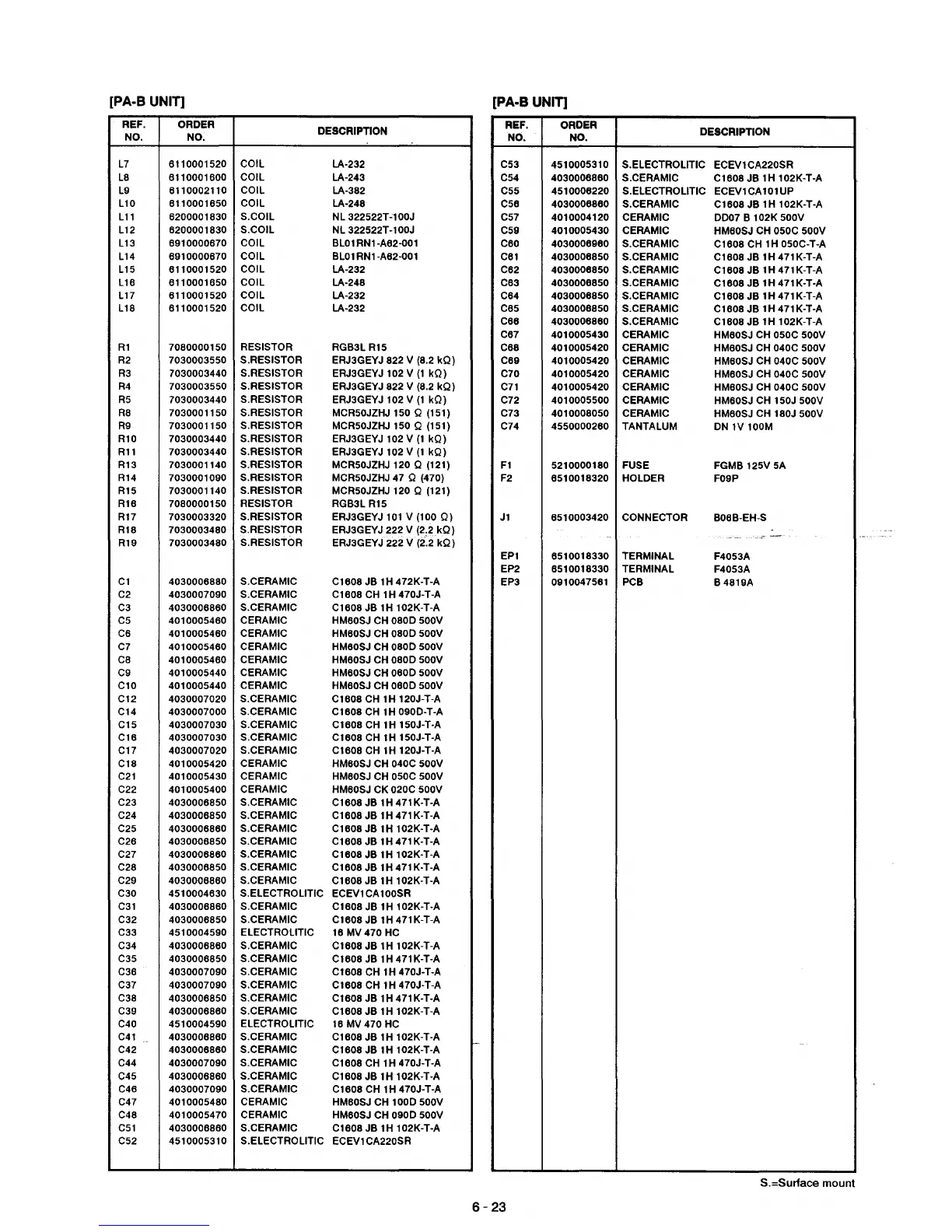

[PA-B UNIT]
[PA-B UNIT]
REF.
ORDER
DESCRIPTION
NO. NO.
REF. ORDER
DESCRIPTION
NO. NO.
L7
6110001520 COIL
LA·232 C53 4510005310
S.ELECTROLITIC ECEV1CA220SR
L8
6110001600 COIL LA-243
C54 4030006860 S.CERAMIC
C1608
JB 1 H 102K-T-A
L9
6110002110 COIL
LA-382
C55 4510006220
S.ELECTROLITIC
ECEV1CA10lUP
L10 6110001650 COIL LA-248
C56 4030006860
S.CERAMIC C1608
JB 1 H 1 02K-T-A
L11
6200001830 S.COIL
NL 322522T
c
l00J
C57 4010004120
CERAMIC
0007 B 1 02K 500V
L12
6200001830 S.COIL NL 322522T-l00J
C59 4010005430 CERAMIC
HM60SJ
CH 050C 500V
L13
6910000670 COIL
BLOl RN1-A62-001
C60 4030006960
S.CERAMIC C1608
CH 1 H 050C-T-A
L14
6910000670 COIL BLOl RN1-A62-001
C61
4030006850
S.CERAMIC C1608
JB lH 471K-T-A
L15
6110001520 COIL LA-232
C62
4030006850
S.CERAMIC C1608 JB lH 471K-T-A
L16
6110001650 COIL
LA-248
C63 4030006850 S.CERAMIC
C1608
JB lH 471K-T-A
L17
6110001520 COIL LA-232
C64
4030006850
S.CERAMIC C1608 JB lH 471K-T-A
L18
6110001520 COIL
LA-232
C65
4030006850
S.CERAMIC
C1608
JB lH 471K-T-A
C66 4030006860
S.CERAMIC C1608
JB lH 102K-T-A
C67 4010005430
CERAMIC HM60SJ CH 050C 500V
Rl
7080000150 RESISTOR
RGB3L R15
C68 4010005420
CERAMIC HM60SJ CH 040C 500V
R2 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kQ)
C69 4010005420
CERAMIC HM60SJ
CH 040C 500V
R3
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
C70
4010005420
CERAMIC
HM60SJ
CH 040C 500V
R4 7030003550 S.RESISTOR
ERJ3GEYJ 822 V (8.2 kQ)
C71 4010005420 CERAMIC
HM60SJ
CH 040C 500V
R5
7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kQ)
C72 4010005500 CERAMIC
HM60SJ
CH 150J 500V
R8
7030001150 S.RESISTOR
MCR50JZHJ 150
Q (151)
C73 4010008050
CERAMIC HM60SJ
CH 180J 500V
R9
7030001150 S.RESISTOR
MCR50JZHJ 150
Q (151)
C74 4550000260 TANTALUM
ON lV 100M
Rl0
7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
Rll
7030003440 S.RESISTOR
ERJ3GEYJ 102 V (1 kQ)
R13
7030001140
S.RESISTOR MCR50JZHJ 120
Q (121)
Fl 5210000180 FUSE
FGMB 125V 5A
R14
7030001090 S.RESISTOR MCR50JZHJ 47 Q (470)
F2
6510018320
HOLDER
F09P
R15
7030001140 S.RESISTOR MCR50JZHJ 120 Q (121)
R16
7080000150 RESISTOR
RGB3L R15
R17
7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Q)
Jl 6510003420
CONNECTOR B06B-EH-S
R18 7030003480 S.RESISTOR
ERJ3GEYJ 222 V (2,2kQ)
R19
7030003480 S.RESISTOR
ERJ3GEY J 222 V (2.2 kQ)
- -
EPl 6510018330
TERMINAL
F4053A
EP2 6510018330 TERMINAL
F4053A
Cl 4030006880 S.CERAMIC C1608 JB lH 472K-T-A
EP3
0910047561
PCB
B4819A
C2 4030007090 S.CERAMIC C1608 CH 1 H 470J-T-A
C3
4030006860 S.CERAMIC C1608
JB lH 102K-T-A
C5 4010005460 CERAMIC HM60SJ
CH 0800 500V
C6 4010005460 CERAMIC HM60SJ
CH 0800 500V
C7 4010005460 CERAMIC HM60SJ CH 0800 500V
C8 4010005460 CERAMIC HM60SJ
CH 0800 500V
C9
4010005440 CERAMIC
HM60SJ
CH 0600 500V
Cl0
4010005440 CERAMIC
HM60SJ
CH 0600 500V
C12 4030007020 S.CERAMIC C1608
CH lH 120J-T-A
C14
4030007000
S.CERAMIC C1608
CH lH 0900-T-A
C15
4030007030 S.CERAMIC
C1608
CH lH 150J-T-A
C16 4030007030
S.CERAMIC
C1608
CH lH 150J-T-A
C17 4030007020 S.CERAMIC C1608
CH lH 120J-T-A
C18
4010005420 CERAMIC HM60SJ CH 040C 500V
C21 4010005430
CERAMIC
HM60SJ CH 050C 500V
C22 4010005400 CERAMIC HM60SJ CK 020C 500V
C23 4030006850 S.CERAMIC
C1608JB lH471K-T-A
C24 4030006850 S.CERAMIC C1608 JB lH 471 K-T-A
C25
4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
C26 4030006850 S.CERAMIC C1608
JB lH 471 K-T-A
C27
4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
C28
4030006850 S.CERAMIC
C1608
JB lH 471K-T-A
C29 4030006860 S.CERAMIC
C1608
JB lH 102K-T-A
C30 4510004630 S.ELECTROLITIC
ECEV1CA100SR
C31
4030006860 S.CERAMIC
C1608
JB lH 102K-T-A
C32
4030006850 S.CERAMIC
C1608JB lH471K-T-A
C33 4510004590 ELECTROLITIC
16 MV 470 HC
C34
4030006860 S.CERAMIC
C1608 JB lH 102K-T-A
C35 4030006850 S.CERAMIC
C1608
JB 1 H 471 K-T-A
C36
4030007090 S.CERAMIC
C1608 CH lH 470J-T-A
C37
4030007090 S.CERAMIC
C1608
CH lH 470J-T-A
C38 4030006850 S.CERAMIC
C1608
JB lH 471K-T-A
C39
4030006860
S.CERAMIC C1608 JB lH 102K-T-A
C40
4510004590 ELECTROLITIC
16 MV 470 HC
C41
4030006860 S.CERAMIC
C1608
JB lH 102K-T-A
-
C42 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C44
4030007090
S.CERAMIC C1608
CH lH 470J-T-A
C45
4030006860 S.CERAMIC
C1608
JB lH 102K-T-A
C46 4030007090 S.CERAMIC
C1608 CH
lH 470J-T-A
C47 4010005480
CERAMIC
HM60SJ
CH 1000 500V
C48
4010005470 CERAMIC
HM60SJ
CH 0900 500V
C51 4030006860 S.CERAMIC C1608 JB lH 102K-T-A
C52 4510005310 S.ELECTROLITIC ECEV1CA220SR
S.=Suriace mount
6- 23
