ACCESSORY ATTACHMENT

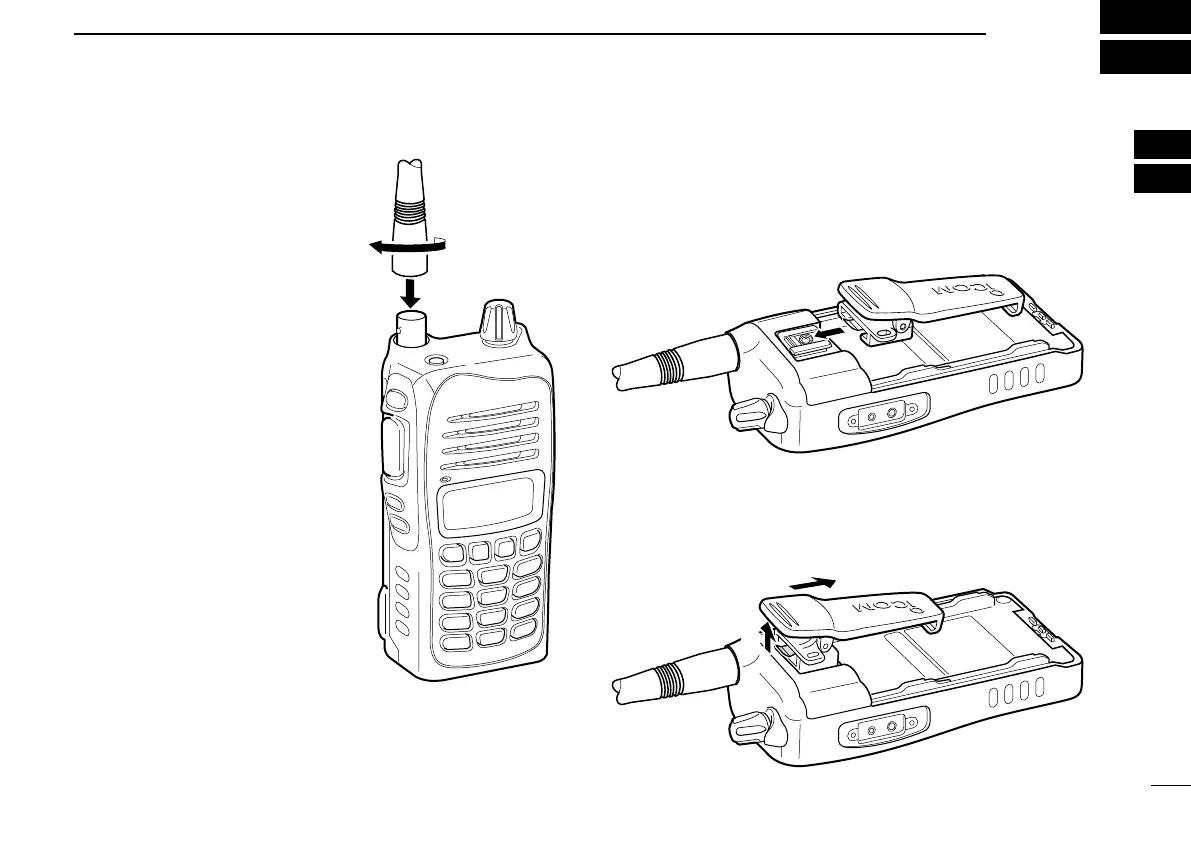

D Antenna
Insert the antenna into the antenna
connector and screw down the an-
tenna, as shown to the right.
CAUTION!
• NEVER carry the transceiver by
holding only the antenna.
• DO NOT
transmit without an
antenna. Otherwise the transceiv-
er may be damaged.
D Belt clip
Conveniently attaches to your belt.
- To attach the belt clip
q Remove the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a ‘click’ sound.
- To detach the belt clip
q Remove the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
q
w
