D Battery case attachment

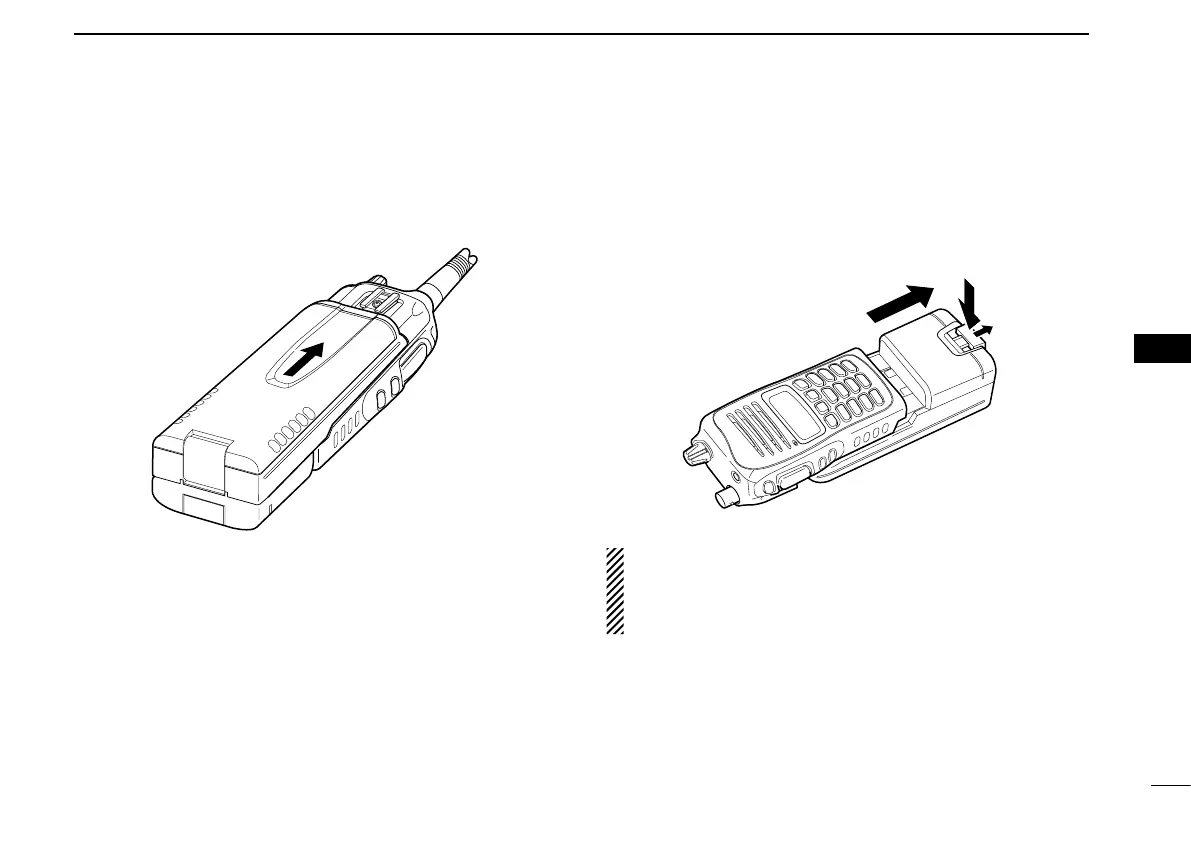

To attach the battery case:
Slide the battery case in the direction of the arrow.
• Slide the case until the transceiver’s battery release button makes
a ‘click’ sound.
To detach the battery case:
Pull out the case’s battery release button in the direction of
the arrow (q), and then push the release button in the direc-
tion of the arrow (w) as shown. The battery pack is then re-
leased.
q
w
NEVER attach or detach the battery case when the trans-
ceiver is wet or soiled. This may cause water or dust to get
into the transceiver or battery case and result in the trans-
ceiver being damaged.
30
7
BATTERY PACKS AND CASE
