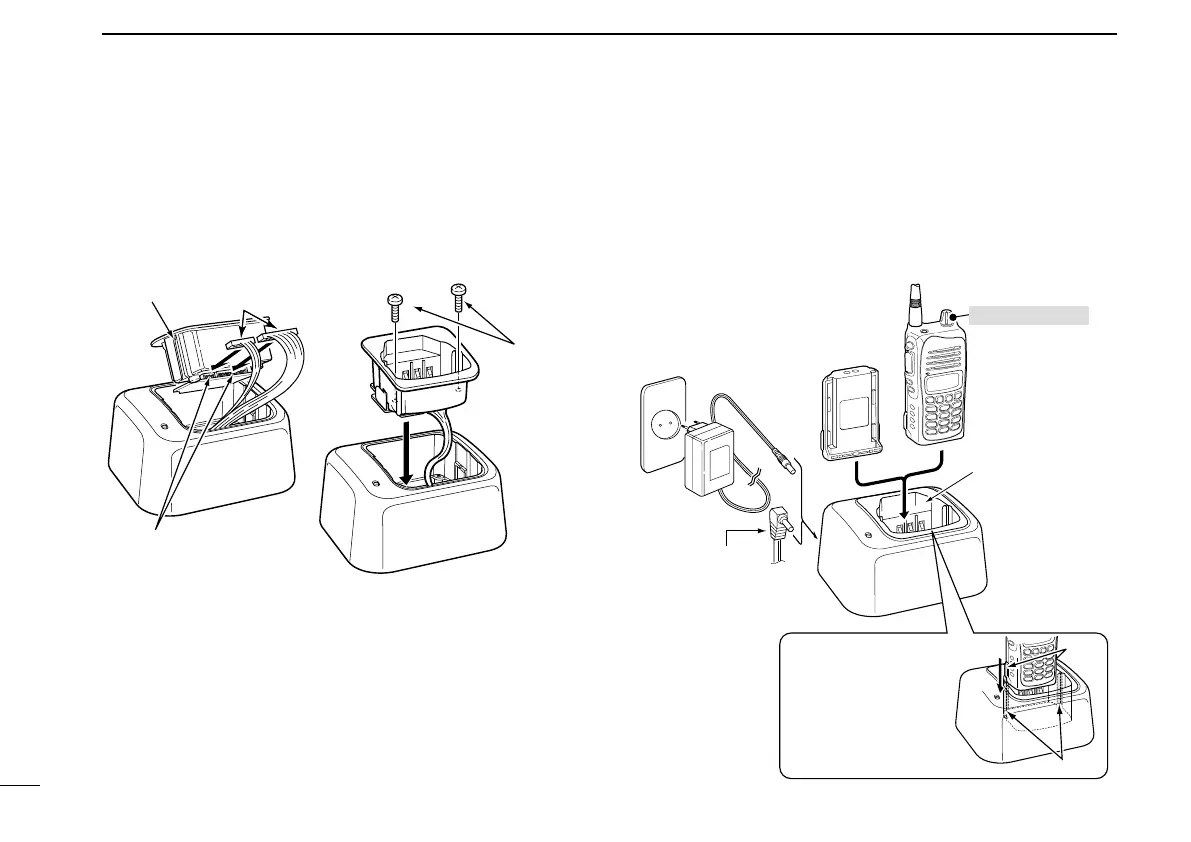

D Installing AD-106
➥ Connect the AD-106 charger adapter and the BC-119N
or BC-121N as shown below (q). Then install the AD-106
into the holder space of the BC-119N or BC-121N with the
supplied screws (w).
D Rapid charging with the BC-119N+AD-106
The optional BC-119N rapidly charges the battery packs. The
following accessories are additionally required.
• AD-106 charger adapter.
• A power adapter (may be supplied with BC-119N, depending on the
charger version) or the OPC-515L DC power cable.
27
7
BATTERY PACKS AND CASE
Screws
(supplied with
AD-106)
Connectors
Plugs
q
w
The AD-106 charger
adapter is installed
in the BC-119N.
Power adapter
(Not supplied with
some versions.)
Optional OPC-515L*
(for 13.8 V power
source) can be used
instead of the power
adapter.
Battery
pack
Tu rn OFF power
IMPORTANT!
Ensure the guide tabs
on the battery pack are
correctly aligned with
the guide rails inside
the charger adapter.
Tabs
Guide rails
*About OPC-515L
CAUTION: NEVER con-
nect the OPC-515L to a
power source using re-
verse polarity. This will
ruin the battery charger.
White line : +
Black line : _
To Next Page
