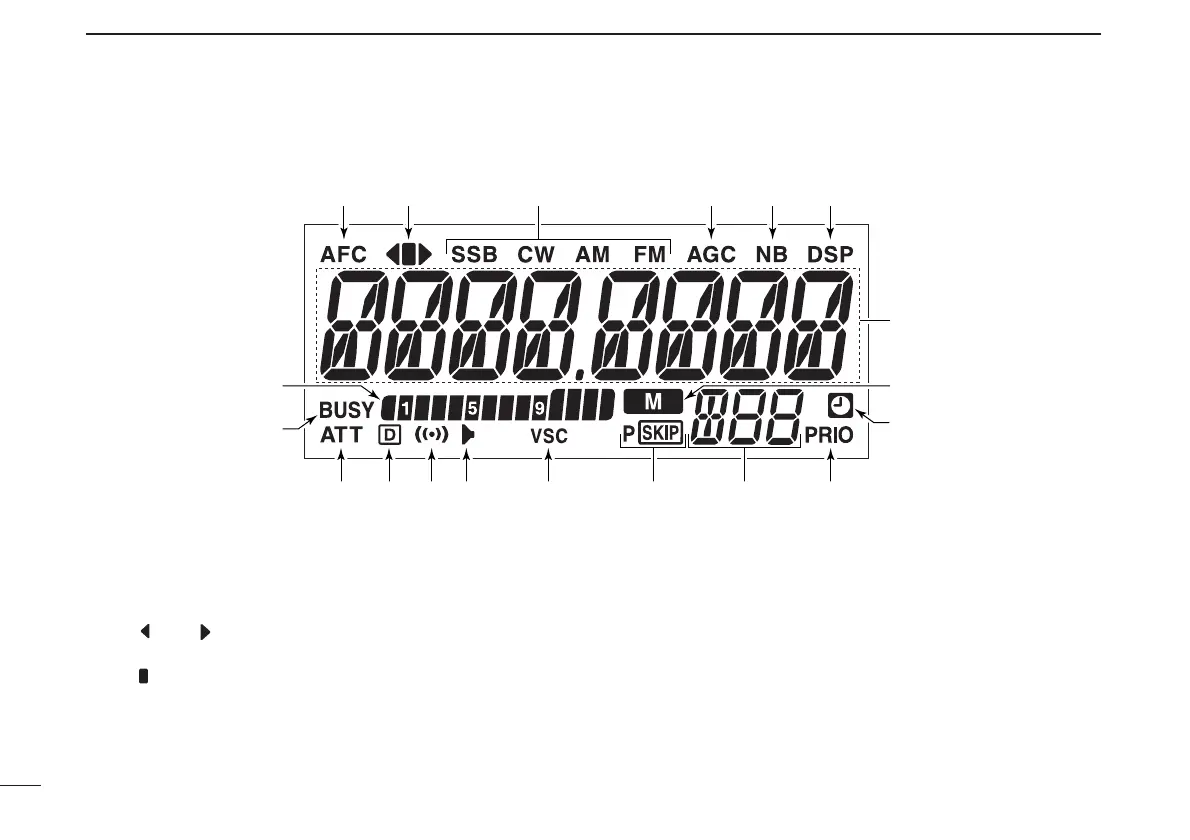

PANEL DESCRIPTION
qAFC INDICATOR
Appears when the AFC function is in use. ((p. 13))
wFM CENTER INDICATORS
➥ “” or “ ” appears when the received signal is not
tuned to its center frequency; or the squelch is closed.
➥ “” appears when the received signal is tuned to its
center frequency.
eRECEIVE MODE INDICATORS
Shows the selected receive mode.
• SSB (LSB/USB), CW, AM and FM (FM/WFM) are available.
rAGC INDICATOR ((p. 12))
Appears when the AGC fast is selected in SSB, CW or AM
mode.
tNB INDICATOR ((p. 12))
Appears when the NB function is in use.
e r t yq w
!7 !6 !5 !4 !3 !0
o
u
!8
!2 !1
i
!9
■ Function display—controller
