3 - 1

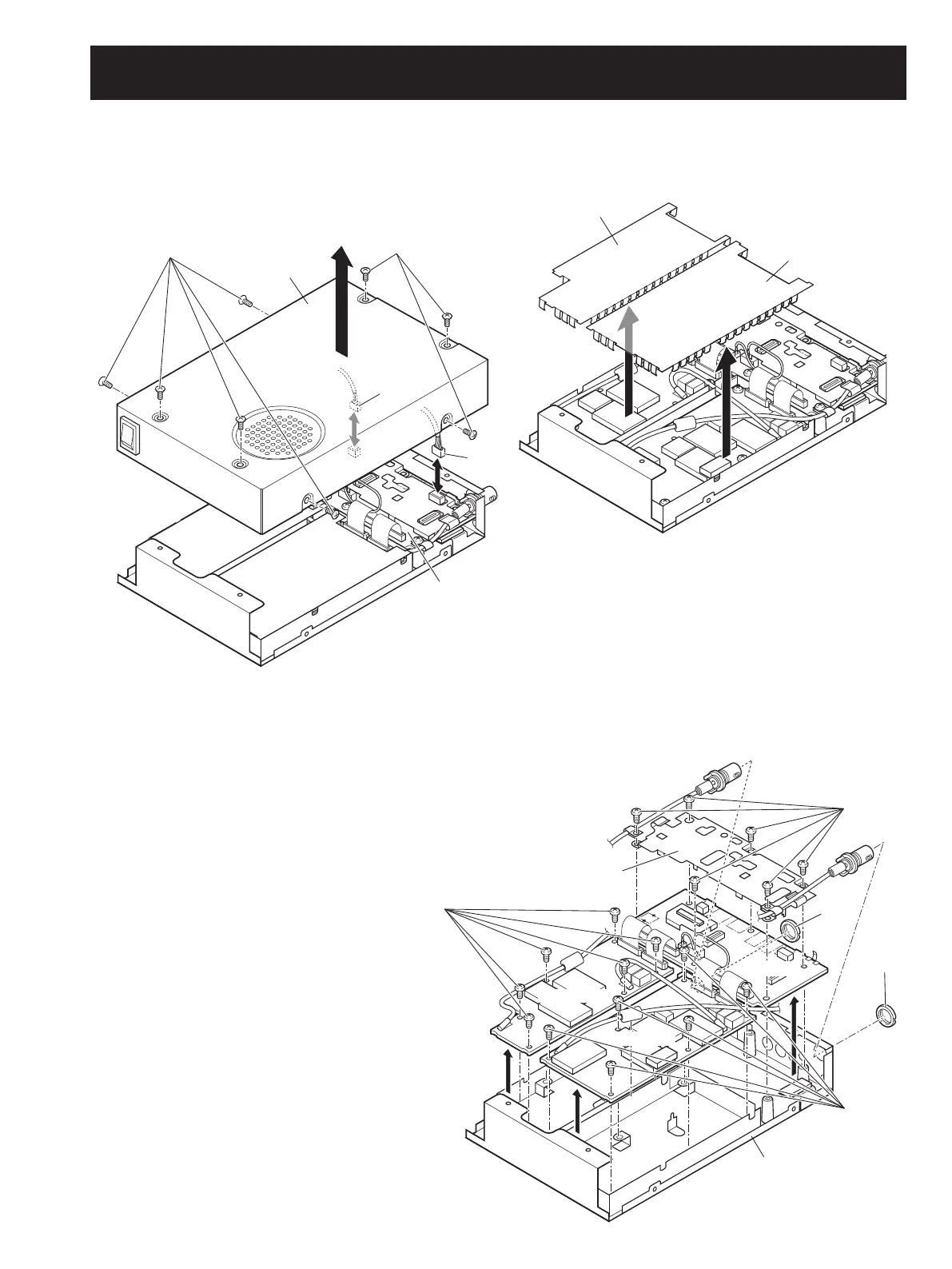

SECTION 3 DISASSEMBLY INSTRUCTIONS
Removing the top cover and shield covers
q Unscrew 8 screws, A.
w Unplug the connectors B and C from the LOGIC unit.
e Remove the top cover in the direction of the arrow.
r Remove the shield covers D and E* in the direction of
the arrow.
Removing the LOGIC unit, MAIN-A unit and MAIN-B* unit
q Unscrew nut F*, G.
w Unscrew 6 screws H from the LOGIC unit and remove the LOGIC plate.
e Unscrew 6 screws I from the MAIN-A unit and 6 screws J* from the MAIN-B unit*.
r Remove the units in the direction of the arrows.
Top cover
A
B
C
D
E
LOGIC Unit
A
*
F
G
Chassis
LOGIC UNIT
LOGIC Plate
*
*
MAIN-A UNIT
MAIN-B UNIT*
H
I
J
* IC-PCR2500 only
* IC-PCR2500 only
