10
3
BATTERY PACKS
■ Installing batteries in the
battery case

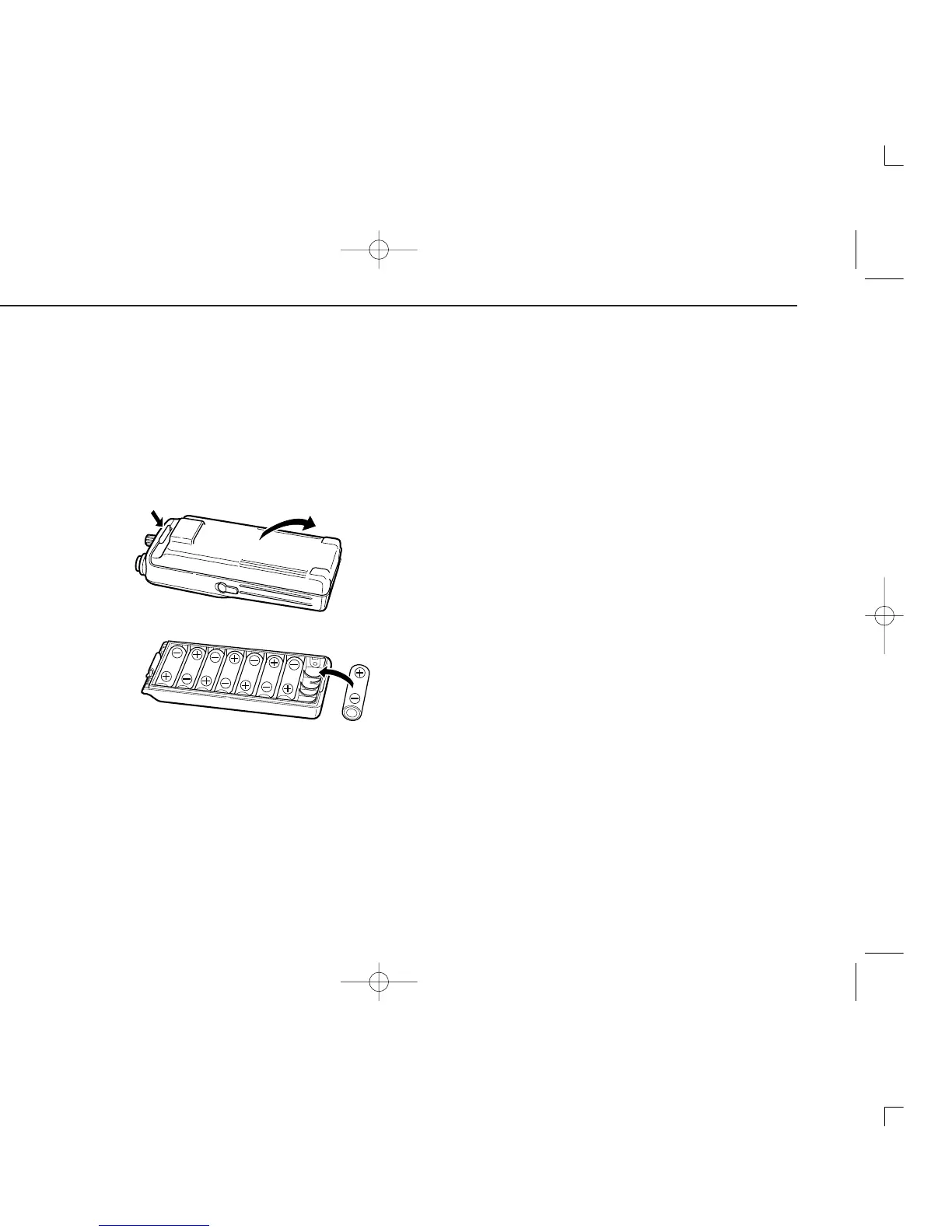

When using a battery case attached to the transceiver, install
8 AA(R6) size Ni-Cd or alkaline batteries as illustrated below.
➀ Remove the bat-
tery case from the
transceiver.
➁ Install 8 × R6(AA)
size Ni-Cd or alka-
line batteries.
• Be sure to observe
the correct polarity.
● NEVER connect DC power to the transceiver when in-
stalling dry cell or alkaline batteries. Such a connection will
damage the transceiver.
● Be careful of battery overcharging. When operating via ex-
ternal DC power, installed batteries are simultaneously
charged.
● Keep battery contacts clean. It’s a good idea to clean bat-
tery terminals once a week.
IC-T2H Manual 01.12.5 4:31 PM Page 10 (1,1)
