PANEL DESCRIPTION
New2001
1
DD

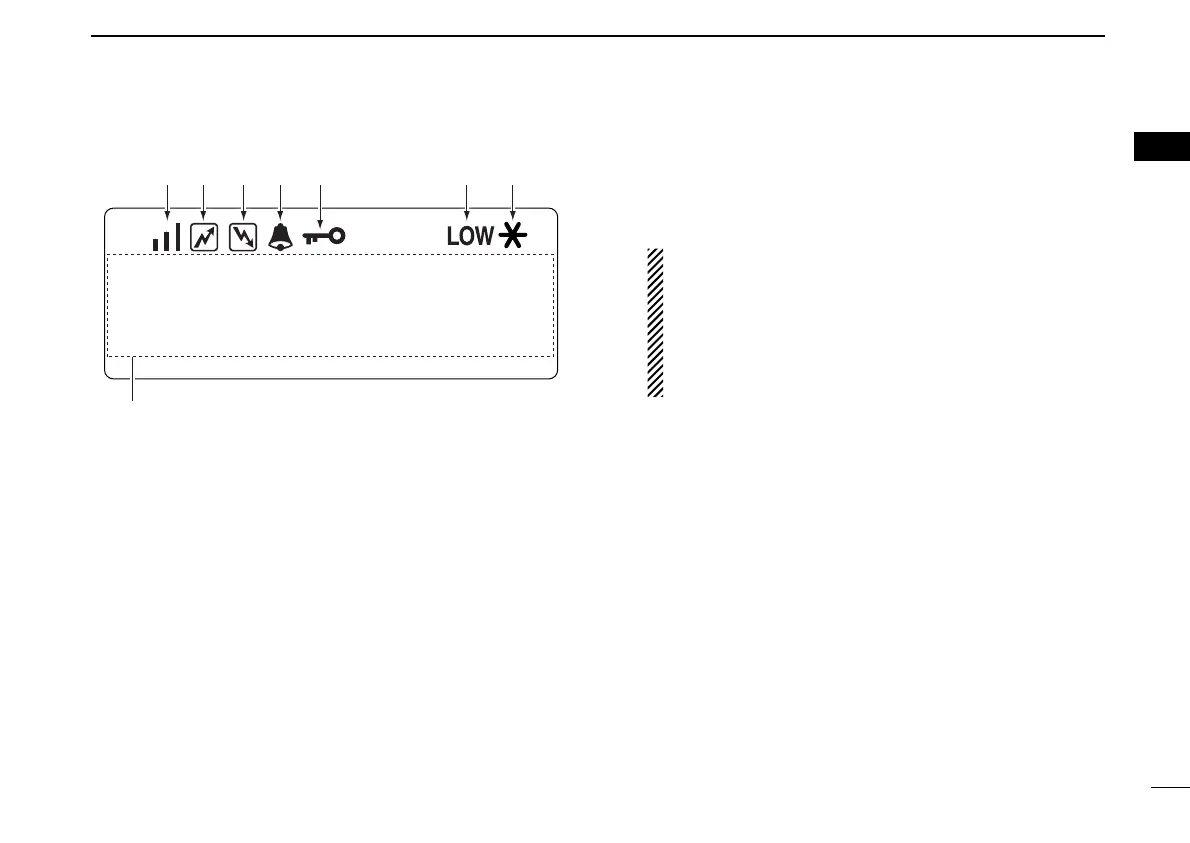

Function display
qS/RF INDICATORS
➥ Shows the relative signal strength while receiving sig-
nals in 3 steps.
➥ Shows the output power level while transmitting.
wTRANSMIT INDICATOR
Appears while transmitting.
eBUSY INDICATOR
Appears when a signal is being received, the squelch is
open, or the monitor function is activated.
NOTE: If this indicator appears and no audio is heard it
is one of several conditions.
1. Verify audio level setting.
2. Verify connection of external speaker.
3. FM: Signal coming in, but does not match TSQL.
Digital Voice: Incoming signal does not match call
signs in the call sign squelch list.
rPOCKET BEEP INDICATORS (p. 94)
Appears when the pocket beep function is activated.
tLOCK INDICATOR (p. 38)
Appears when the lock function is in use.
yLOW POWER INDICATOR
Appears when low output power is selected.
uMESSAGE INDICATOR
Blinks when a message is received. (p. 51)
iMULTI-FUNCTION INDICATOR
Shows variety of information, such as the operating fre-
quency, operating mode, memory names, set mode item
and conditions.
1294.500
FM RP-
M00
q
i
wert y u
