19
3
DRIVER INST
ALLA
TION
New2001
e

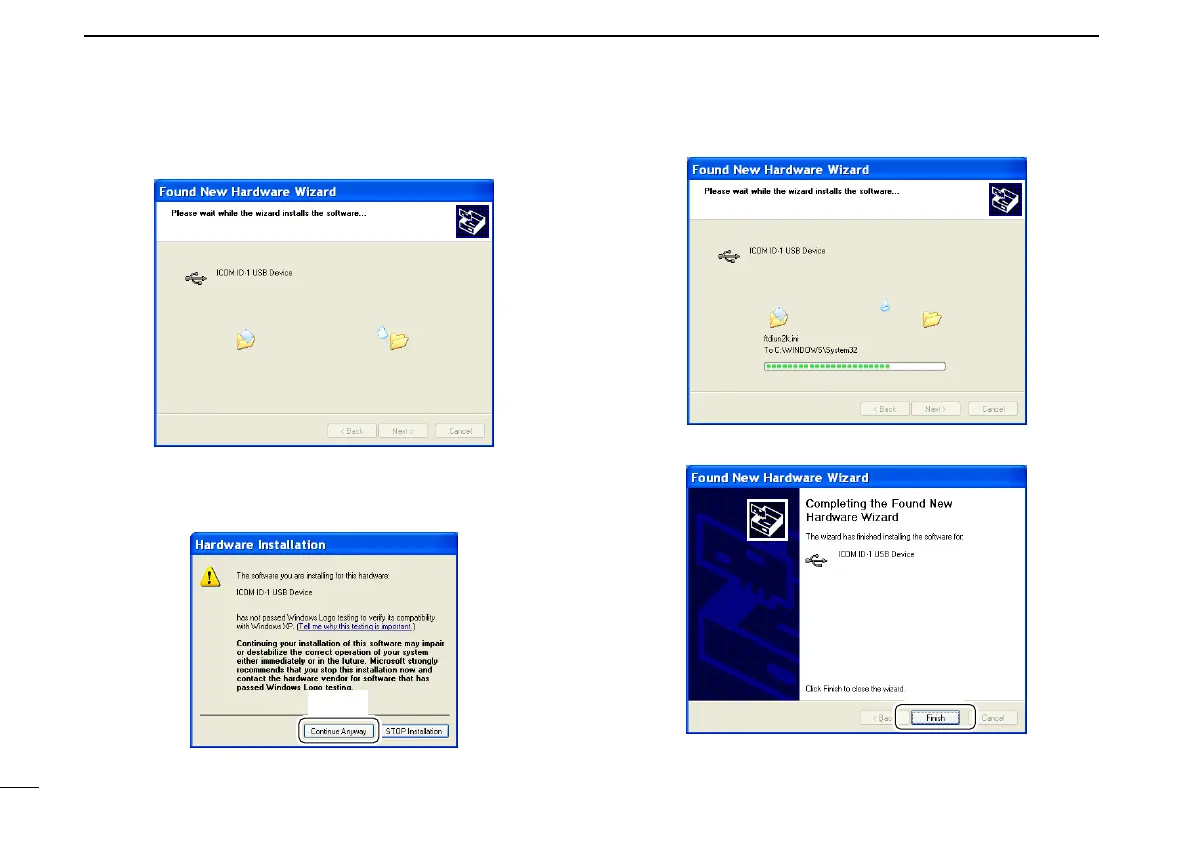

The wizard starts searching for the driver and shows the
dialog below during search.
r
After the driver is found, the
“
Hardware Installation
”
dialog
box appears as below
.
Click [Continue
Anyway] to start the installation.
t
Windows starts installing the USB driver
.
y
After the installation is completed, click [Finish].
Click
Click
ID-1_ENG_2.qxd 04.9.22 9:29 Page 19 (1,1)
25
27
Table of Contents
Default Chapter
2
Important
2
Explicit Definitions
2
Precaution
3
Supplied Accessories
5
Table of Contents
6
1 Panel Description
8
I Front Panel
8
I Rear Panel
9
I Microphones (HM-118N)
10
I Application Screens (on PC Screen)
11
I Remote Controller (RC-24; Optional for some Versions)
16
2 Installation and Connections
20
I Unpacking
20
I Selecting a Location
20
I Antenna Connection
20
I Power Supply Connections
22
I Microphone and Speaker Connections
23
I Connecting a PC
24
3 Driver Installation
25
I Microsoft Windows XP
25
I Microsoft Windows 98/Me
29
I Microsoft Windows 2000
30
I COM Port Confirmation
35
4 Application Installation
37
5 Basic Operation
39
I Preparation
39
I Squelch Level Adjustment (FM Mode Only)
40
I Audio Level Adjustment
41
I VFO and Memory Mode
41
I Setting a Frequency
42
I Tuning Step Selection
44
I Lock Function (RC-24 Only)
45
I Operating Mode Selection
45
6 Call Sign Setting
46
I Your Call Sign Setting
46
I Station/Repeater Call Sign Setting
49
7 Transmit and Receive- Voice
52
I FM Mode Operation
52
I Digital Voice Mode Operation
52
I When Receiving a Digital Call
54
I Short Message Function
56
I Monitor Function
60
8 Repeater Operation- Voice
62
I about D-STAR System
62
I General
63
I Accessing an FM Repeater
64
I Repeater Tone Frequency Setting
66
I Offset Frequency Setting
67
I Accessing a Digital Repeater
68
9 Data Operation
71
I General
71
I Precaution
71
I Internet Access
72
I Data Transferring
75
I Low-Speed Data Communication
77
10 Memory/Call Operation
78
I General Description
78
I Memory Channel Selection
78
I Call Channel Selection
79
I Programming a Memory/Call Channel
81
Main Screen
81
Memory Channel Screen
82
I Copying a Memory Contents
84
I Memory Clearing
85
I Programming Memory Name
87
I Memory Name Indication
89
11 Scan Operation
90
I Scan Types
90
I Scan Start/Stop
91
I Programming Scan Edge Channels
92
I Skip Channel Setting
95
I Scan Resume Condition
96
12 Priority Watch
97
I Priority Watch Types
97
I Priority Watch Operation
97
13 Pocket Beep and Tone/Digital Squelch
99
I Pocket Beep Operation
99
I Tone/Digital Code/Call Sign Squelch Operation
103
14 Other Functions
107
I Set Mode
107
I EMR Mode Operation
114
I Break-In Communication
116
I S-Meter Squelch
118
I AFC Function
118
I CPU Reset
119
15 Maintenance
120
I Troubleshooting
120
I Fuse Replacement
121
16 Specifications and Options
122
I Specifications
122
I Options
123
Other manuals for Icom ID-1
Service Manual
54 pages
Addendum
1 page
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Icom ID-1 and is the answer not in the manual?
Ask a question
