DIGITAL MODE OPERATION
New2001
Area 1
Zone
to another zone

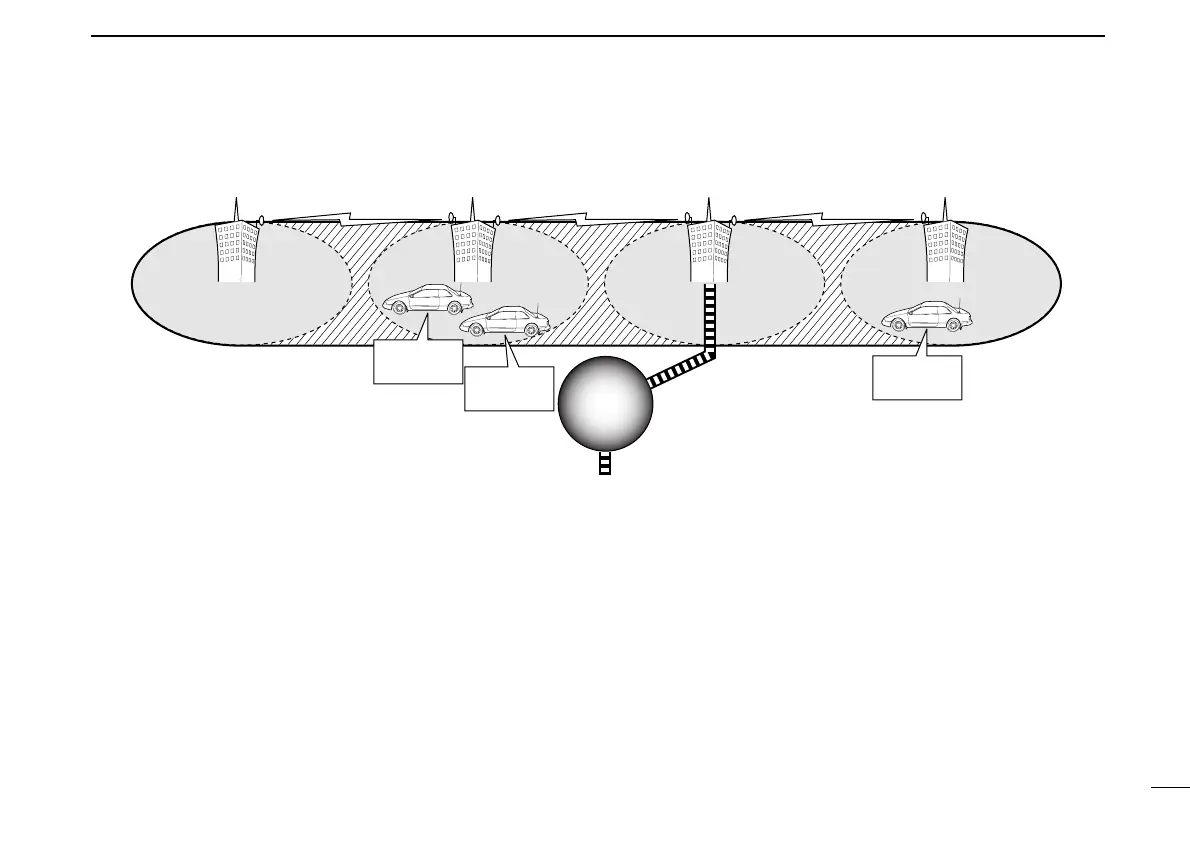

• Setting example 1
Repeater 1
: A11111
Area 2 Repeater 2
: A22222
Area 3
(Gateway)
Repeater 3
: A33333
Area 4 Repeater 4
: A44444
Internet
network
Internet
network
✔ What is the area?
The Area is the communication range that is
covered by a local repeater.
The Local repeater is called as an area repeat-
er in the D-STAR
®
system.
✔
What is the zone?
The Zone is composed of several areas, that
are linked by the 10 GHz microwave signal.
The areas 1 to 4 make up a zone in the exam-
ple above.
Station A
: A2222A
Station B
: A2222B
Station C
: A4444C
❑ The setting when the Station A is
calling the Station B
MyCALL : A2222A
UrCALL : A2222B
RPT1 C : A22222
RPT2 C : NOTUSE
❑ The setting when the Station A is
making a CQ call in area 1
MyCALL : A2222A
UrCALL : CQCQCQ
RPT1 C : A22222
RPT2 C : A11111
❑ The setting when the Station A is
calling the Station C
MyCALL : A2222A
UrCALL : A4444C
RPT1 C : A22222
RPT2 C : A44444
