Service and Maintenance 5-16

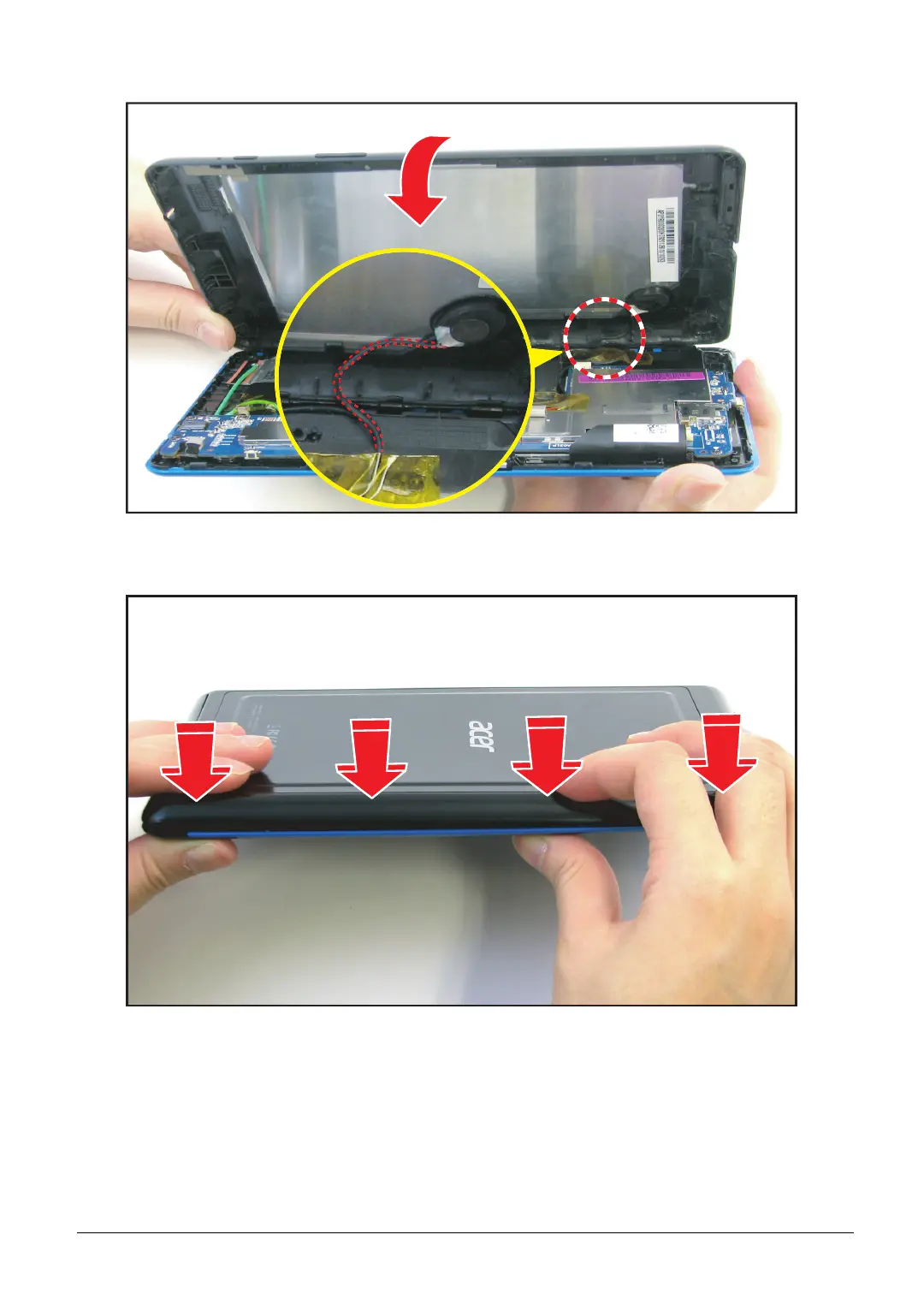

5. Route the speaker cable to hold it in place as the lower case is attached to the bezel.
Figure 5-21. Routing the Speaker Cable
6. Align and snap the left side latches to attach the lower case to the bezel.
Figure 5-22. Installing the Lower Case (1 of 4)
