5-17 Service and Maintenance

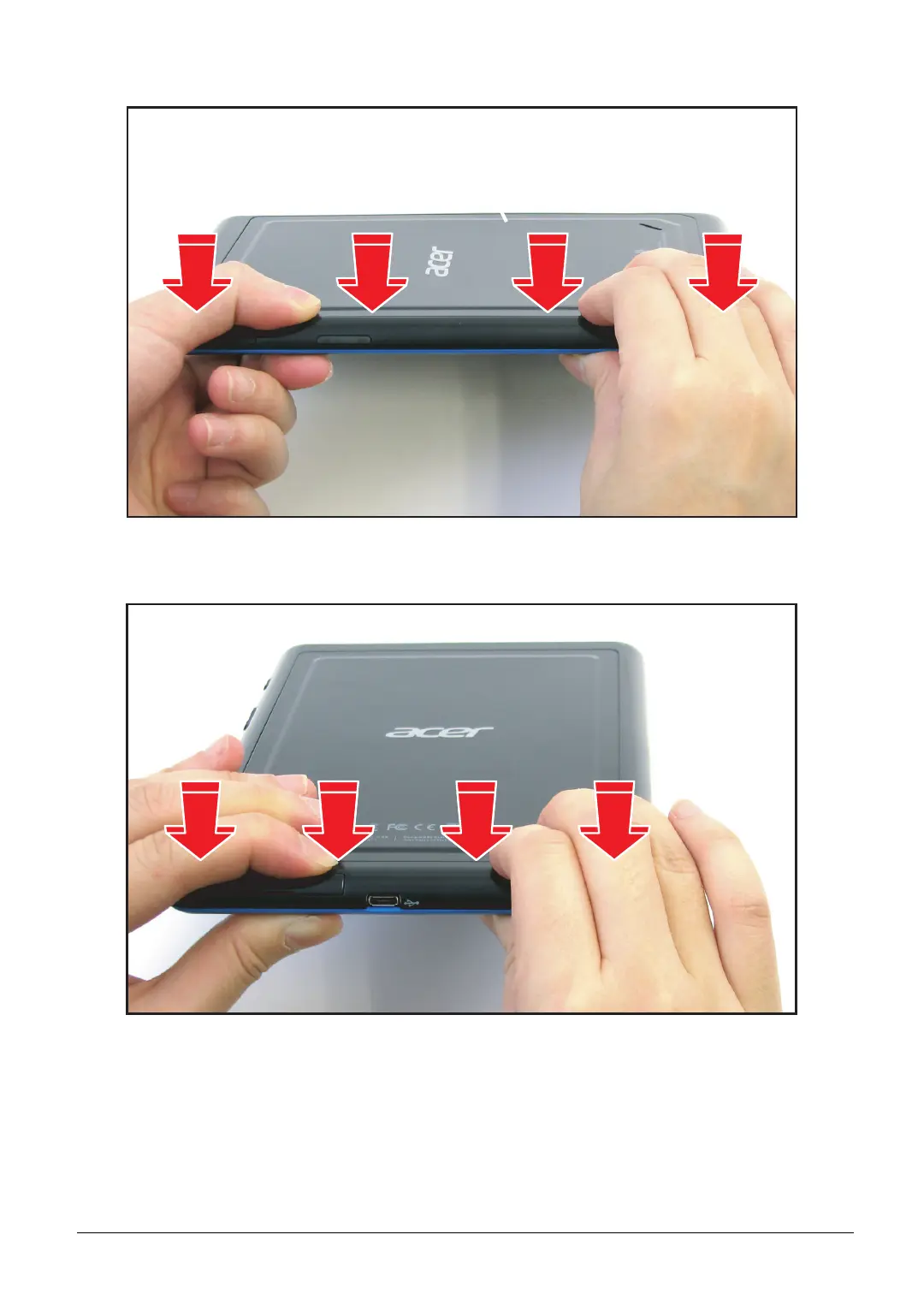

7. Snap the right side latches.
Figure 5-23. Installing the Lower Case (2 of 4)
8. Snap the bottom side latches.
Figure 5-24. Installing the Lower Case (3 of 4)
