ICS Nav6 User Manual

Page 6

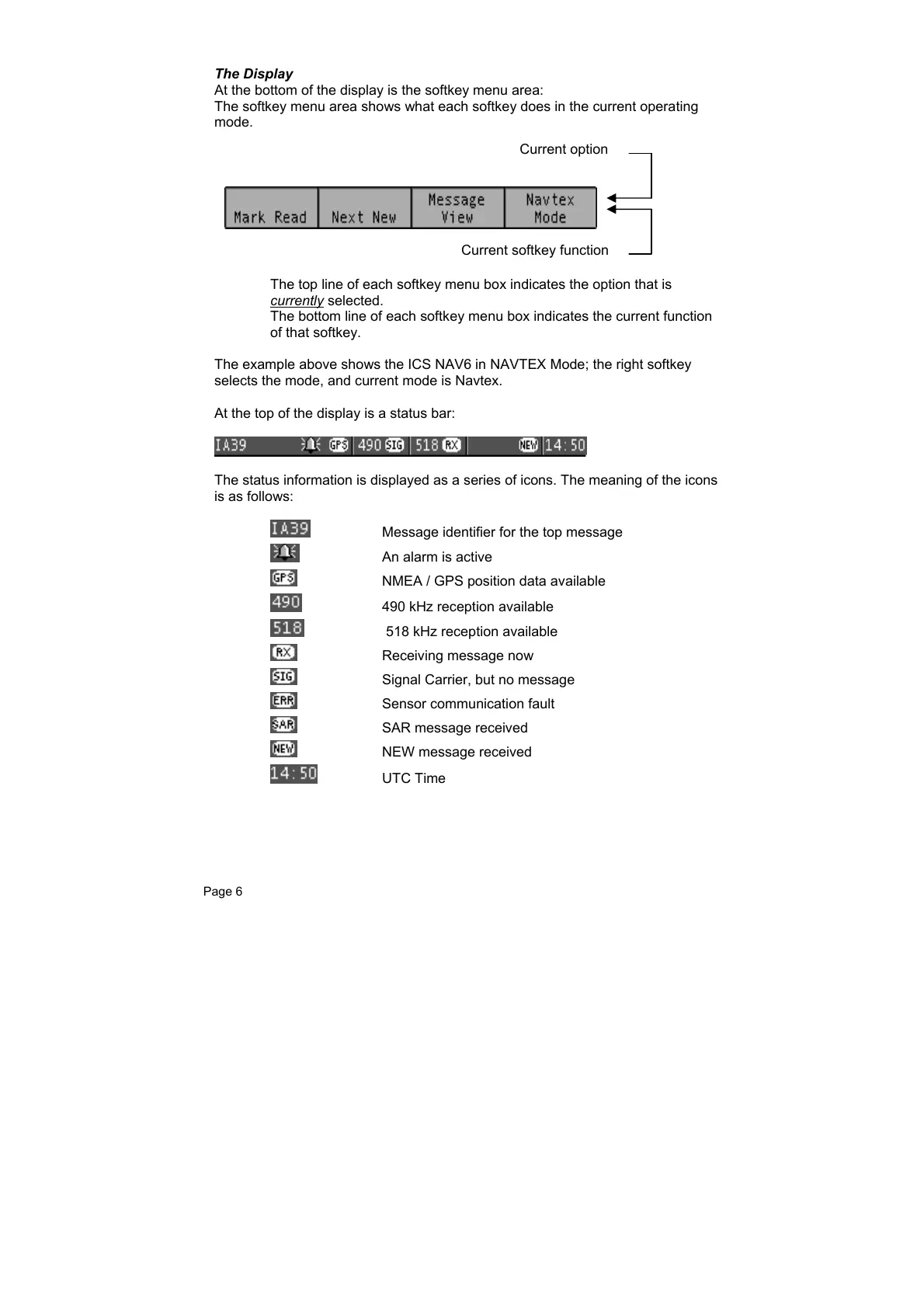

The Display
At the bottom of the display is the softkey menu area:
The softkey menu area shows what each softkey does in the current operating
mode.
The top line of each softkey menu box indicates the option that is
currently
selected.
The bottom line of each softkey menu box indicates the current function
of that softkey.
The example above shows the ICS NAV6 in NAVTEX Mode; the right softkey
selects the mode, and current mode is Navtex.
At the top of the display is a status bar:
The status information is displayed as a series of icons. The meaning of the icons
is as follows:
Message identifier for the top message
An alarm is active
NMEA / GPS position data available
490 kHz reception available
518 kHz reception available
Receiving message now
Signal Carrier, but no message
Sensor communication fault
SAR message received
NEW message received
UTC Time
Current softkey function
Current option

ICS Nav6 Specifications

Power

voltage range	10.8V to 15.6V
standby power consumption	1.5 W at 12V
printing power consumption	2.5 W at 12V

Operating Environment

operating temperature range	0 to +40°C
storage temperature range	-20 to +55°C
humidity	0 to 95%

Weight and Dimensions

weight without cable	1200 g
paper roll width	80mm
paper roll length	20m
