16
Concord Super Series 4 - Installation & Servicing
LEGEND
br - brown
b - blue
r - red
g - grey
v - violet
pk - pink
y - yellow
w - white
or - orange
bk - black
g/y - green/yellow

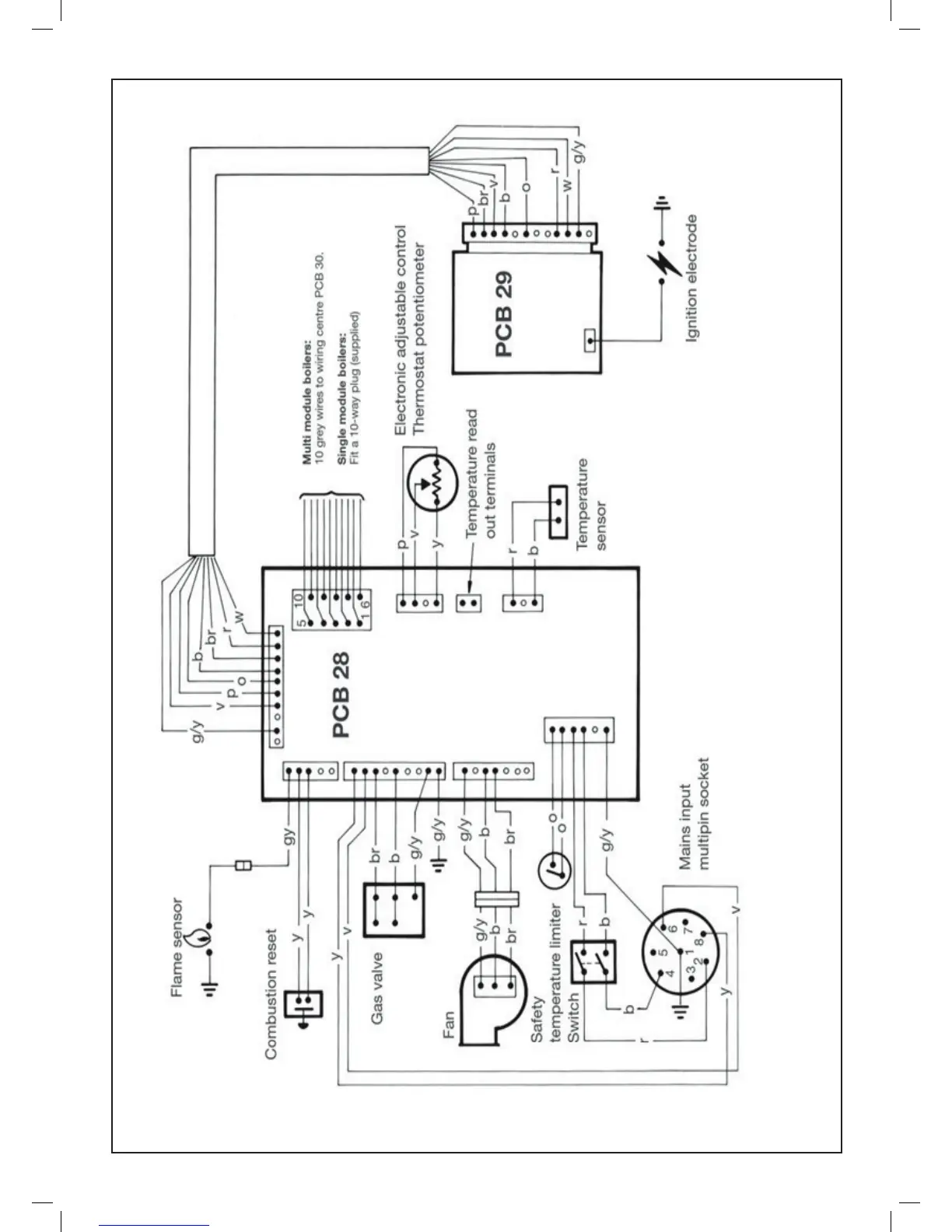

13 50KW MODULE WIRING
