4. Utilities

4.1. Card Printer Config

SMART-21 is produced with optimized setting. You need to adjust setting value if required or

spare parts are replaced using CardPrinterConfig in the “Utilities package”.

(Available for download at www.idp-corp.com)

You can adjust following settings with CardPrinterConfig.

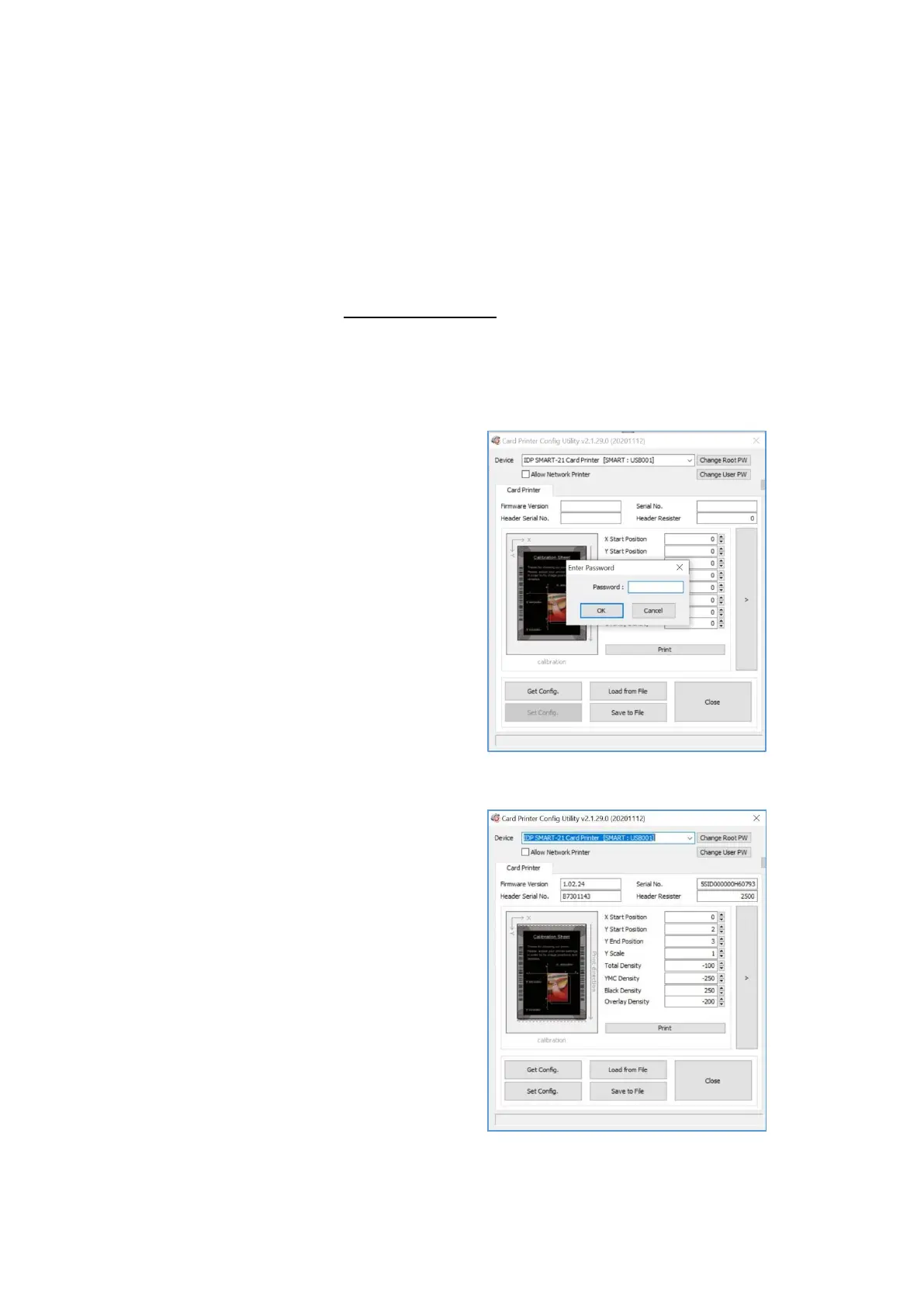

(1) Run CardPrinterConfig

Password input window is displayed when

you run this program. If you input the

correct password, the recorded setup value

will be shown and you can change values.

The password is saved to SMART-21

printer. So if you use another PC with same

printer, previous password is required to

run this program. (Default password is

none. Please press OK if you have not set

password.)

Figure 46

CardPrinterConfig Log-in

When you are successful to log-in, you can

set values shown as left picture.

Figure 47

CardPrinterConfig start

Main Page
