Figure 49 SMART-21 RW density

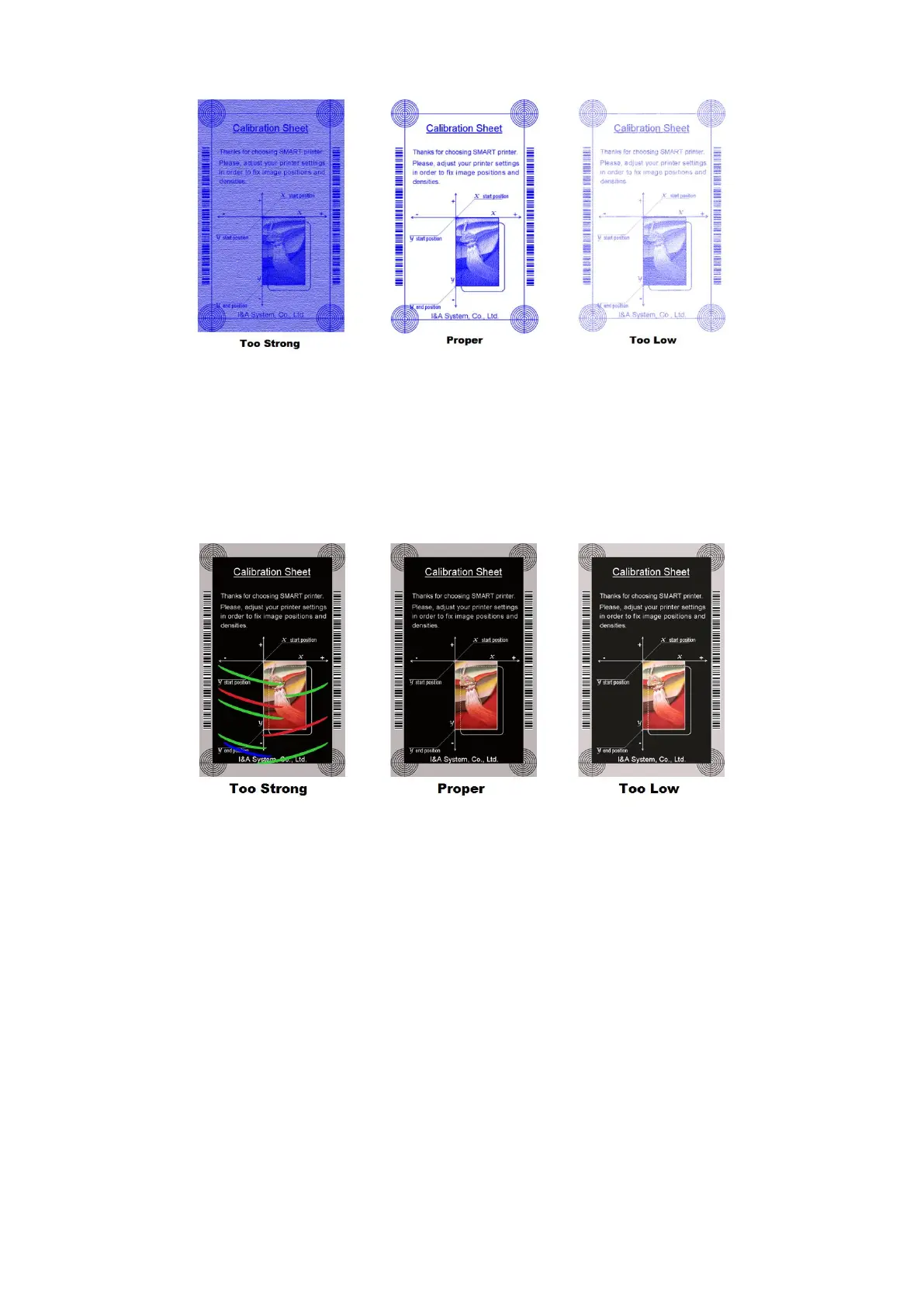

YMC Density: To set color density. Please maximize YMC density as you can, which

enables to express range of color and vivid images. If it is too strong, green or red

marks are appeared. If it is too weak, the print quality will be dull.

Figure 50 Color density

Black Density: To set resin black density. In the picture, barcode is printed to express

density.

When density is too strong, barcode is printed too thick. When density is too weak,

barcode is too thin. Please adjust resin black density to express clear barcode. Please

refer to the following pictures.
