Product overviewp.14

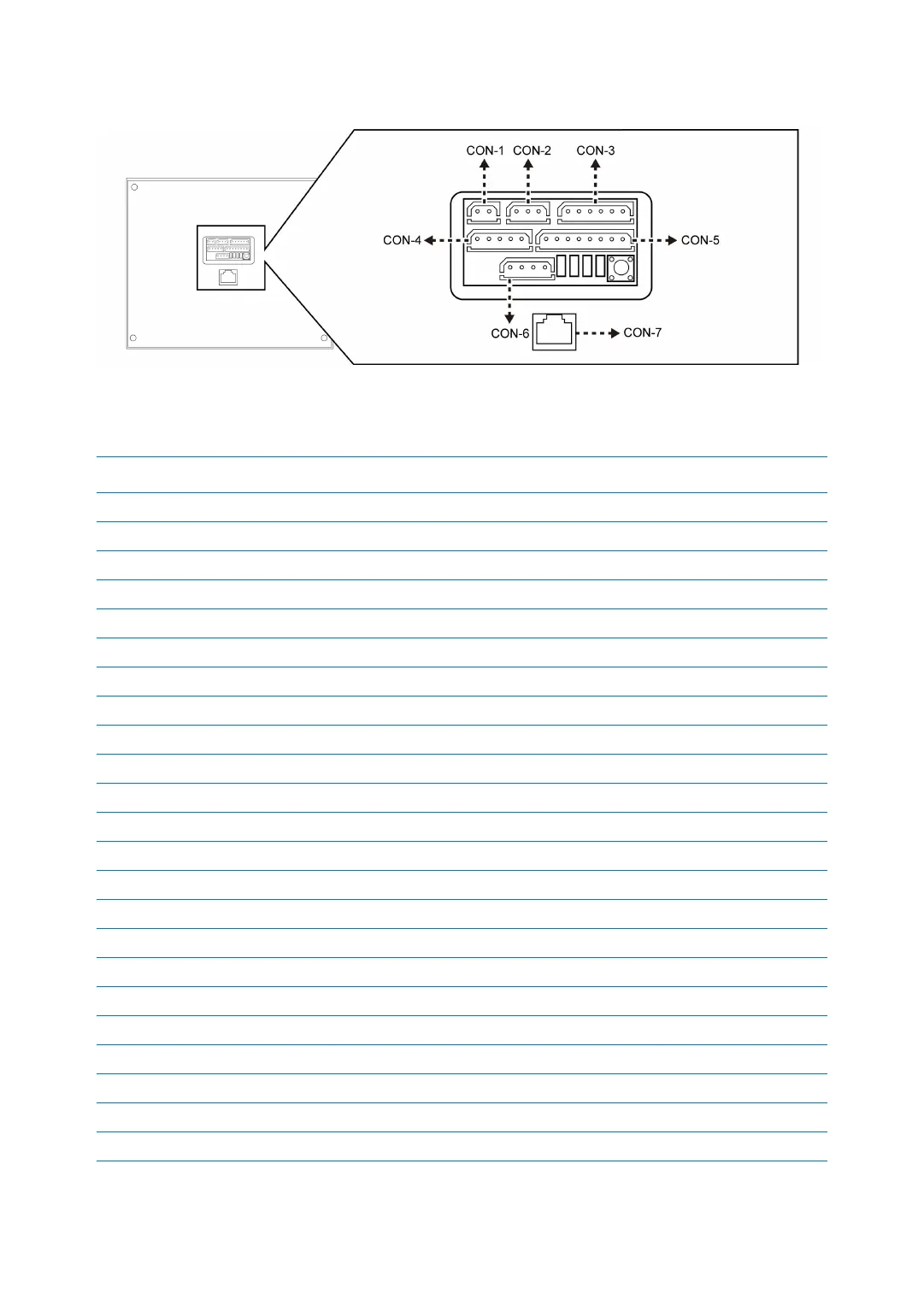

2.2 6.2.2 Connection Layout
2.3 6.2.3 Color Coded & Wring Table
I/O PORT NAME SIGNAL NAME WIRE COLOR
CON-1(2PIN CONNECTOR)
Main Power (+12V) DC 12V Red
Power Ground GND (-) Black
CON-2 (3PIN CONNECTOR : Serial Printer)
RS232-RX RXD Pink wire with white stripe
RS232-TX TXD Cyan wire with white stripe
RS232-GND GND Black
CON-3 (6PIN CONNECTOR)
TTL OUTPUT #1 TTL#1, WD0 Orange wire with white stripe
TTL OUTPUT #2 TTL#2, WD1 Brown wire with white stripe
Aux Input #1 IN#1 Green
Aux Input #2 IN#2 Green wire with white stripe
Wiegand DATA 0 DATA-0 Pink
Wiegand DATA 1 DATA-1 Cyan
CON-4 (5PIN CONNECTOR)
RS485-RTX(+) RS485-A(+) Yellow wire
RS485-RTX(-) RS485-B(-) Gray wire
RS232-TX TXD Black wire with white stripe
RS232-RX RXD Red wire with white stripe
RS232-GND GND Black
CON-5 (8PIN CONNECTOR)
Door RELAY(NC) NC(1) Blue wire with white stripe
Door RELAY(COM) COM(1) Gray wire with red stripe
To Next Page
