Communication
9
p.27

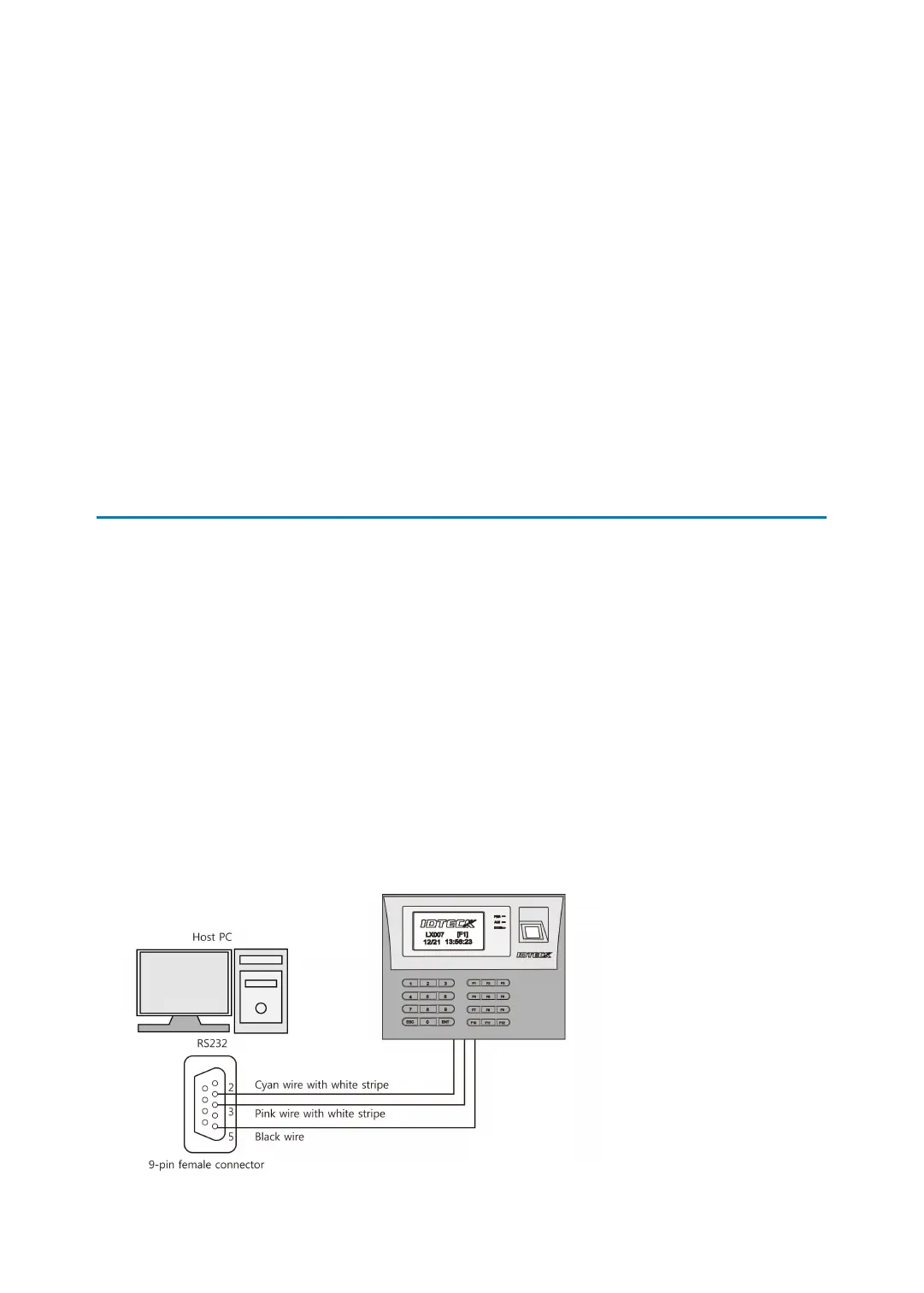

1 RS232 Communication Port Connection
A 9-pin connector (Serial communication connector, female) is needed to connect the LX00
7 with a host PC via RS232 communication.
Please follow the steps below.
1. Connect RS232-TX (Black wire with White stripe) to the pin #2 (RXD) of the 9-pin conn
ector.
2. Connect RS232-RX (Red wire with White stripe) to the pin #3 (TX) of the 9-pin connect
or.
3. Connect GND (Black wire) to the pin #5 of the 9-pin connector.
4. Plug in the 9-pin female connector to of the host PC.
5. Install and run the LX007 Application Software.
