Setting Changesp.50

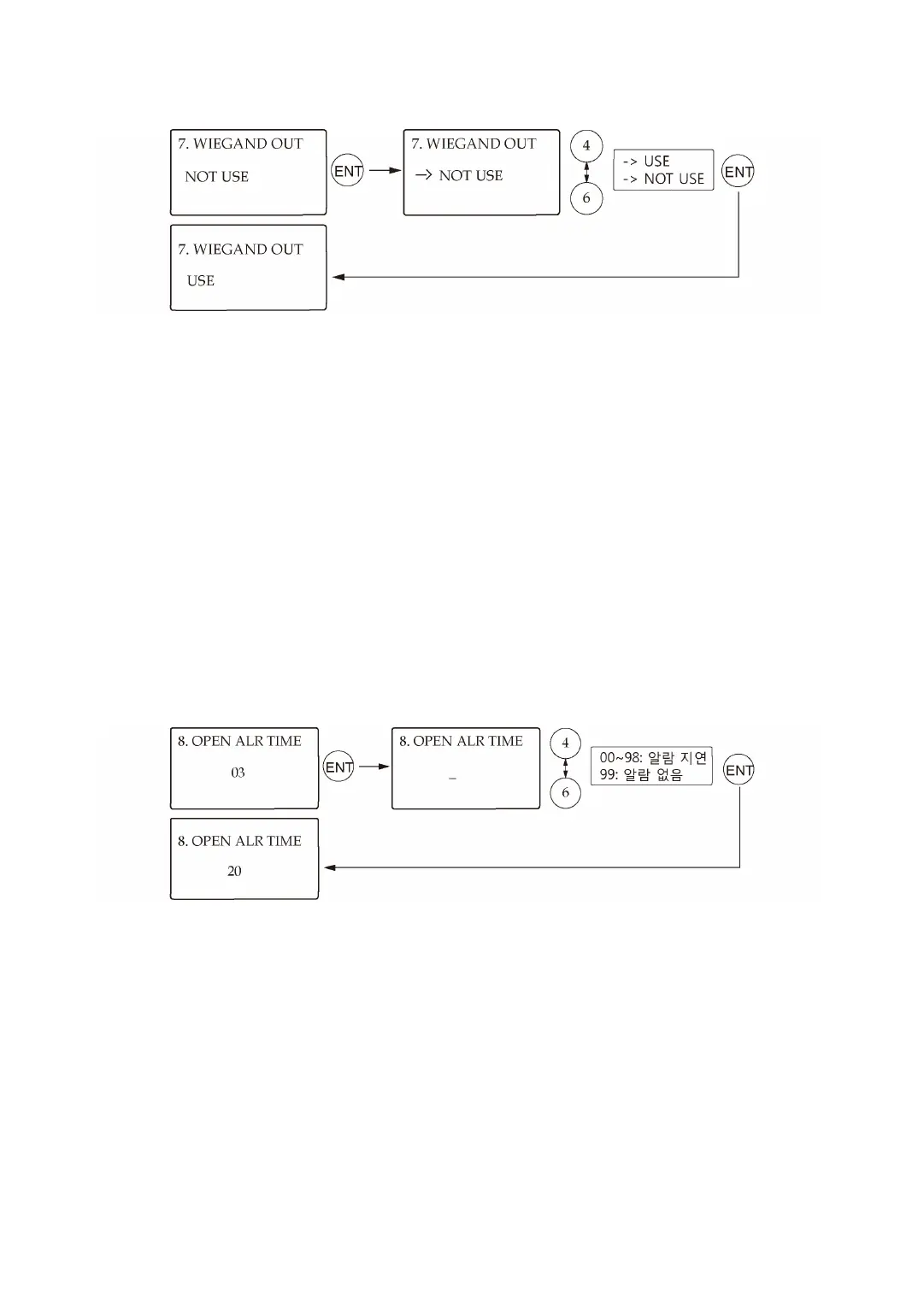

2.7 Wiegand Output
This feature allows you to use the LX007 as a reader (as opposed to as a controller). If this se
tting is set to USE, the LX007 sends 26bit Wiegand Output through two TTL output ports. (T
he LX007SR sends out 34bit Wiegand output.)
NOT USE
Normal TTL outputs will be activated.
USE
26bit Wiegand outputs will be generated through TTL1 and TTL2 ports. When a regist
ered card is read, the “ID SCANNING OK” message will appear on the LCD. (TTL1 : Dat
a 0 TTL2 : Data 1)
2.8 Door Open Alarm Time Setting
The Door Open Alarm Time is the delay between the point at which the Door Relay Time fini
shes and the point at which the Door Open Alarm starts ringing.
00
The alarm will ring immediately past the Door Relay time if the door is left open.
01-98
Delay (01-98 sec.) will be inserted before an alarm is triggered.
To Next Page
