ACCURA9/9L INSTRUCTION MANUAL

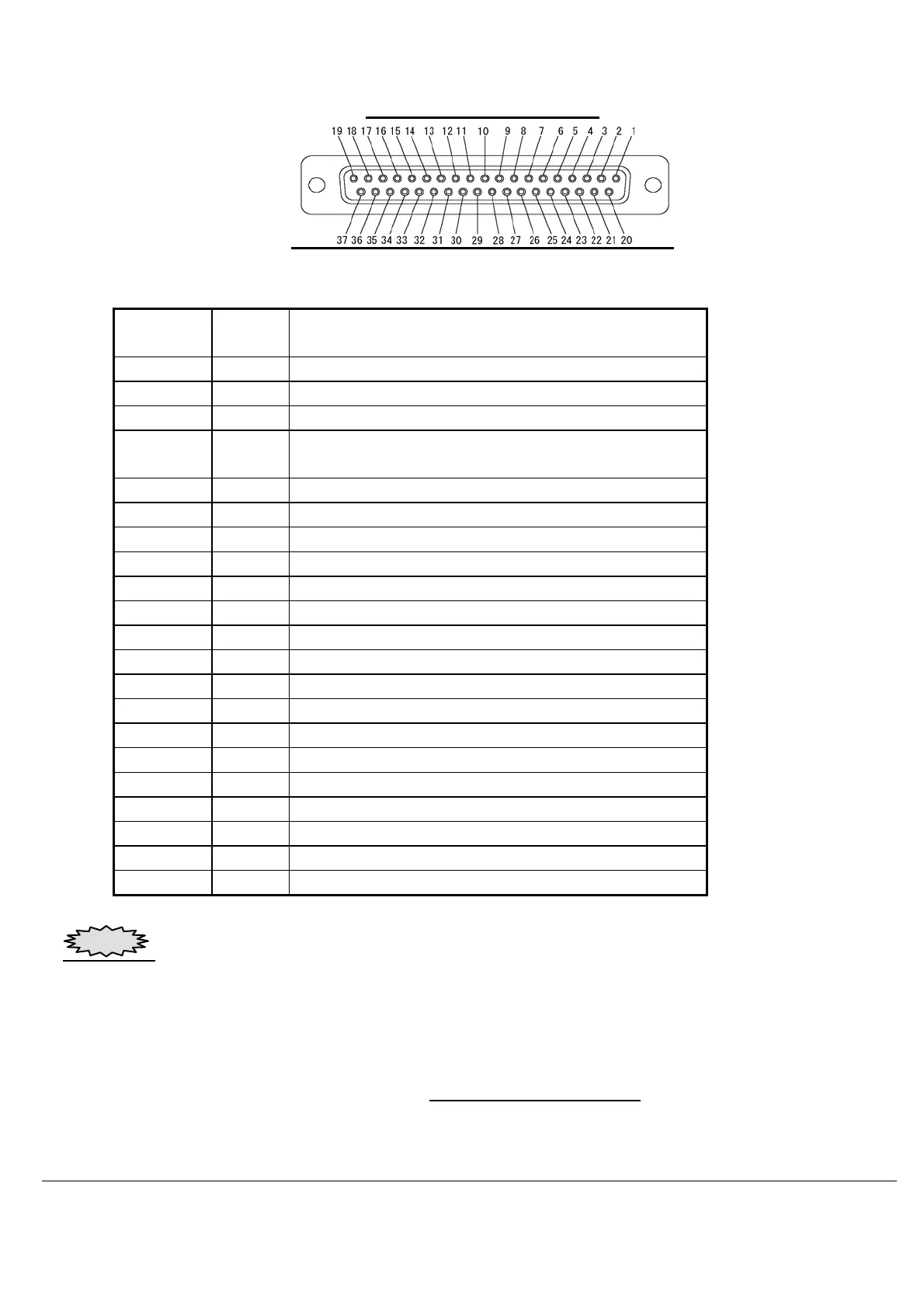

I/O PORT 2 ・Pin location
* Connector is placed beside of dispenser.
PIN No. In out
put
１
Power +24V power source
（
0.2A MAX
）
SW3:OUT
２
Power +24Vpower source
（
0.2A MAX
）
SW3:OUT
３
Output Emptu alarm signal
４
Output
ＳＴＥＡＤＹ
signal
５
Output
ＰＯＷＥＲ ＯＮ
signal
６
Output
ＳＨＯＴ ＥＮＤ
signal
１５ ＧＮＤ ＧＮＤ
１６ ＧＮＤ ＧＮＤ
１７ ＧＮＤ ＧＮＤ
２０
Power +24V power source
（
0.2A MAX
）
SW3:OUT
２１
Power +24V power source
（
0.2A MAX
）
SW3:OUT
２２
Output Alarm
／
Error signal
２３
Output
ＡＵＴＯ
signal
２４
Output
ＢＵＳＹ
signal
２５
Output Counter signal
３４ ＧＮＤ ＧＮＤ
３５ ＧＮＤ ＧＮＤ
３６ ＧＮＤ ＧＮＤ
Remark
:
1. Do not connect all other ones except the above pin numbers.
2. Use cable with shielding to connect with external system and gound shielding beside the external
system.
3. Do not tie signal cable with power line such as AC100V and keep a distance between them.
4. Never connect with 24V outer power input when except at SW3: IN
. It may cause malfunction.
