ACCURA9/9L INSTRUCTION MANUAL
11 Interface of Input/Output signals

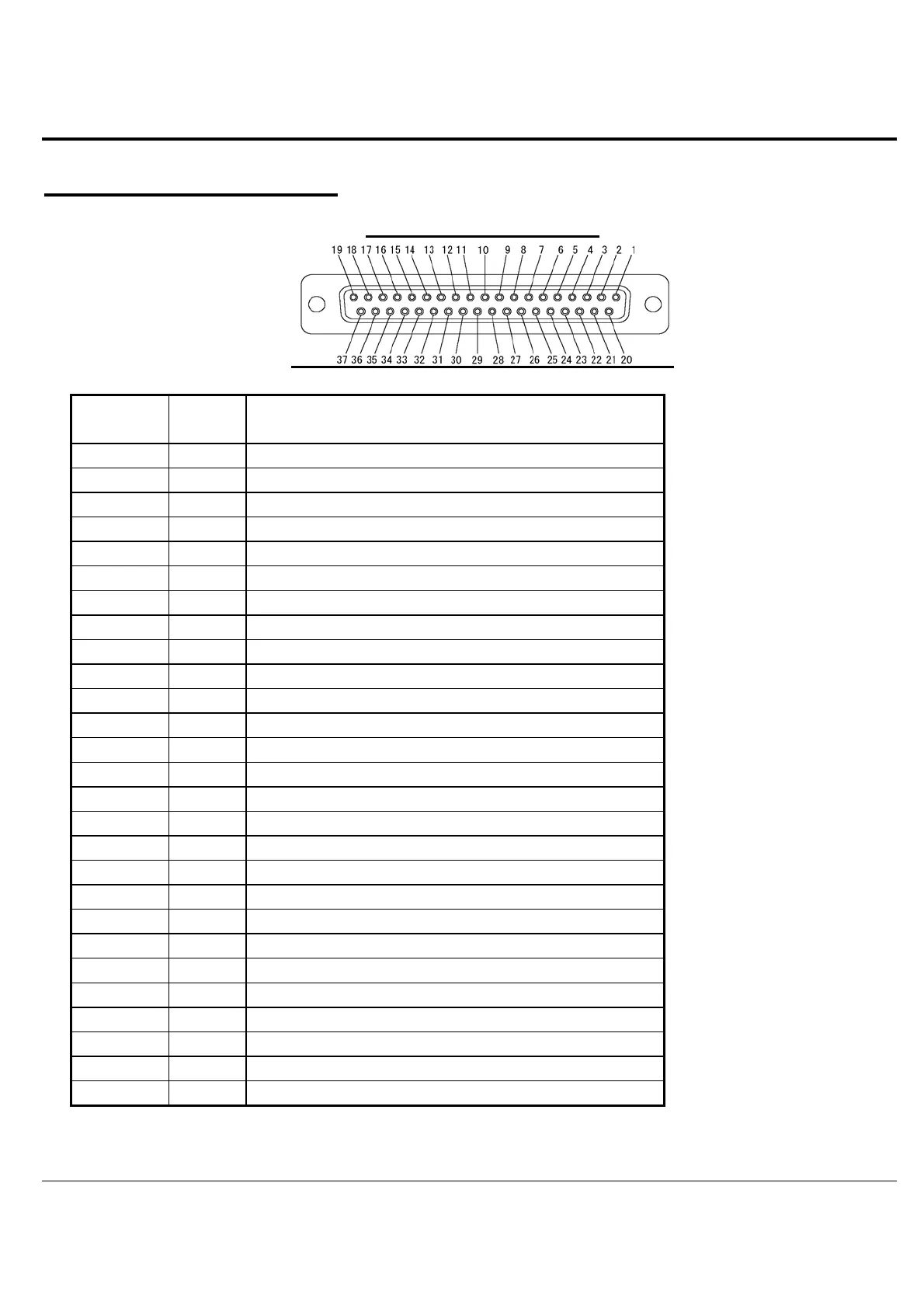

11.1Connector and Pin layout
I/O PORT 1 ・Pin location
PIN No. In out
put
Signal
１
Input External power source(+8V
〜
+40V) SW1:EXT
２
Input External power source (+8V
〜
+40V) SW1:EXT
３
Input
Ｄ０ １Ｓ
Channel selection signal
（
one place
）
４
Input
Ｄ０ ４Ｓ
Channel selection signal
（
one place
）
５
Input
Ｄ１ １Ｓ
Channel selection signal
（
two places
）
６
Input
Ｄ１ ４Ｓ
Channel selection signal
（
two places
）
７
Input
ＳＨＯＴ ＯＦＦ
signal
８
Input
ＳＨＯＴ ＳＴＡＲＴ
signal
９
Input Alarm clear signal
１０
Input Remote shift signal
１５ ＧＮＤ ＧＮＤ
１６ ＧＮＤ ＧＮＤ
１７ ＧＮＤ ＧＮＤ
２０
Input External power source (+8V
〜
+40V) SW1:EXT
２１
Input External power source (+8V
〜
+40V) SW1:EXT
２２
Input
Ｄ０ ２Ｓ
Channel selection signal
（
one place
）
２３
Input
Ｄ０ ８Ｓ
Channel selection signal(one place
）
２４
Input
Ｄ１ ２Ｓ
Channel selection signal
（
two places
）
２５
Input
Ｄ１ ８Ｓ
Channel selection signal
（
two places
）
２６
Input
ＲＥＳＥＴ
signal
２７
Input
ＭＯＤＥ
signal
２８
Input Setting clear signal
３４ ＧＮＤ ＧＮＤ
３５ ＧＮＤ ＧＮＤ
３６ ＧＮＤ ＧＮＤ
