ACCURA9/9L INSTRUCTION MANUAL

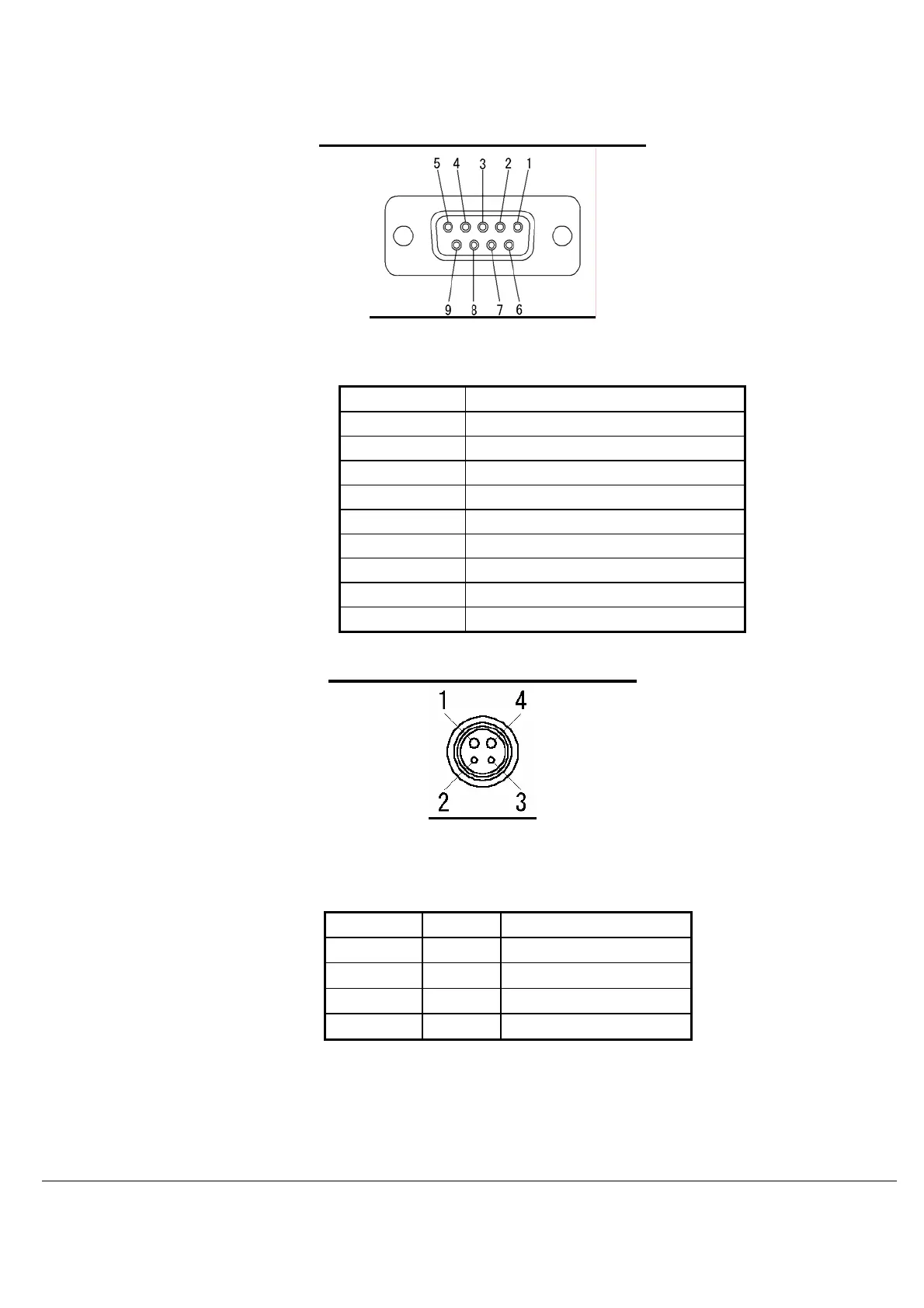

RS232C PORT PIN ARRANGEMENT

※

Connector is placed beside dispenser.

PIN No. Signal

１

ＦＧ

２

ＲＸＤ

３

ＣＴＳ

４

ＧＮＤ

５

Ｎ．Ｃ．

６

ＴＸＤ

７

ＲＴＳ

８

ＤＳＲ

９

ＤＴＲ

Control Connector Pin Arrangement

※ Connector is placed beside dispenser.

PIN No. In/Out Signal

１

Input Shot start signal

２

Input Shot start signal

３

Output Shot end signal

４

Output Shot end signal
