EPS Source
Product Scale Drawing
Frame Size: 80 mm x 49,5 mm
Original Scale Drawing (MTD)
P_MZ_e100_0093
Scale: 1:2
18
47
68,4
18
47
206
219
250
271
6,4 M12x1
LEDs
1
2

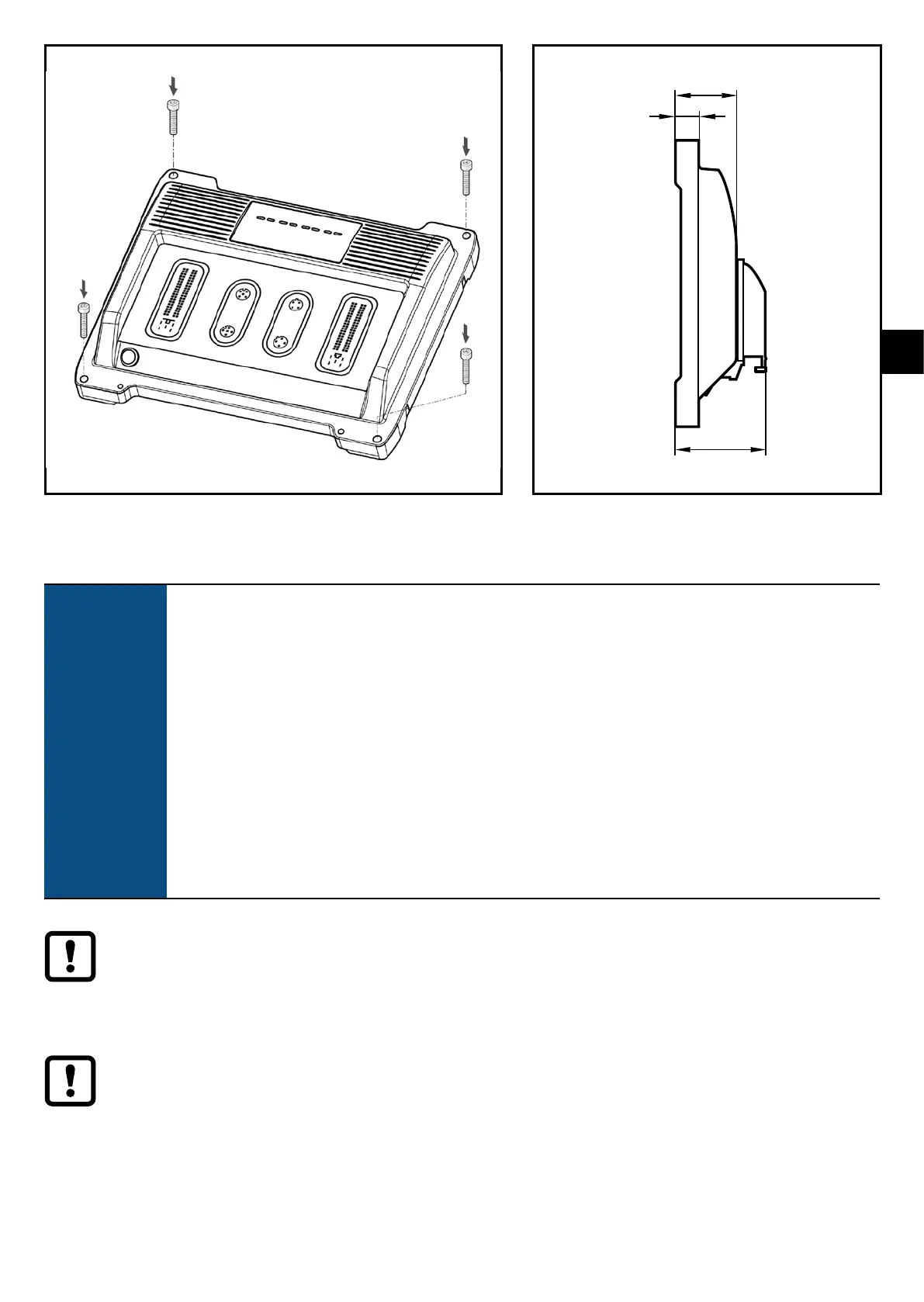

Installation Total height with the attached
connector
ATTENTION!
Contact corrosion between the mounting screws and the housing�
> Damage to the device
► Do not use stainless steel screws or nickel-plated screws�
► Use zinc-plated screws�
► In very corrosive environments such as extremely salty air, use
screws with surface finishing on a zinc/nickel basis with thick-
film passivation and sealing�
► Provide all outgoing cables with a strain relief 200 mm behind the cable
entry�
6 Electrical connection
► Disconnect the machine from the mains supply before installation; if
necessary, also disconnect any independently supplied input / output
load circuits�
► Observe the national and international regulations for the installation of
electrical equipment�
► Observe the requirements according to the standard EN 60204�
