3.2 System Overview with Installation Examples
3.2.1 Direct Connection
The U-Switch is connected to sources using the cables supplied. Keyboard and mouse are connected to
the U-Switch.

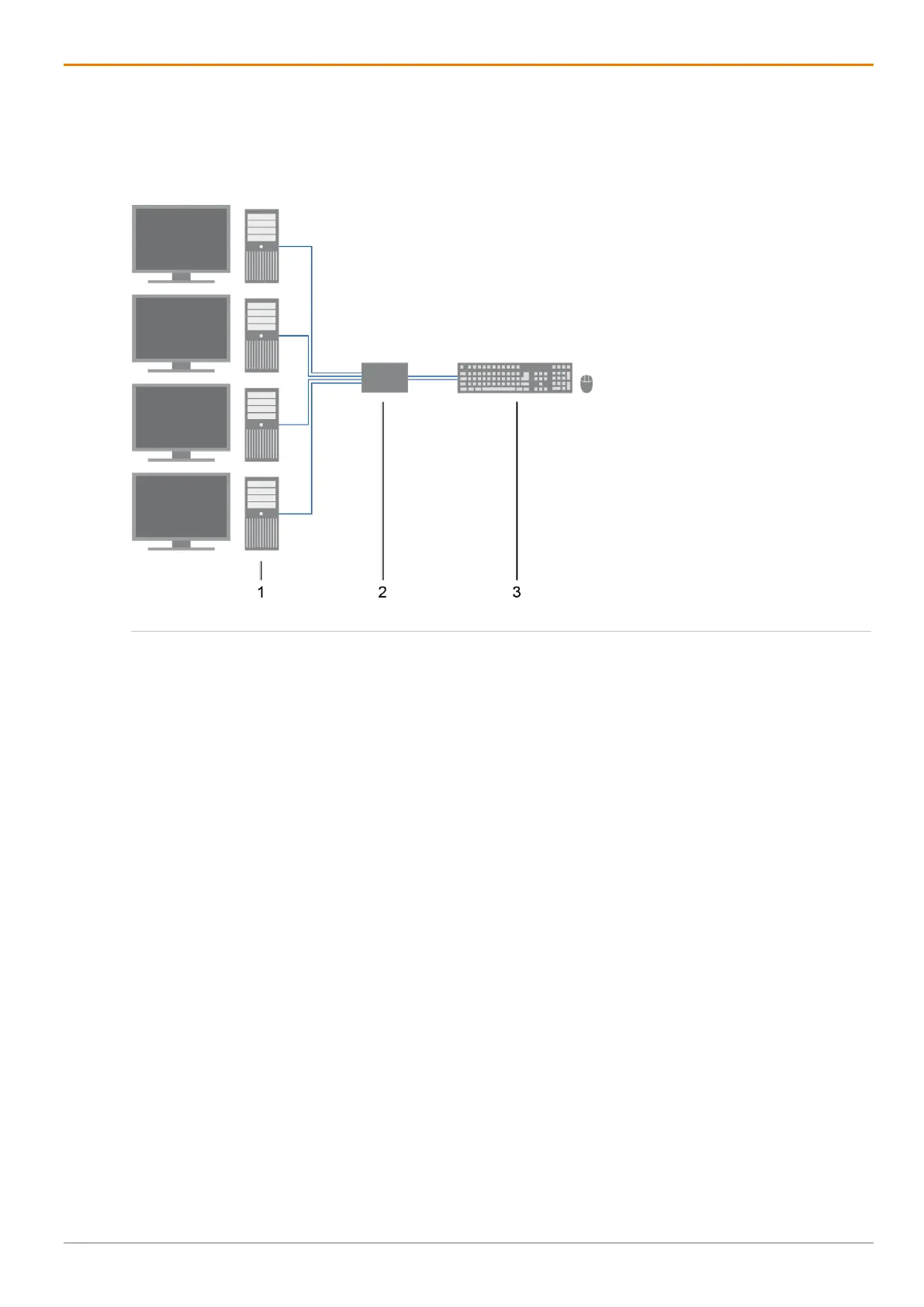

Fig. 1 System overview - Example direct source connection
1 Sources with connected monitors
2 U-Switch
3
Keyboard, mouse
