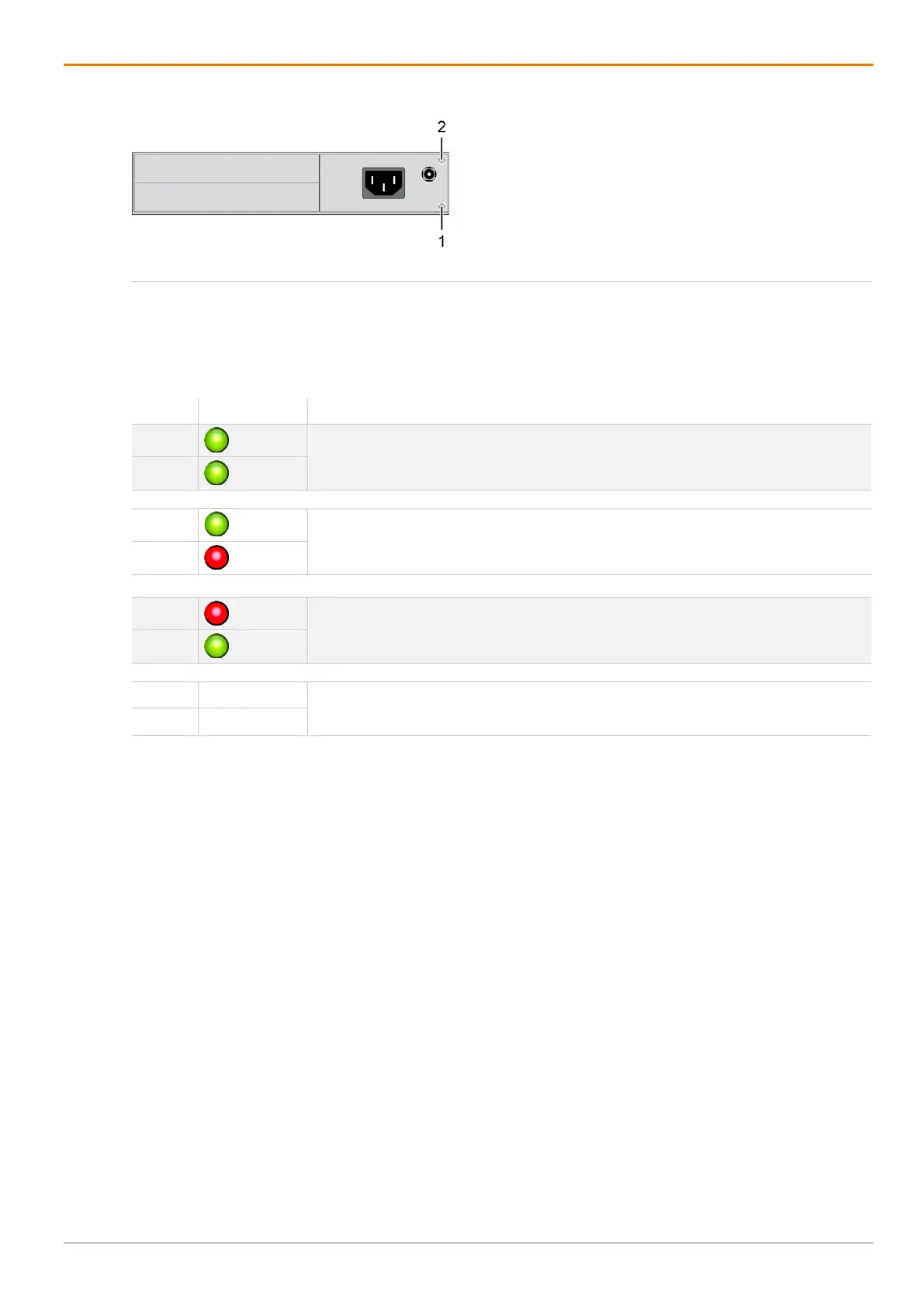

3.12.3 Status LEDs 2-Slot-Chassis Draco vario 474-BODY2N
Fig. 20 Interface side chassis 474-BODY2N - Status LEDs
1 Status LED power supply voltage 1
2 Status LED power supply voltage 2
Status LEDs for Power Supply Voltage
The following tables show the LED states/colors for the power supply voltage (see chapter 3.9.3, page 17).
Pos. LED Description
1
Green
Redundant power supply voltage available
2
Green
1
Green
No redundant power supply voltage available
2
Red
1
Red
No redundant power supply voltage available
2
Green
1 Off
No power supply voltage available
2 Off
