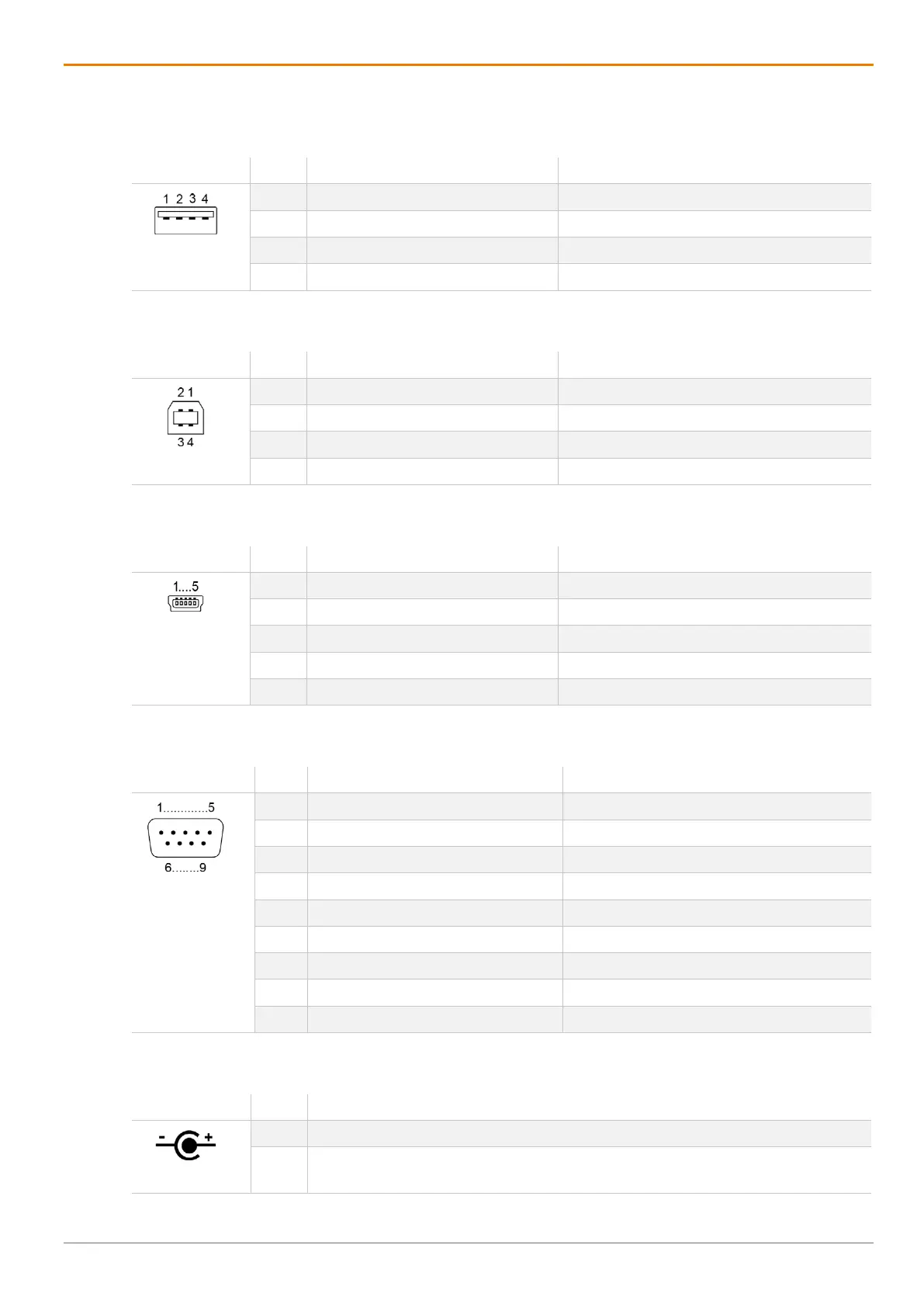

12.2 Connector Pinouts
12.2.1 USB, Type A
Connector Pin Signal Color
1 +5 V (DC) Red
2 D - White
3 D + Green
4 GND Black
12.2.2 USB, Type B
Connector Pin Signal Color
1 +5 V (DC) Red
2 D - White
3 D + Green
4 GND Black
12.2.3 Mini-USB, Type B
Connector Pin Signal Color
1
+5 V (DC)
Red
2 D - White
3 D + Green
4 Not connected -
5 GND Black
12.2.4 D-Sub 9 (GPIO)
Connector
Pin
Channel
Control
1 1 OUT for LED 1, ground
2 1 IN from push button 1
3 - +5 V (DC)
4 2 OUT for LED 2, ground
5 2 IN from push button 2
6
3
OUT for LED 3, ground
7 3 IN from push button 3
8 4 OUT for LED 4, ground
9 4 IN from push button 4
12.2.5 Power Supply Voltage
Connector Pin Signal
Inside +5 V (DC)
Out-
side
GND
