3.12 Status Indication of the Chassis
3.12.1 Status LED 2-Slot-Chassis Draco vario 474-BODY2

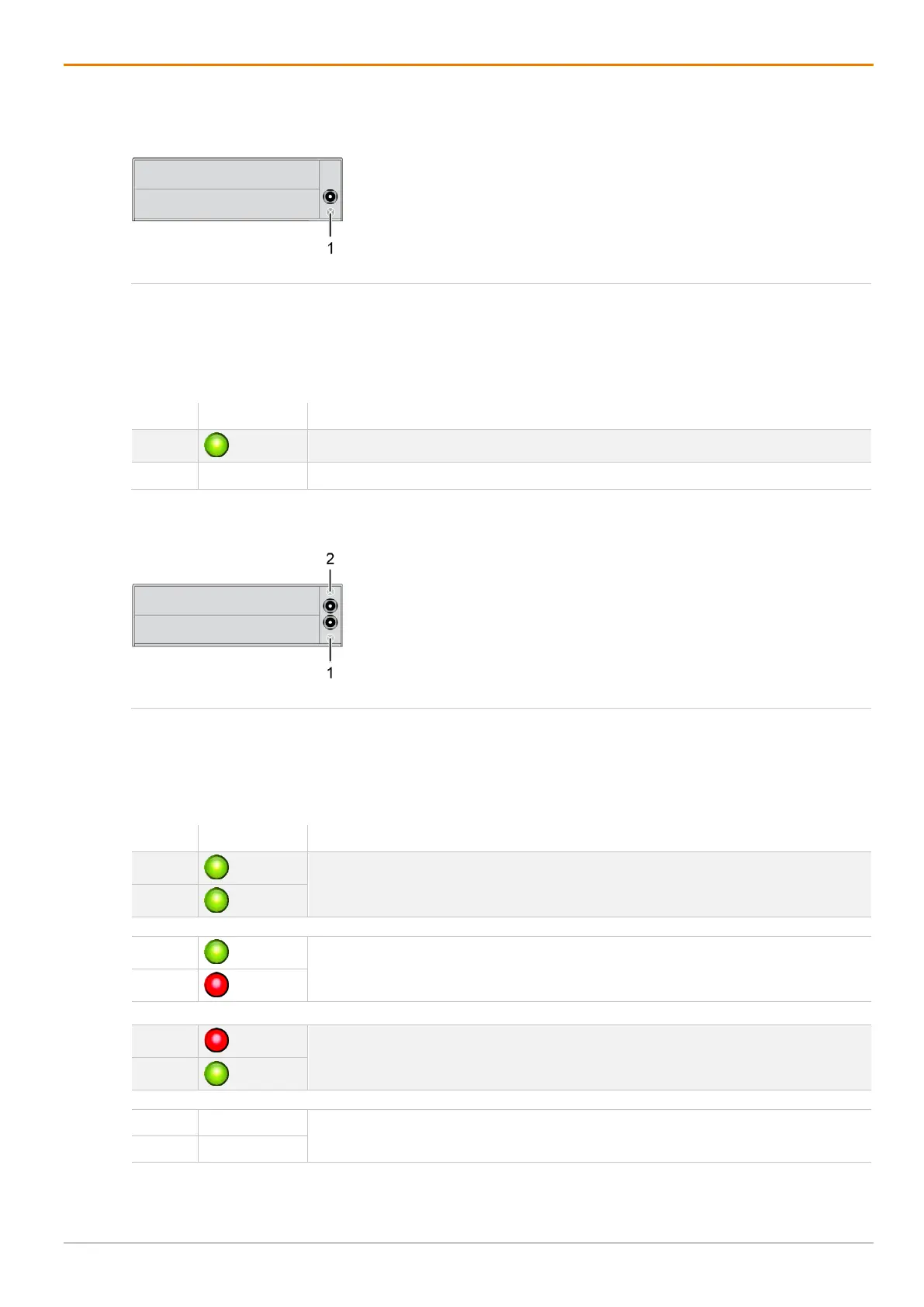

Fig. 18 Interface side chassis 474-BODY2 - Status LED
1 Status LED supply voltage 1
Status LED for Power Supply Voltage
The following table shows the LED states/colors for the power supply voltage (see chapter 3.9.1, page 16).
Pos. LED Beschreibung
1
Grün
Power supply voltage available
2 Aus No power supply voltage available
3.12.2 Status LEDs 2-Slot-Chassis Draco vario 474-BODY2R
Fig. 19 Interface side chassis 474-BODY2R - Status LEDs
1 Status LED power supply voltage 1
2 Status LED power supply voltage 2
Status LEDs for Power Supply Voltage
The following tables show the LED states/colors for the power supply voltage (see chapter 3.9.2, page 16).
Pos. LED Description
1
Green
Redundant power supply voltage available
2
Green
1
Green
No redundant power supply voltage available
2
Red
1
Red
No redundant power supply voltage available
2
Green
1 Off
No power supply voltage available
2 Off
