IK Multimedia UNO Synth User Manual

UNO Synth
4 – Front panel interface
14

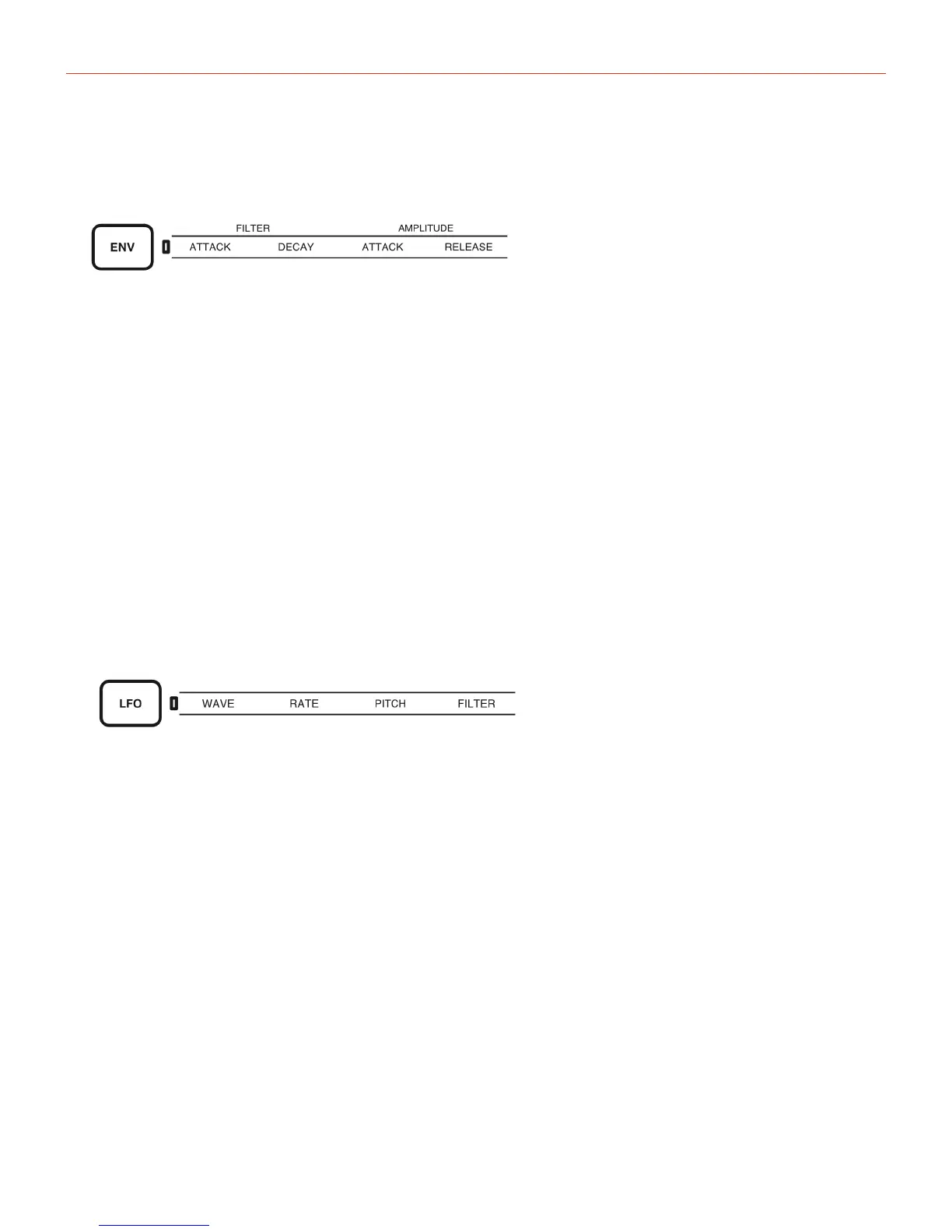

4.1.3–EnvelopeRow
Envelopesaremodulationsourcesinasynthesizerthatcreateshapesthatchangethefiltercutofffrequency,the
amplitude(volume)oreventheoscillatorshape.
TheUNOSynthhastwoseparateenvelopes,oneforthefilterandonefortheamplitude(volume).Thepanel
providesAttackandDecaycontrolsfortheFilterEnvelopeandAttackandReleasecontrolsfortheAmplitude
Envelope.

FullADSRcontrolsareeditableviaMIDIcontinuouscontrollers(MIDICC).SeetheUNOSynthMIDI
ImplementationChartforthespecificCCnumbers.
4.1.4–LFORow
LFOstandsforLowFrequencyOscillator.TheLFOisacyclicalmodulationsourcethatcanmoduletheoscillator
pitchorshape,thefiltercutofffrequencyandtheamplitudeofthesynth.

TheUNOSynthLFOisnotonlyawaytocreatemovingsoundtextures,it’salsothesourceforauser-friendly
performancetoolwithinstantarticulationeffects.
Thereare7LFOwaveforms:Sine,Triangle,FallingSawtooth,RisingSawtooth,Square,RandomandSample-
and-Hold.
TherateoftheLFOgoesupto30Hzandcanbesettofreerunortosyncwiththemastertempousingjustone
knob:Thefirst75%oftheknob’stravelsettheindependentfreerunspeedoftheLFO,andthelast25%ofthe
knob’stravelsyncstheLFOtothemastertempousingnotevaluesstartingwith1/1(wholenote)andcontinuing
with½(halfnote),¼(quarternote),1/4d(dottedquarternote),1/4t(quarternotetriplet),1/8,1/8d,1/8t,1/16,
1/16dand1/16t.

IK Multimedia UNO Synth Specifications

General

Type	Analog
Polyphony	Monophonic
LFO	1 LFO
Effects	Delay
Sequencer	16-step sequencer
Connectivity	MIDI In/Out, USB
Power	USB power or 4x AA batteries
Dimensions	25.6 x 15 x 4.9 cm
Weight	400 g
Oscillators	2 x VCO with continuously variable waveshape: triangle, sawtooth, pulse with PWM
Filter	2-pole resonant multimode filter (LP/HP/BP)
Keyboard	27 capacitive touch keys
