IK Multimedia UNO Synth User Manual

UNO Synth
1- Installation and setup
7
1 – Installation and setup
Pleasenote:Topreventmalfunctionandequipmentfailure,alwaysturndownthevolumeandturnoffallthe
unitsbeforemakinganyconnections.
UNOSynthcanbepoweredbytheUSBbusorbyinternalAAbatteries.
USB:WhenconnectedtoanUSBhost(MAC,Windows),alltherequiredpoweristypicallyprovidedbythehost.
Iftheconnectedhostisnotcapabletoprovidetherequiredpower,batteriesmaybeneeded(forexample,using
aniOSdevicewithacameraconnectionkit).
IMPORTANT:IfthepowerswitchissettoUSBandbatteriesarepresent,thesynthwillbepoweredbythe
batteriesevenwhenconnectedtoaUSBhostthatcanprovideenoughpower.

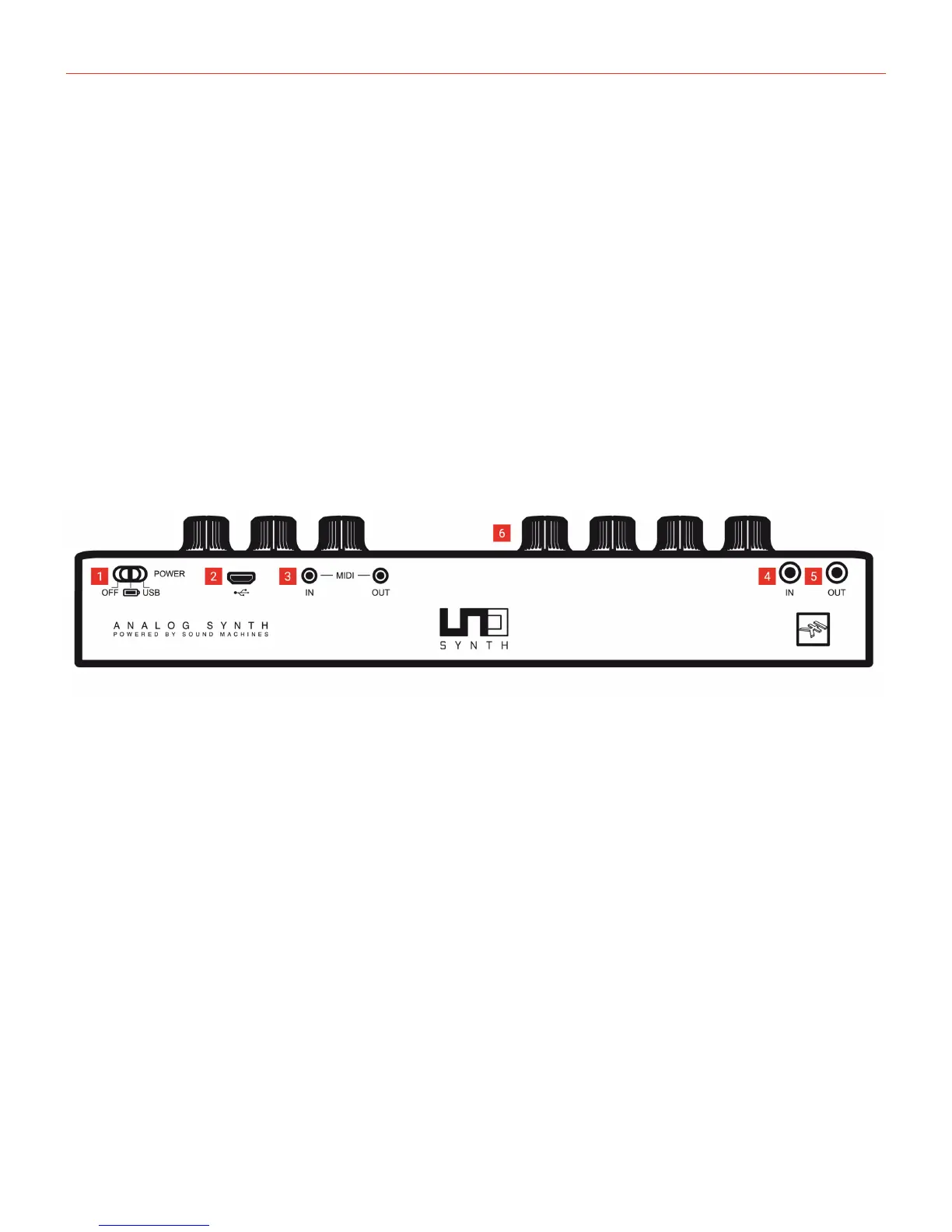

1 - Power switch
Thisswitchturnsthepoweronandoff.Theunitcanbepoweredby4AAbatteriesorbyUSB.
Ni-MHbatteriesaretestedtolastforabout4hoursofcontinuoususe,whileAlkalinebatterieslastabout3hours
ofcontinuoususe.
2 - Micro USB port
ConnecttheUNOSynthtoaHostsuchasaMac/PCoraniOSdevicewithaLightningtoUSBCameraAdapter
orpowersupply(forexampleaUSBpoweradapterorUSBpowerbank).
3 - MIDI IN/OUT ports
TheMIDIportsworkswiththeincluded2.5mmmicroplugstoMIDIDINadapters.
4 - Audio IN
ConnectanotherUNOunitoranyexternalmonoaudiosource.

IK Multimedia UNO Synth Specifications

General

Type	Analog
Polyphony	Monophonic
LFO	1 LFO
Effects	Delay
Sequencer	16-step sequencer
Connectivity	MIDI In/Out, USB
Power	USB power or 4x AA batteries
Dimensions	25.6 x 15 x 4.9 cm
Weight	400 g
Oscillators	2 x VCO with continuously variable waveshape: triangle, sawtooth, pulse with PWM
Filter	2-pole resonant multimode filter (LP/HP/BP)
Keyboard	27 capacitive touch keys
