6.2. SETTING TYPE OF MOVABLE COLLIMATOR
X-ray unit features the following movable collimators:
- Rectangular 35x45 mm (only with ball joint)
- Round ø55 mm
- Rectangular 31x41 mm (to apply on round collimator ø55 mm)
- Rectangular 22x35 mm (to apply on round collimator ø55 mm)
NOTE: For an ideal use of the x-ray unit, set the collimator depending on the type used.
To set the type of collimator, press keys and to go to the set-up menu.
Scroll the parameters up to parameter P07 and press key . Scroll the options to find the type of collimator used
and then press key .
Press key to quit the setup menu.
6.3. RESTORING FACTORY SETTINGS

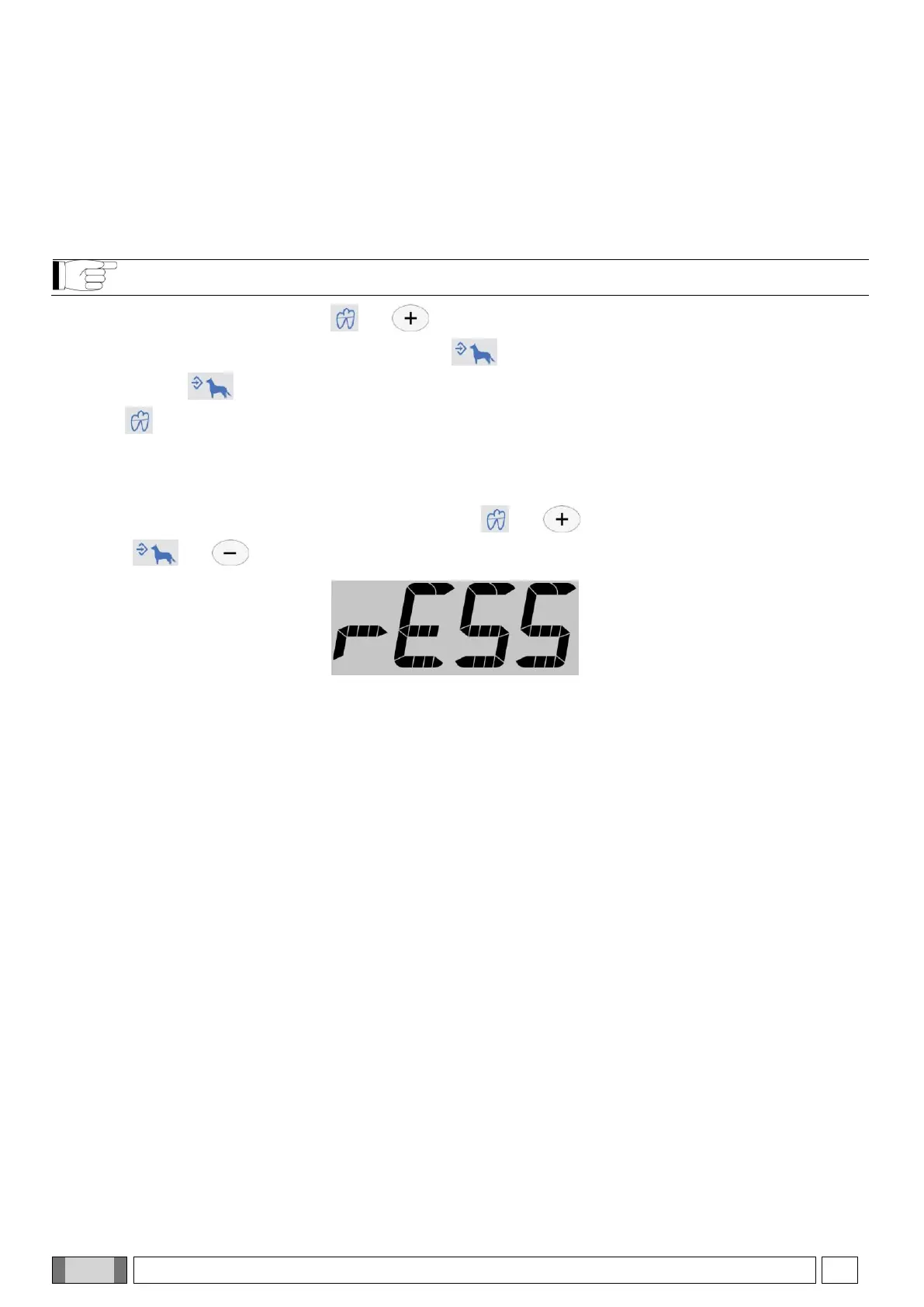

To restore the factory settings (see paragraph 4.4) press keys and to go to the set-up menu.
Press keys and simultaneously. “rESS” will briefly appear and the handheld will be rebooted.
