OPERATOR'S MANUAL
33

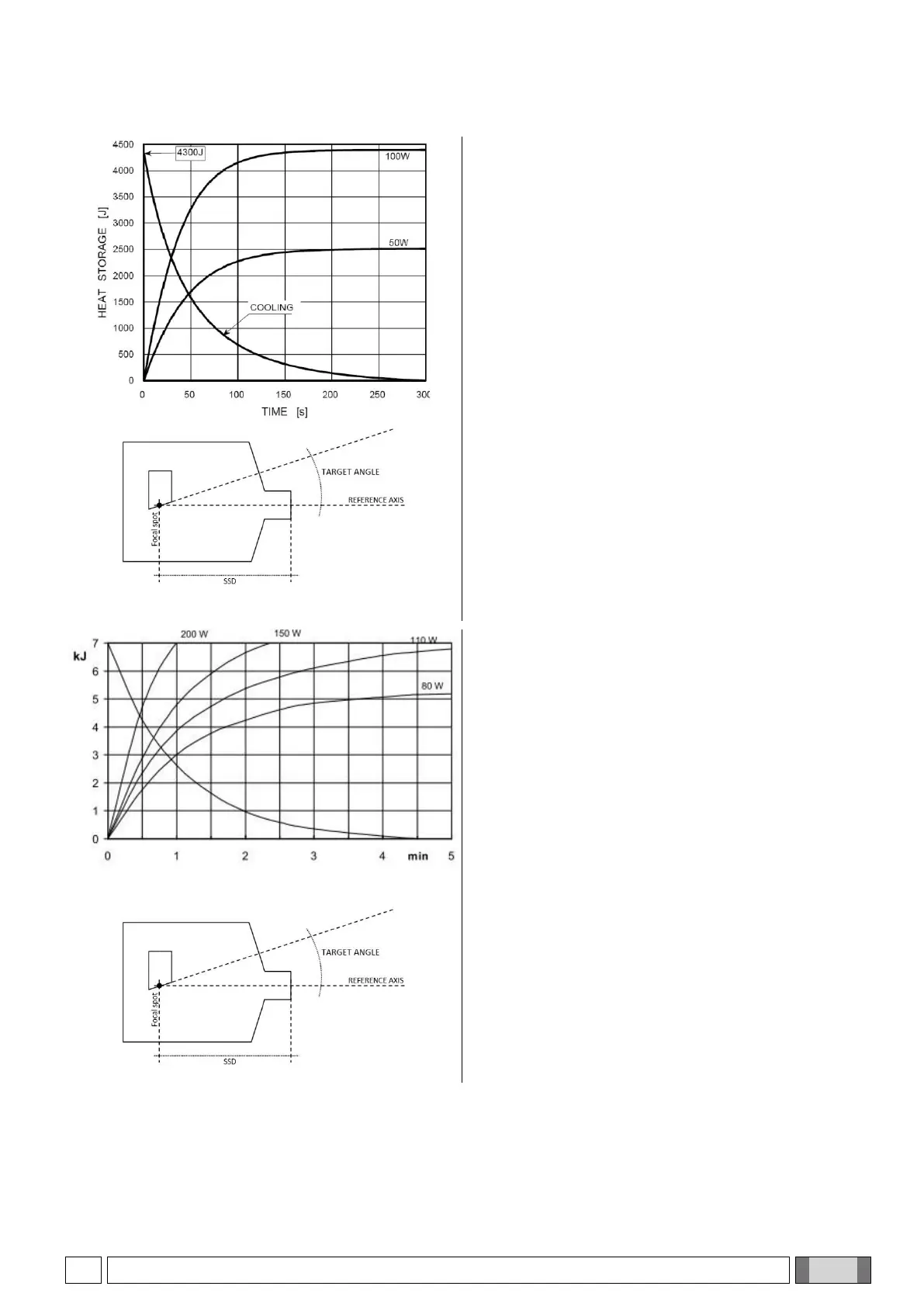

11.1. X-RAY TUBES
X-RAY TUBE TOSHIBA D-041, TOSHIBA D-045, Kailong
KL11-0,4-70
- Anode inclination: 12.5° (with TOSHIBA D-041,
TOSHIBA D-045)
- Anode inclination: 12° (with Kailong KL11-0,4-70)
- Anode thermal load: 4.3 KJ
X-RAY TUBE CEI OX/70-3
- Anode inclination: 13°
- Anode thermal load: 7 KJ
- Maximum continuous heat dissipation: 100 W.
- Operating cycle: 1:60 (1 second exposure - 60
seconds pause time).
